Installation Loudspeakers

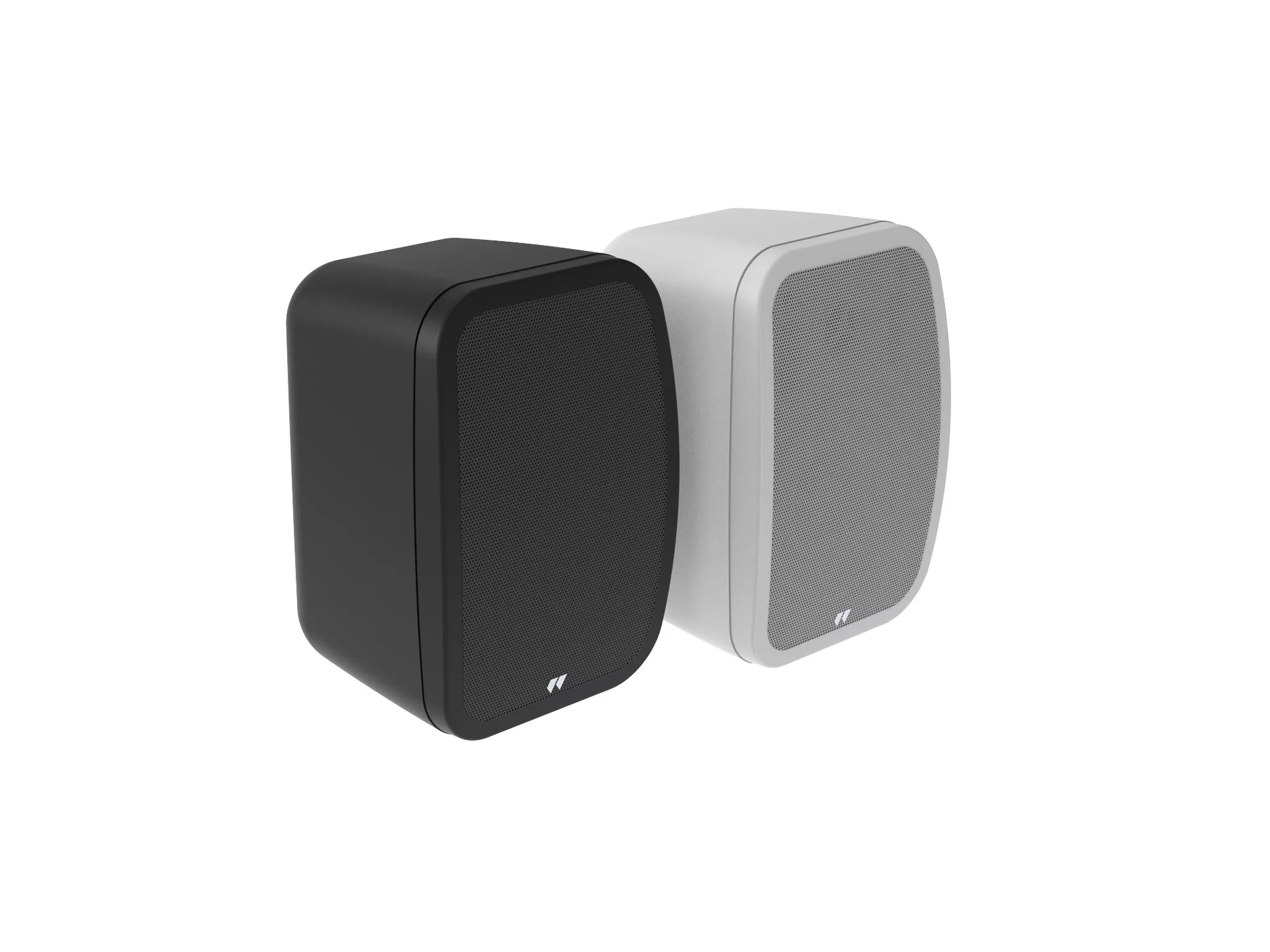

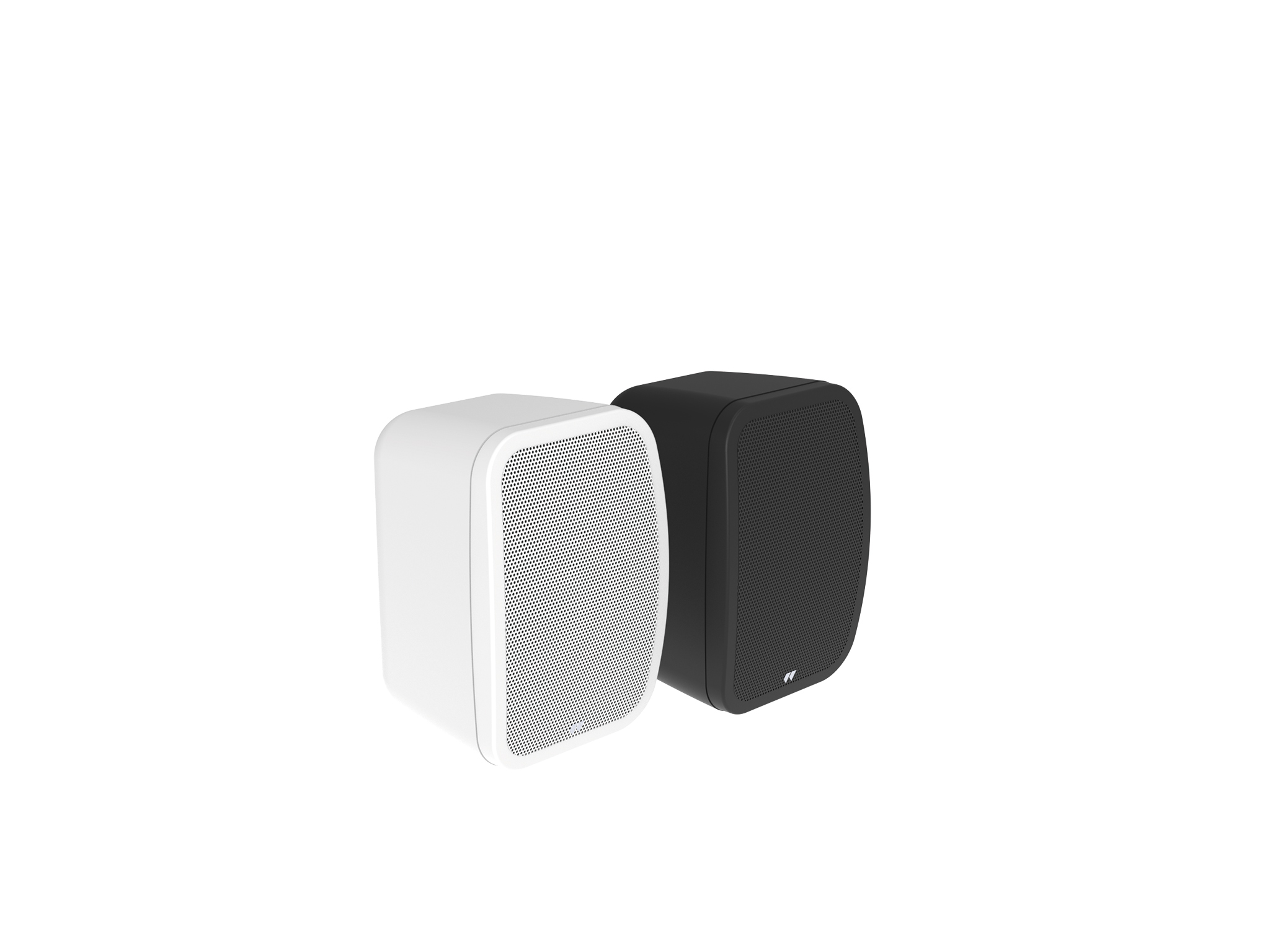

NEO 5 IP
#50EBS131
#50EBS130
Passive loudspeaker 40 W @ 8 Ohm, 16/8/4/2 W L100V. 5.25'' Woofer + 0.5'' Tweeter. IP 65. Sold in pairs.

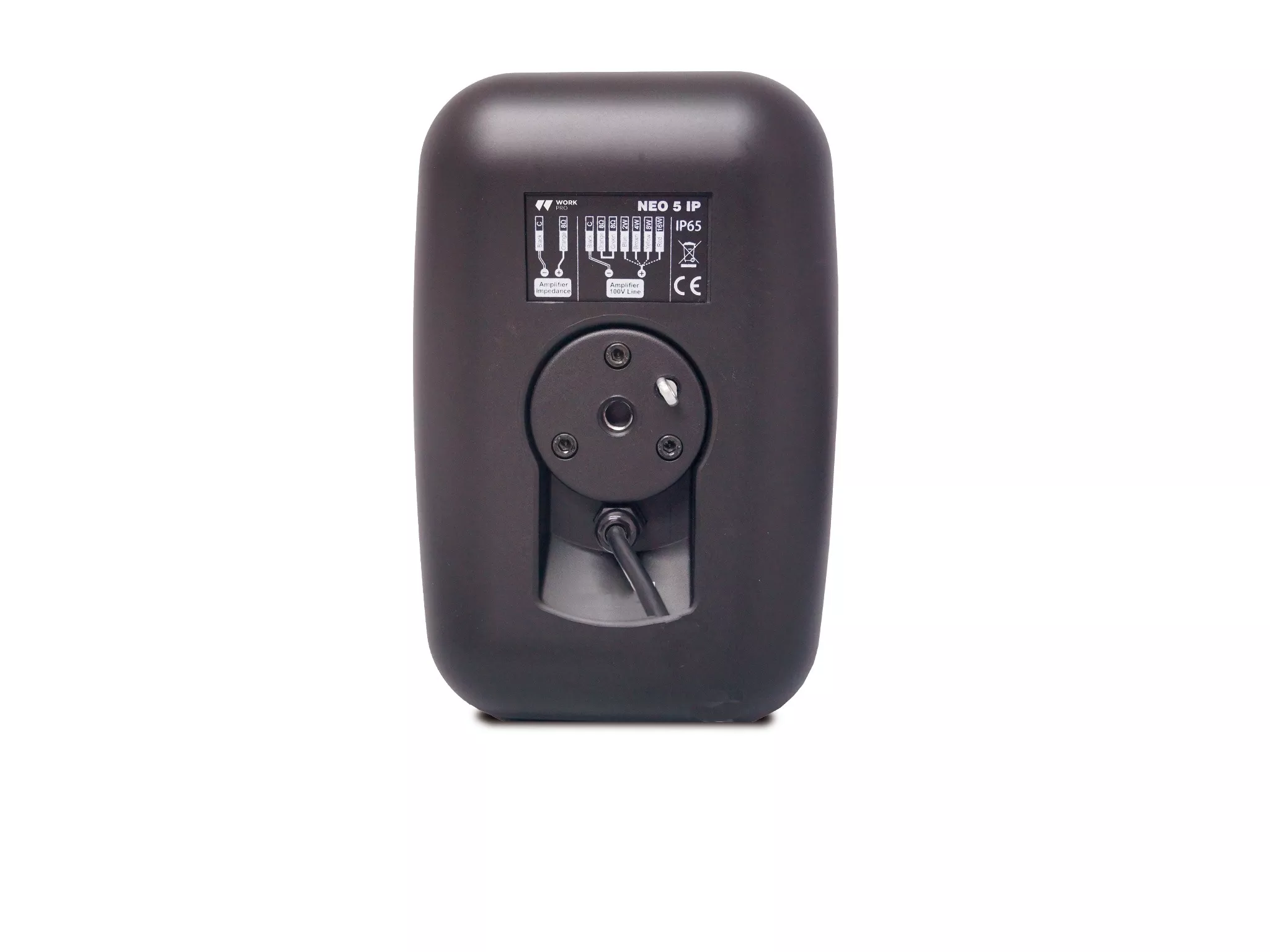

With an IP protection factor of 65, NEO 5 IP guarantees installations in outdoors with heavy rains, which are a very demmanded feature for this kind of surface mounted loudspeakers. Technical specs are identical to NEO 5 except for the rear connection which has been changed to a cable with the different power taps.
Sold in pairs (passive + passive).
Main information
- Suitable for high and low impedance installations.
- IP 65
- Wall brackets included.
- Price per couple.
Product main measures (m)
0.17 x
0.17 x
0.24
| Type | 2 vías. Pasivo/ 2 ways. Passive |
| Low Impedance Power | 40 W @ 8 Ohm |
| L100V Power | 16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm, 2 W @ 5 KOhm |
| L70V Power | 8 W @ 625 Ohm, 4 W @ 1k25 Ohm, 2 W @ 2k5 Ohm, 1 W @ 5 KOhm |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 5.25" Woofer |
| HF Transducer | 0.5" Tweeter |
| Sensitivity (1W @ 1m) | 88 dB |
| SPL Max | 100 dB |
| Coverage Angle (H x V) | 90º x 70º |
| Frequency Range | 60 Hz - 20 KHz |
| Connections | Insulated terminals |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP 65 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.17 | 0.17 | 0.24 | 2.30 |
| Box | 0.20 | 0.37 | 0.32 | 5.40 |
| Master Carton | 0.39 | 0.41 | 0.67 | 24.00 |
