Installation Loudspeakers

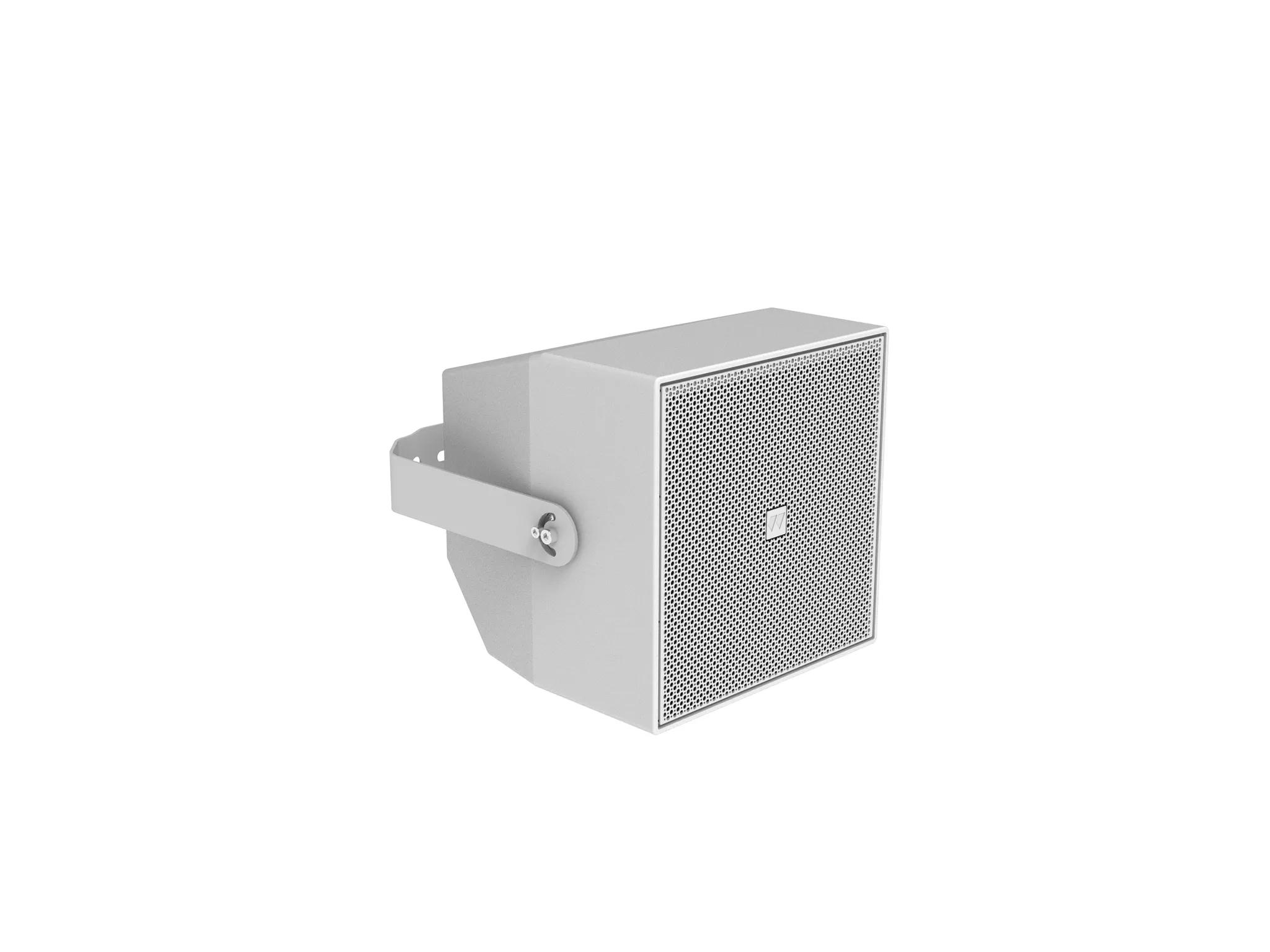

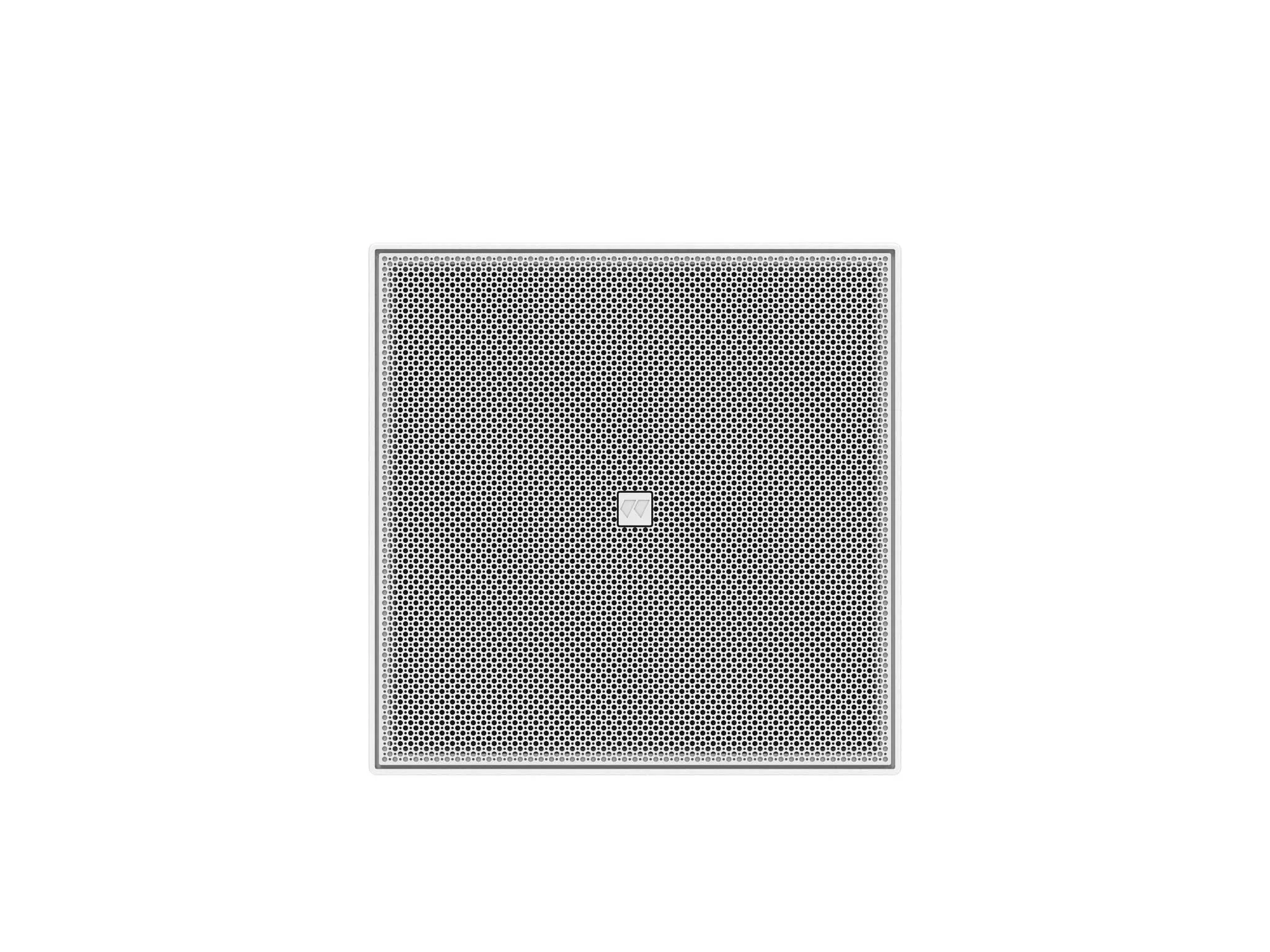

ARENA 8 CX
#50ARE008
Full range 8” 360W Waterproof IP54 coaxial speaker

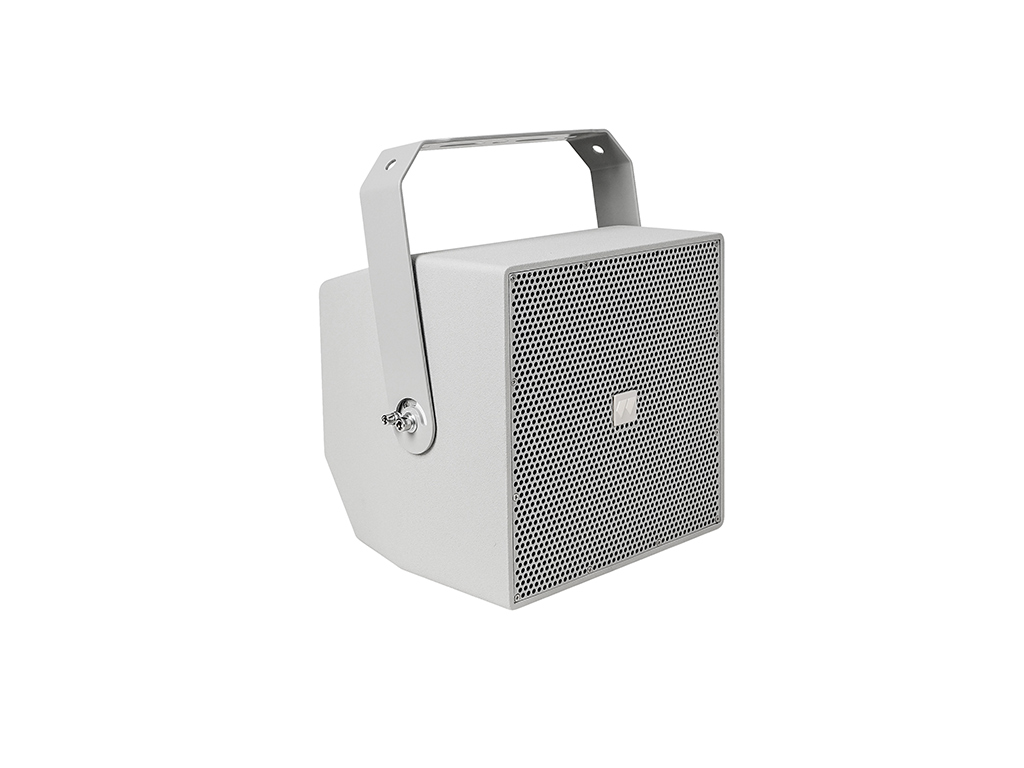

The ARENA 8 CX, 8'' compact coaxial loudspeaker, provides 360W @ 8 Ohm and can be integrated into 70/100V line installations, it is designed to provide high quality sound reproduction in applications requiring extreme weather resistance. Its water-resistant polyvinyl construction, hydrophobically treated grille, moisture-sealed crossover and waterproof connector make it reliable under prolonged exposure to harsh environmental conditions.
Ideal for stadiums fairgrounds, outdoor entertainment centers, athletic fields, swimming pools background music, worships, multipurpose outdoor and indoor venues, etc.
Main information
- Customized high performance woofer & compression driver.
- Built-in 70V/100V transformer with power tap switch.
- Water resistant polyvinyl board with quality textura coating.
- Hidrophobically-treated Grill. Waterproof strip connector.
| Type | Waterproof coaxial speaker |
| Low Impedance Power | 180W RMS |
| L100V Power | 120W/60W/30W |
| L70V Power | 120W/60W/30W/15W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 1 x 8" |
| HF Transducer | 1 x 1" |
| Sensitivity (1W @ 1m) | 100dB |
| SPL Max | 128dB |
| Coverage Angle (H x V) | 110° x 110° |
| Frequency Range | 75Hz – 20KHz |

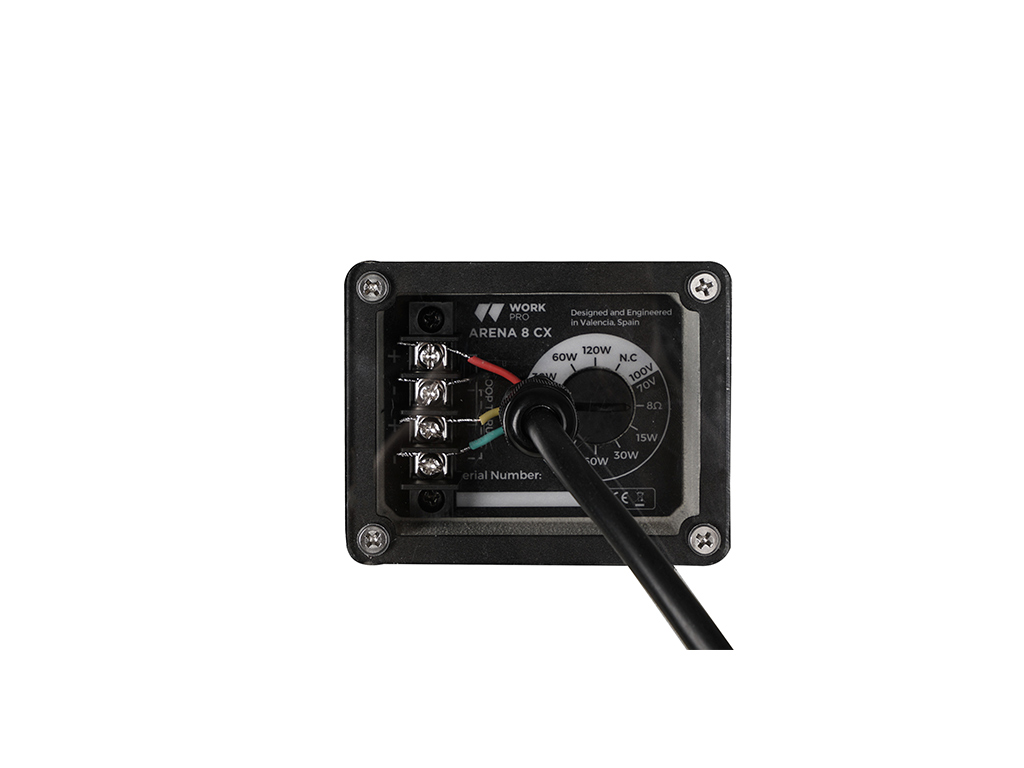

| Connections | Conector Waterproof 4 pins |
| Enclosure material | Water-resistant polyvinyl |
| Grill | Steel with anti-corrosion coat |

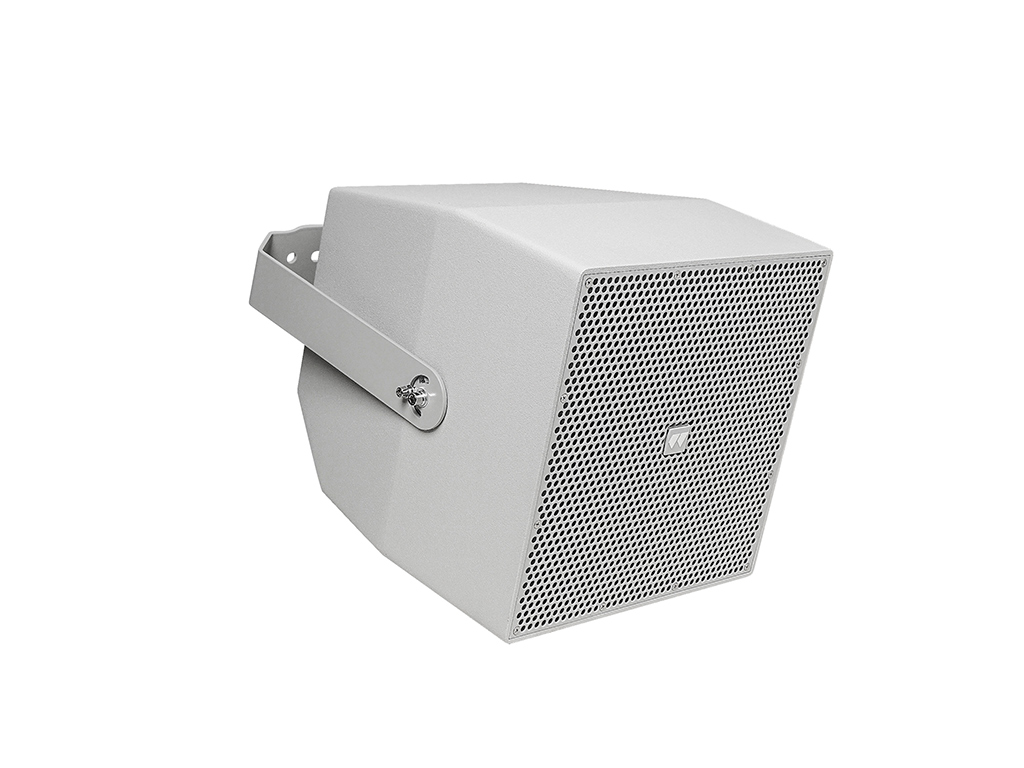

| Inserts / Rigging | U Bracket |
| IP Protection | IP 54 |
