Installation Loudspeakers
NEO 5
#50EBS112
#50EBS113
Passive loudspeaker 40 W @ 8 Ohm, 16/8/4/2 W @ L100V. 5.25'' Woofer + 0.5'' Tweeter. Sold in pairs.

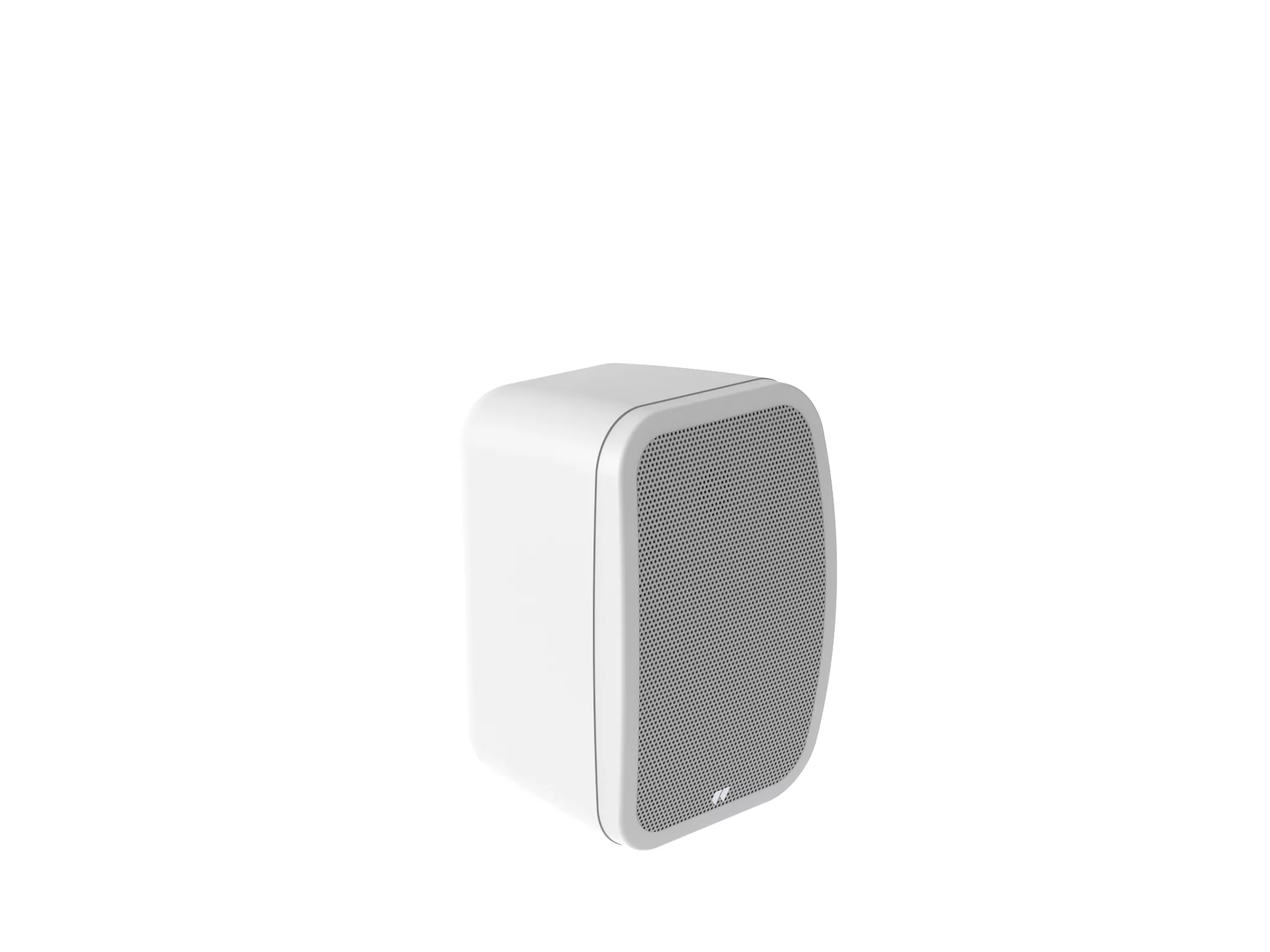

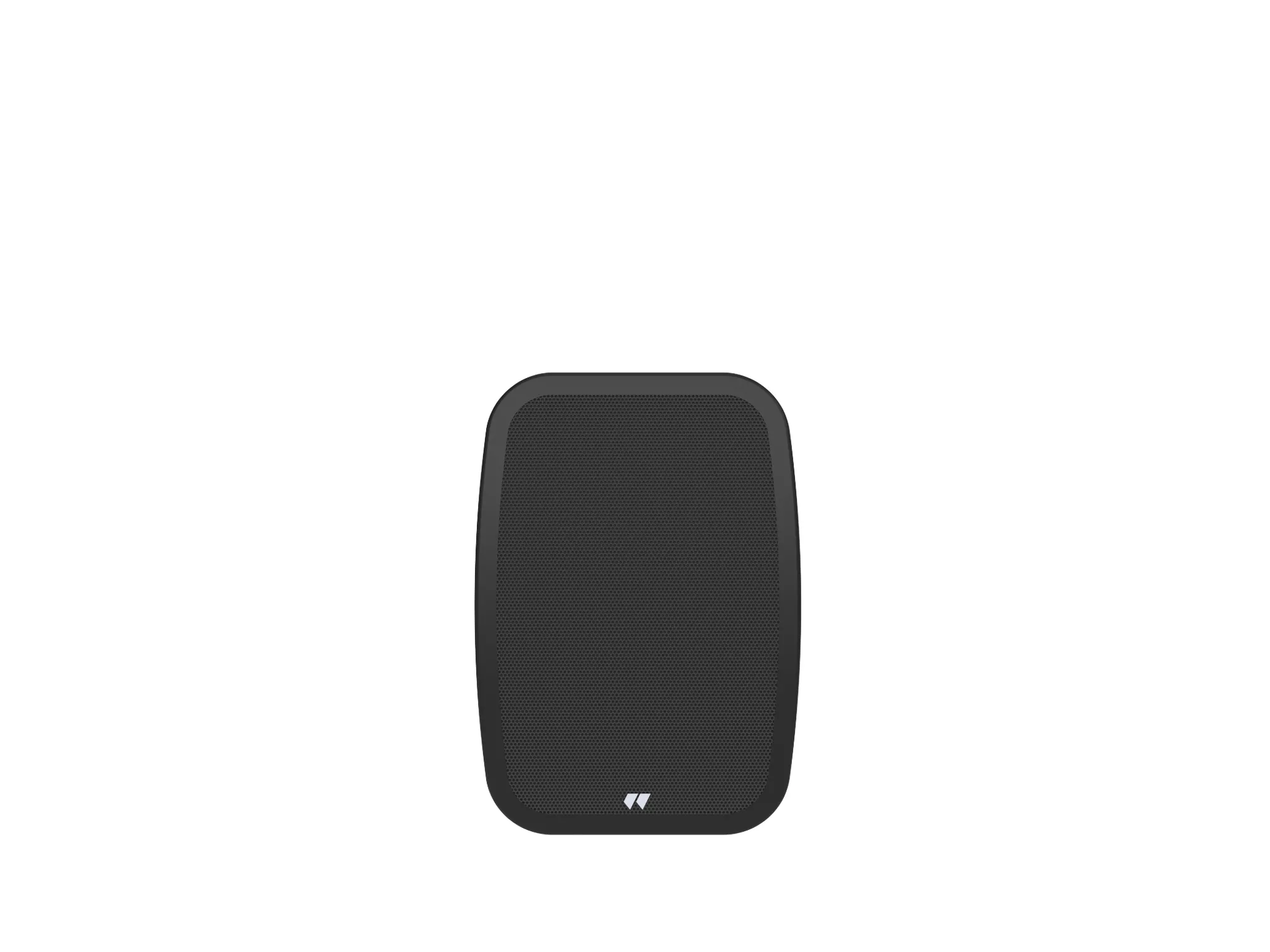

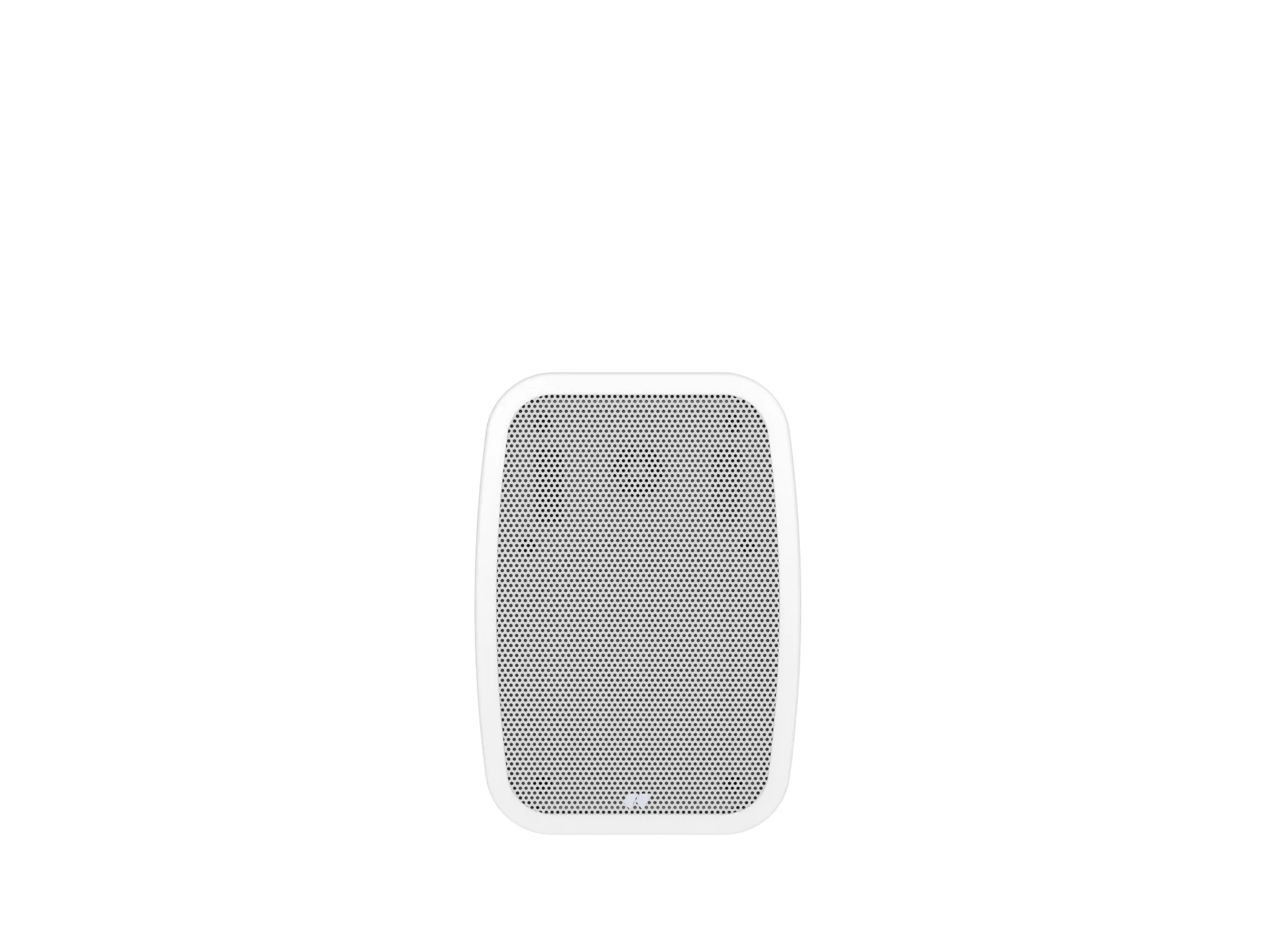

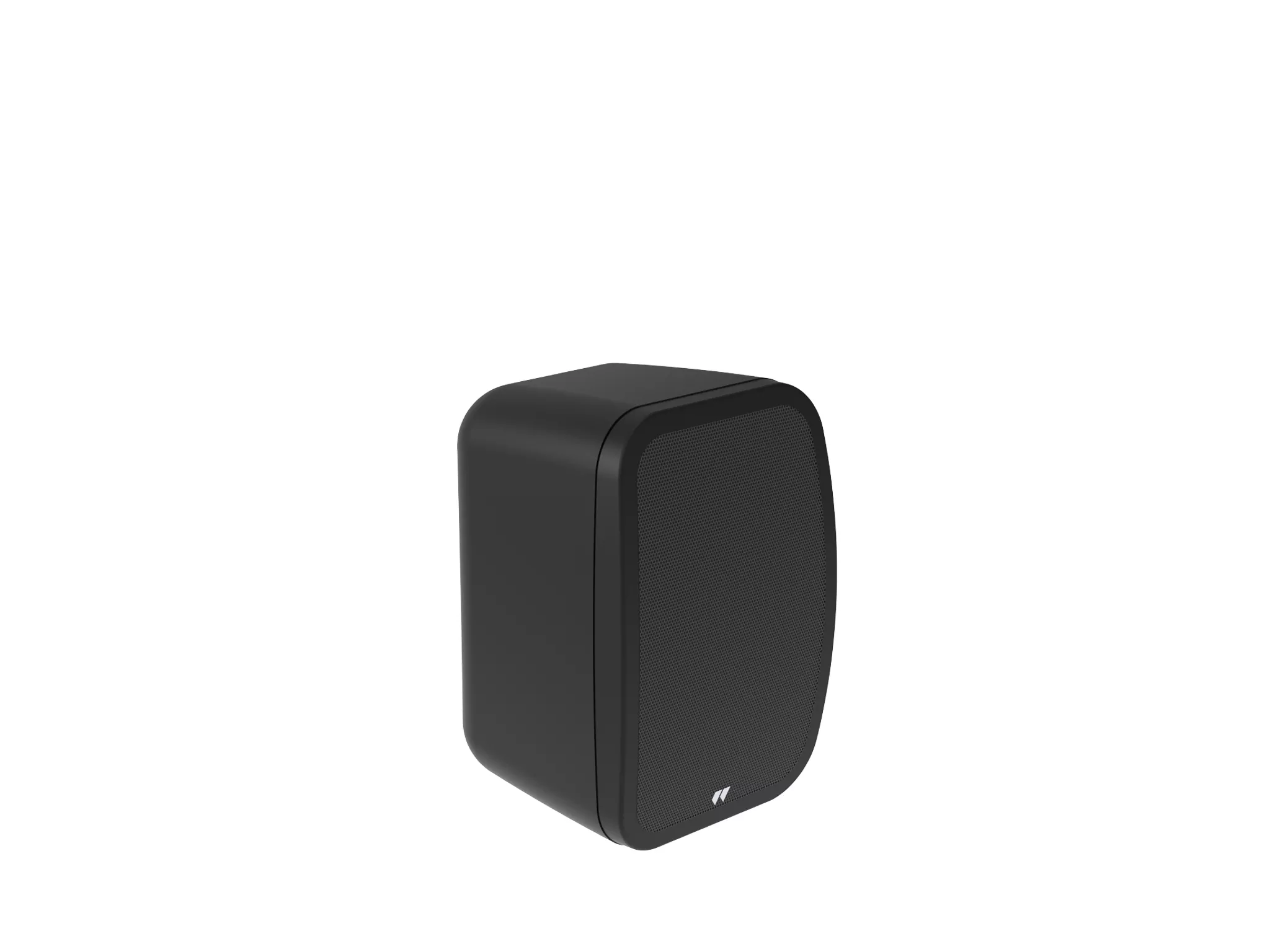

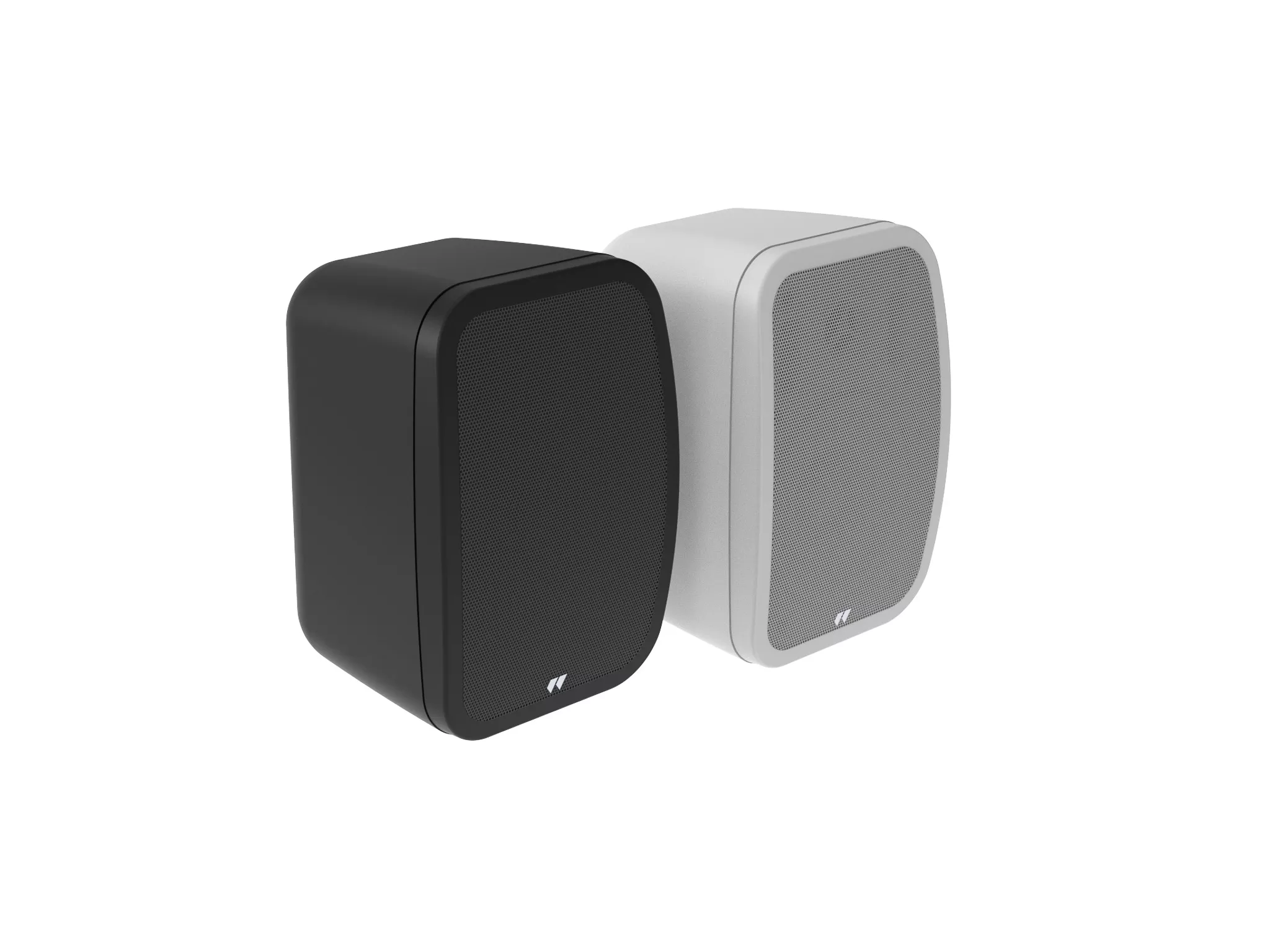

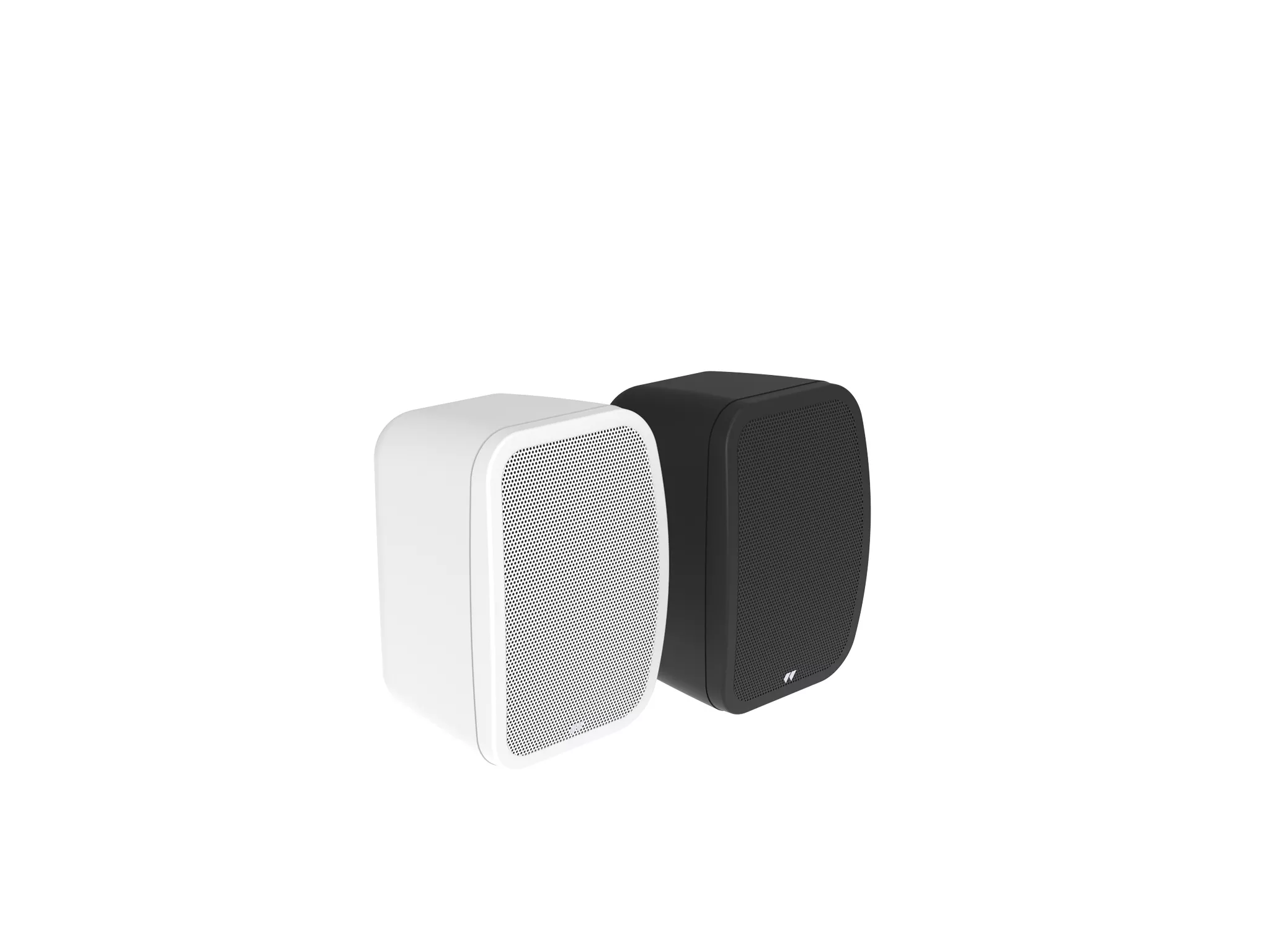

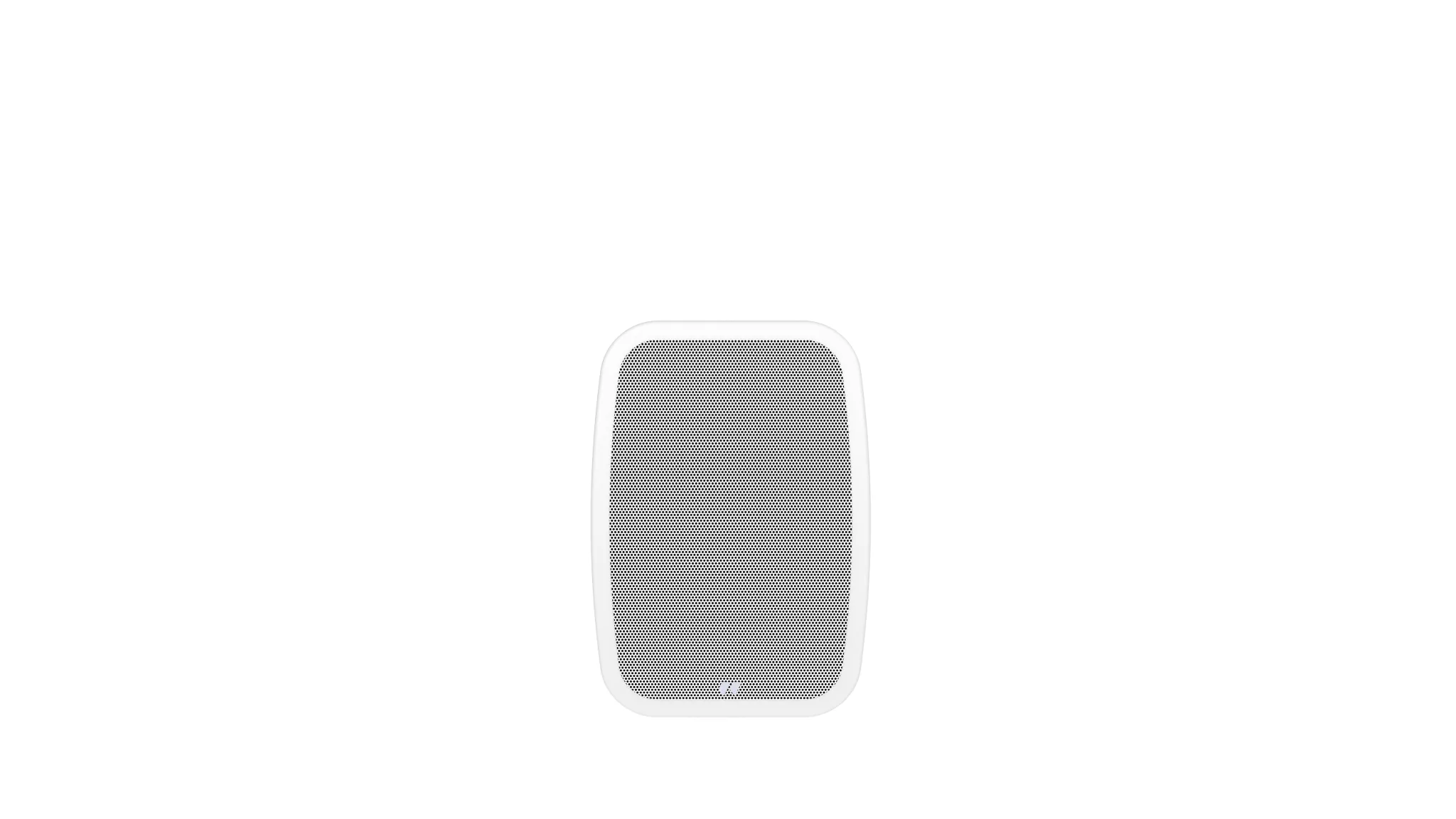

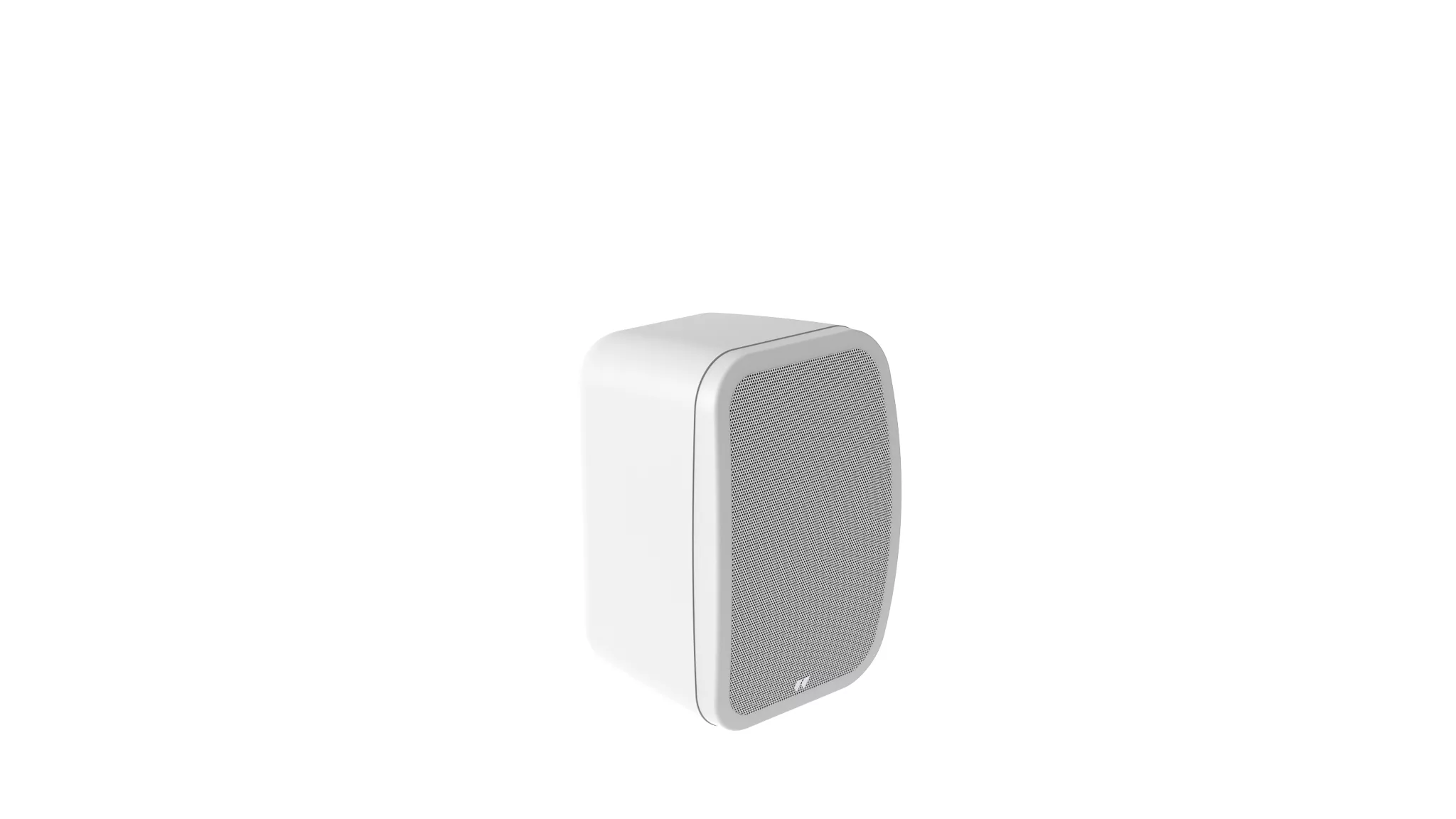

NEO 5 is a 2-way loudspeaker made of ABS plastic and white or black aluminum grille. It is composed of a 5.25'' woofer and a 0.5'' tweeter.

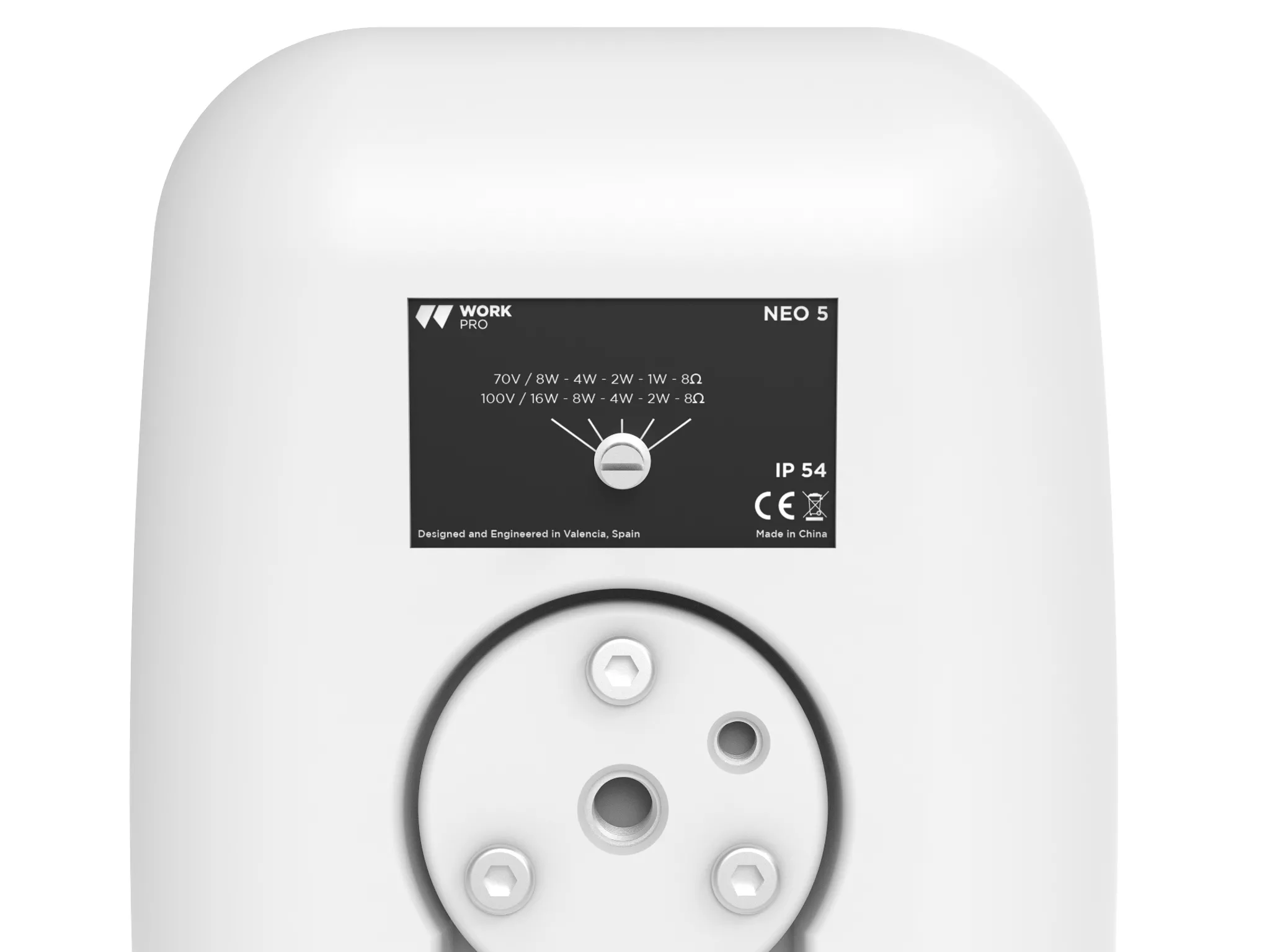

It stands out especially for the possibility of its use both in 70/100 V installations and in low impedance installations. When a loudspeaker is connected at low impedance the audio does not pass through the transformer in order to maintain a high level of quality.
NEO 5 is also very simple and quick to install, thanks to the new bracket designed exclusively for this model, which also allows a quick orientation of the box on both axes.
Sold in pairs (two passive boxes).
Main information
- Suitable for high and low impedance installations.
- Wall brackets included.
- Price per couple.

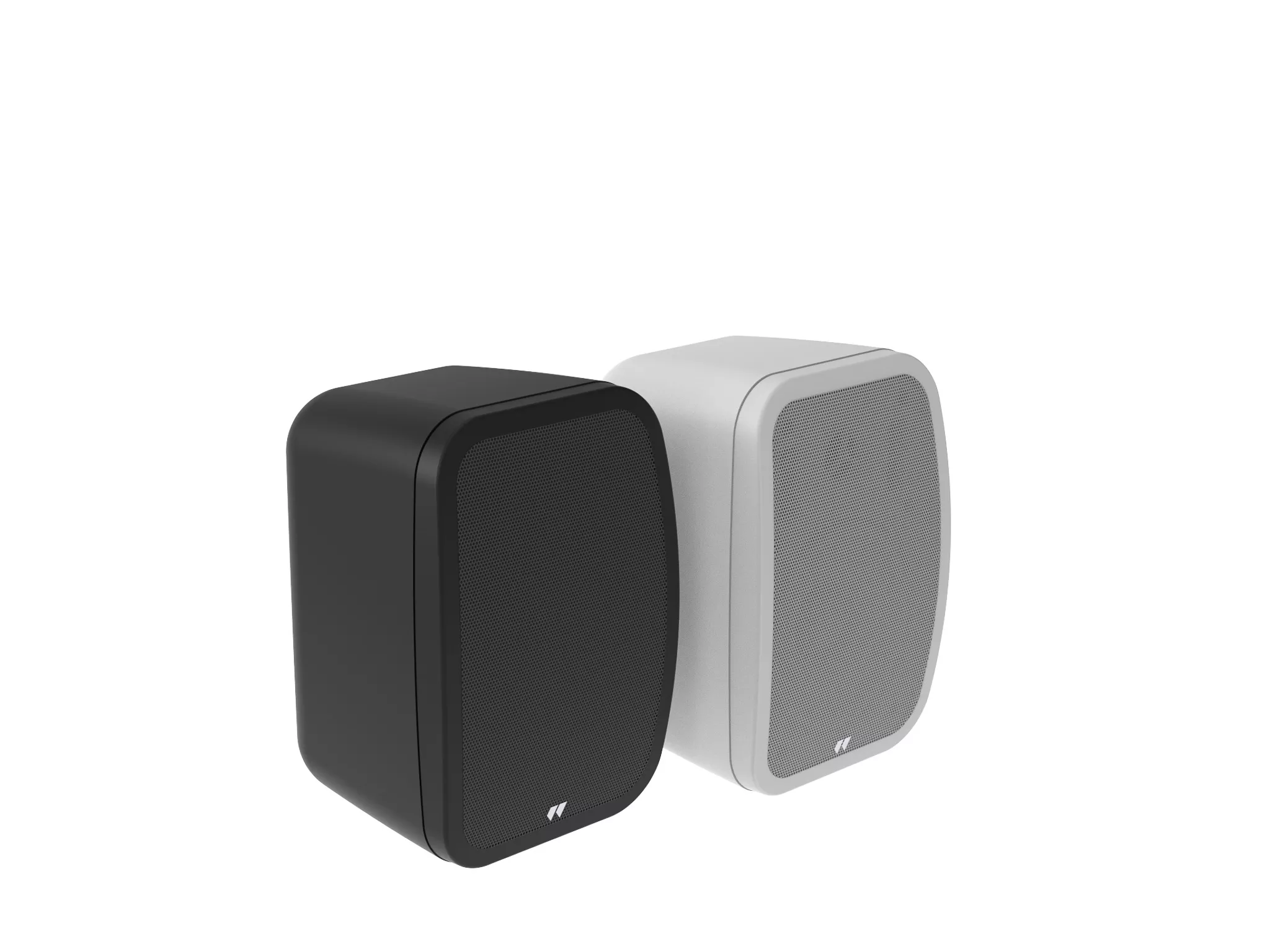

- Black and white colour.
Product main measures (m)
0.17 x
0.17 x
0.24
| Type | 2 vías. Pasivo/ 2 ways. Passive |
| Low Impedance Power | 40 W @ 8 Ohm |

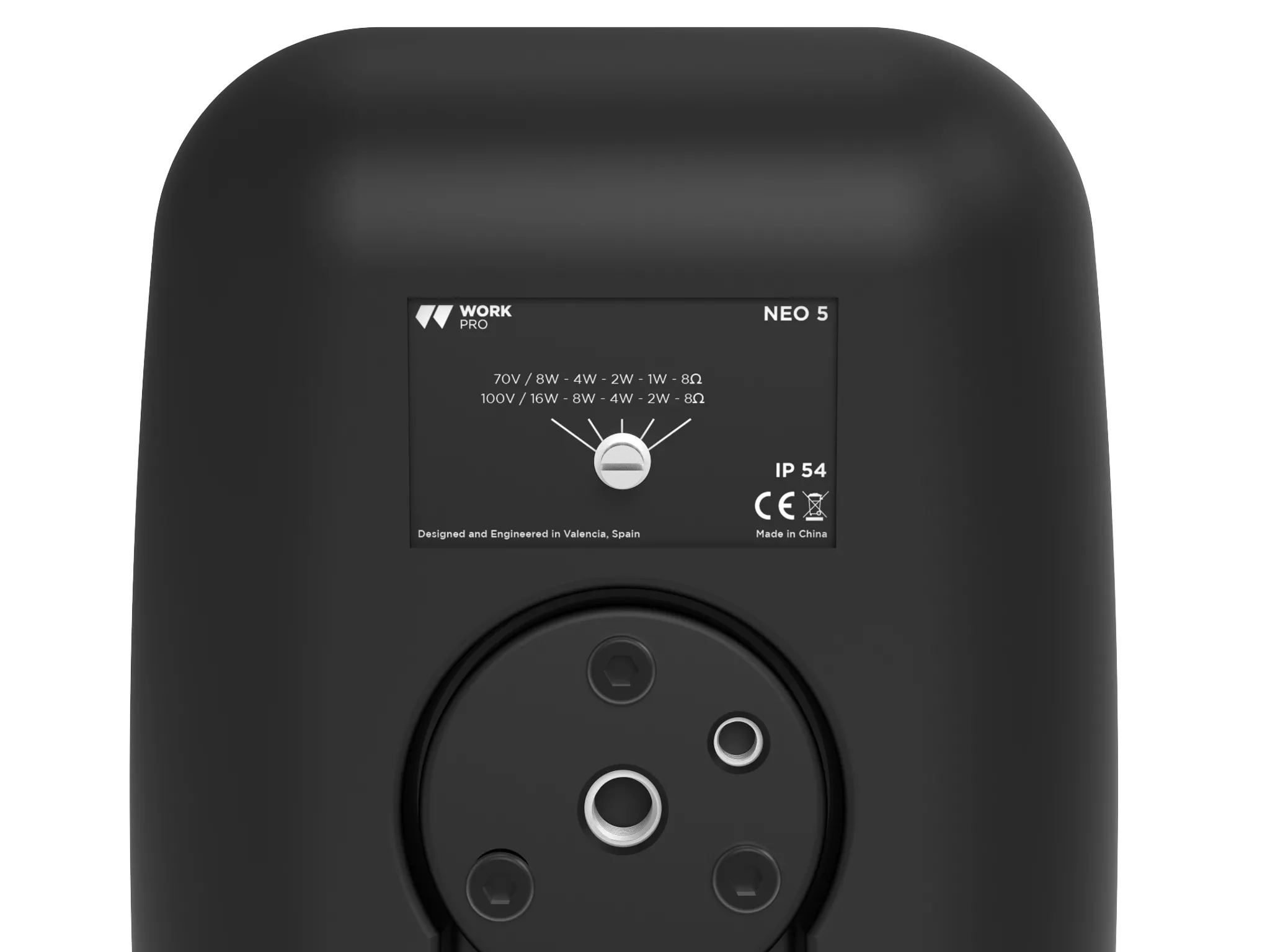

| L100V Power | 16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm, 2 W @ 5 KOhm |
| L70V Power | 8 W @ 625 Ohm, 4 W @ 1k25 Ohm, 2 W @ 2k5 Ohm, 1 W @ 5 KOhm |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 5.25" Woofer |
| HF Transducer | 0.5" Tweeter |
| Sensitivity (1W @ 1m) | 91 dB |
| SPL Max | 107 dB |
| Coverage Angle (H x V) | 90º x 70º |
| Frequency Range | 94 Hz - 20 KHz |

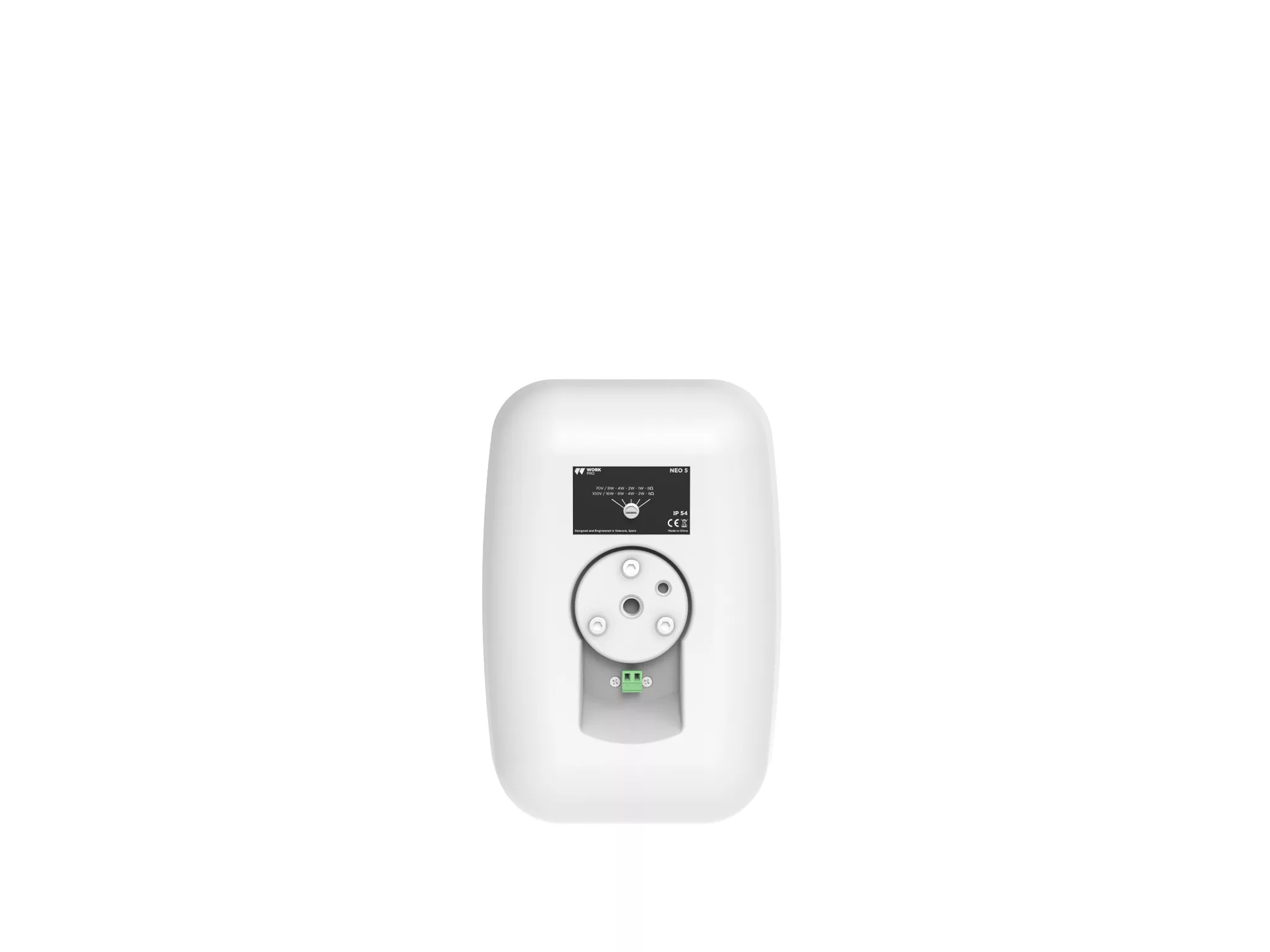

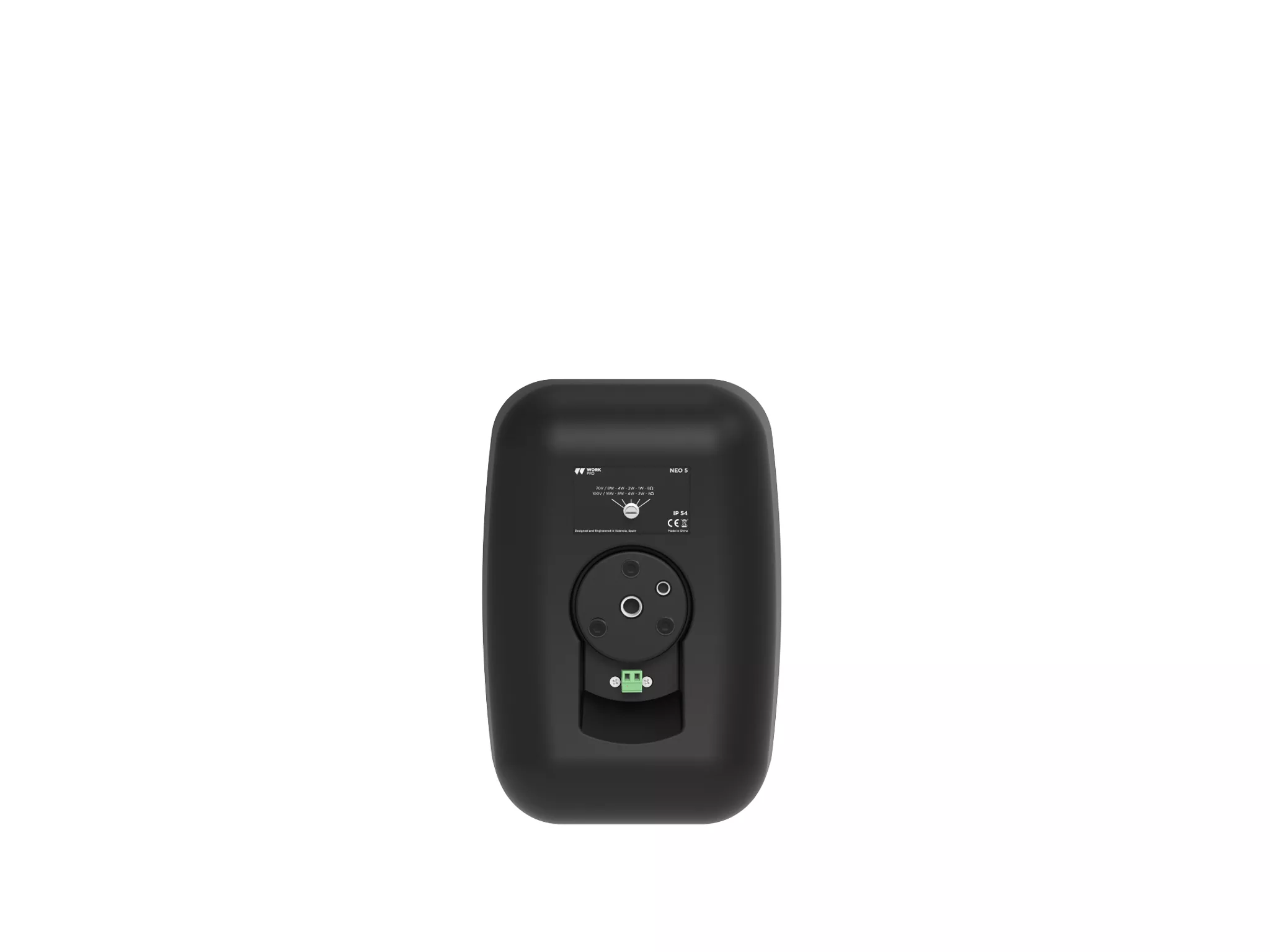

| Connections | Euroblock |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP 54 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.17 | 0.17 | 0.24 | 2.30 |
| Box | 0.23 | 0.37 | 0.32 | 5.70 |
| Master Carton | 0.39 | 0.41 | 0.67 | 23.00 |
