Loudspeakers
ENTAR 12A
#50ENT013
Self-powered loudspeaker. 1000W amplifier. DSP. Woofer 12'' + Driver 1.35''. Plywood. Black color.

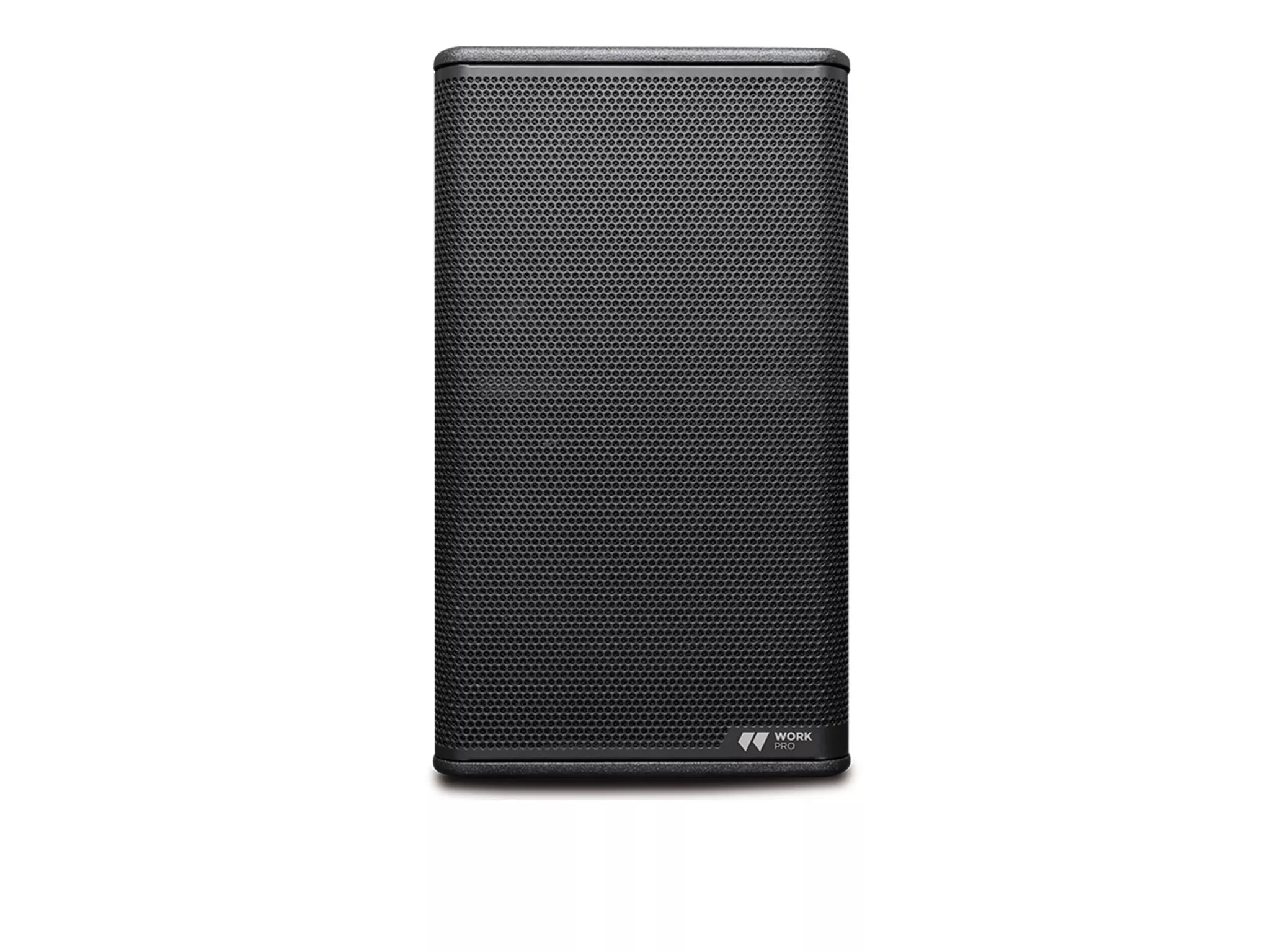

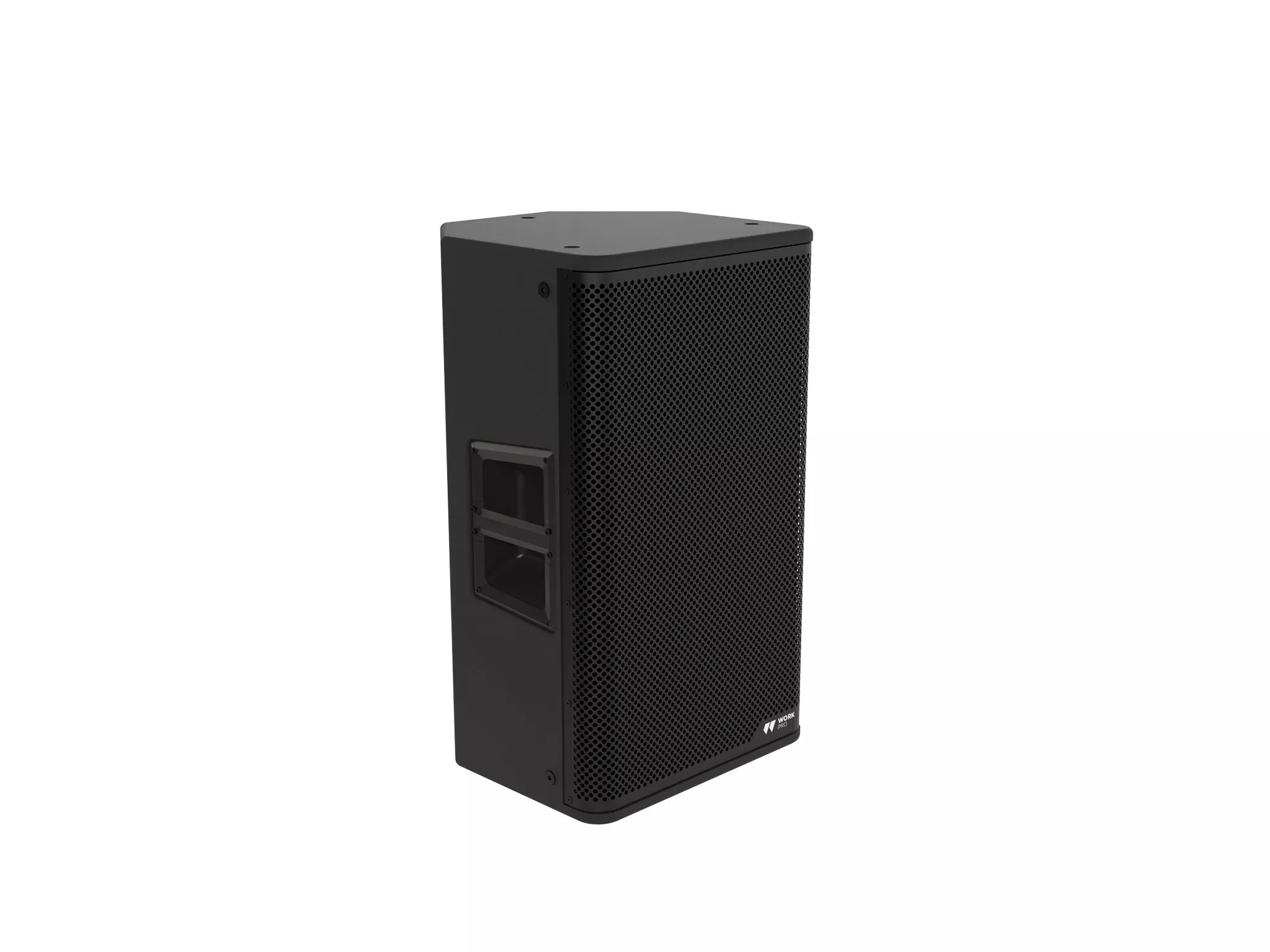

ENTAR 12A is a two-way self-powered loudspeaker that incorporates a 1000W amplifier, made of wood. It consists of a 12" woofer with a 2.5" voice coil and a 1.35"compression driver, and incorporates a signal processing DSP. Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support. It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 2 Mic/Line inputs with level control and mix function.
Main information
- 1000W amplifier.
- 15-inch Woofer + 1.35-inch Driver.
- Signal processing DSP.
- Made of plywood.
Product main measures (m)
0.35 x
0.36 x
0.63
| Type | 2-Way. Class D amplifier |
| Power | Amplifier 1000 W |
| LF Transducer | 12" Woofer; 2.5" Voice Coil |
| HF Transducer | 1.35" compression driver |
| DSP | 4 Presets, 3 Filtros HPF, Ajuste curva bass/treble/ 4 Presets, 3 HPF Filters, Bass / Treble Curve Adjustment |
| SPL Max | 128 dB |
| Coverage Angle (H x V) | 86º x 54.6º |
| Frequency Range | 50 Hz - 20 KHz |

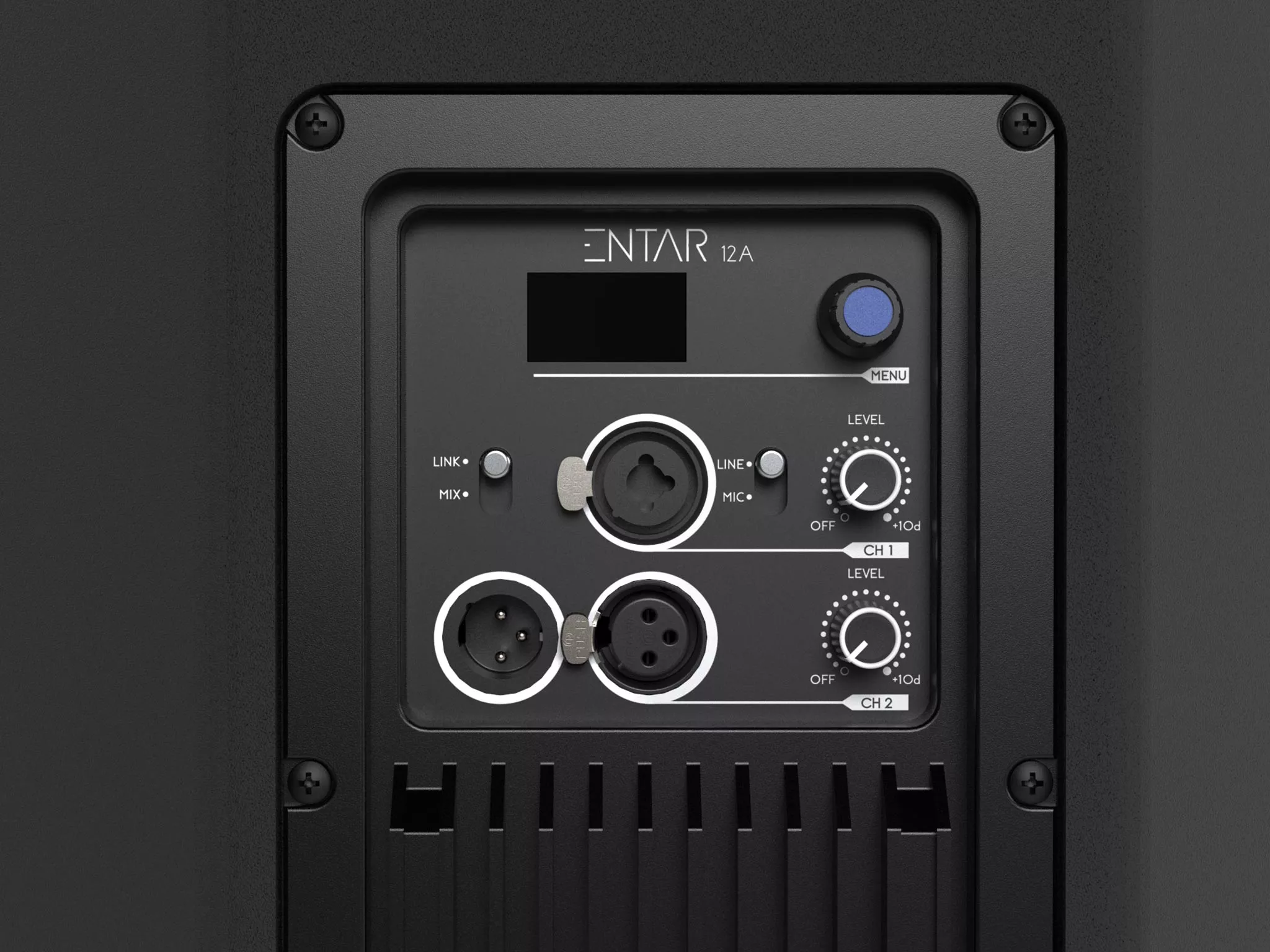

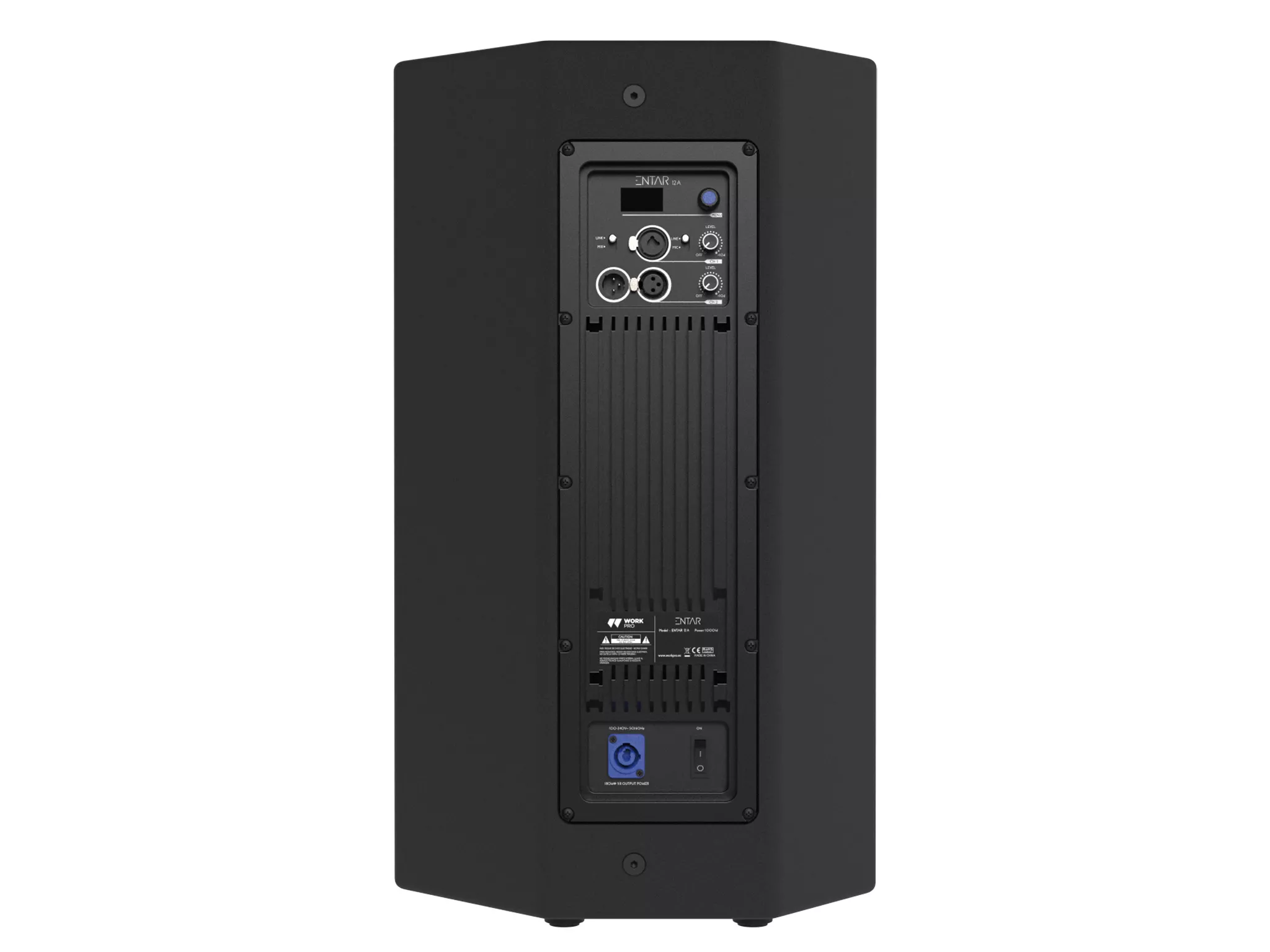

| Connections | 1 x Combi XLR3/Jack TRS 1/4" hembra, 1 x XLR3 hembra, 1 x XLR3 macho/ 1 x Combi XLR3/Jack TRS 1/4" female, 1 x XLR3 female, 1 x XLR3 male |
| Enclosure material | Plywood and metal grille |
| Inserts / Rigging | Insertion: 35 mm - 0°/10° angulation; Rigging: sections for rigging rail and fixing points |
| Power supply | AC 100 - 240 V / 50 - 60 Hz |
| Colour | Black |
| Dimensions | 630 x 360 x 354 mm |
| Weight | 20.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.35 | 0.36 | 0.63 | 20.10 |
| Box | 0.46 | 0.46 | 0.74 | 24.00 |
