100v Amplifiers
PA 4500 L
#82MEG450
Amplifier. 4 x 500 W @ L70 / 100V. Switch mode power supply. Volume control on each channel. 1 HU rack 19''.

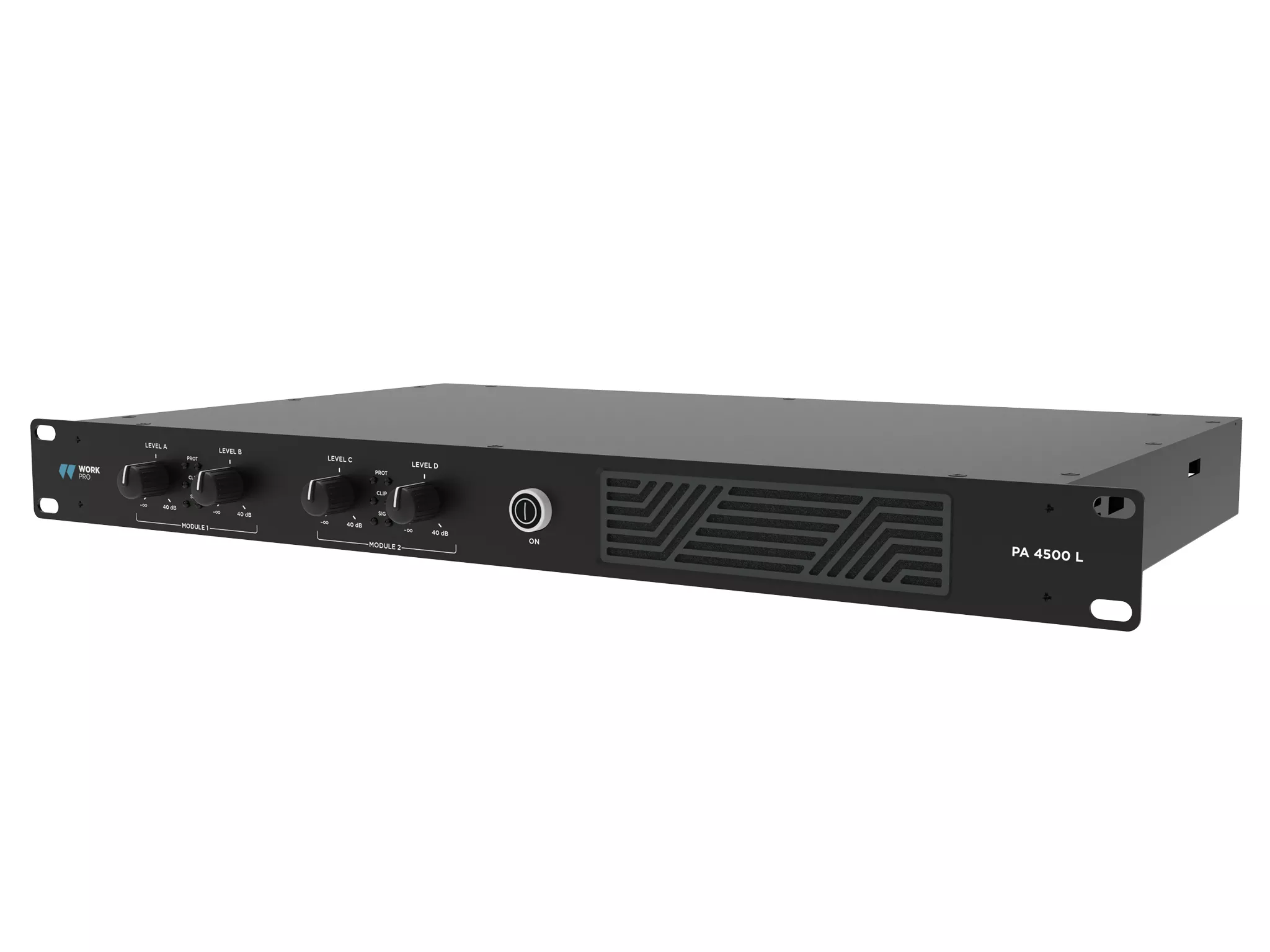

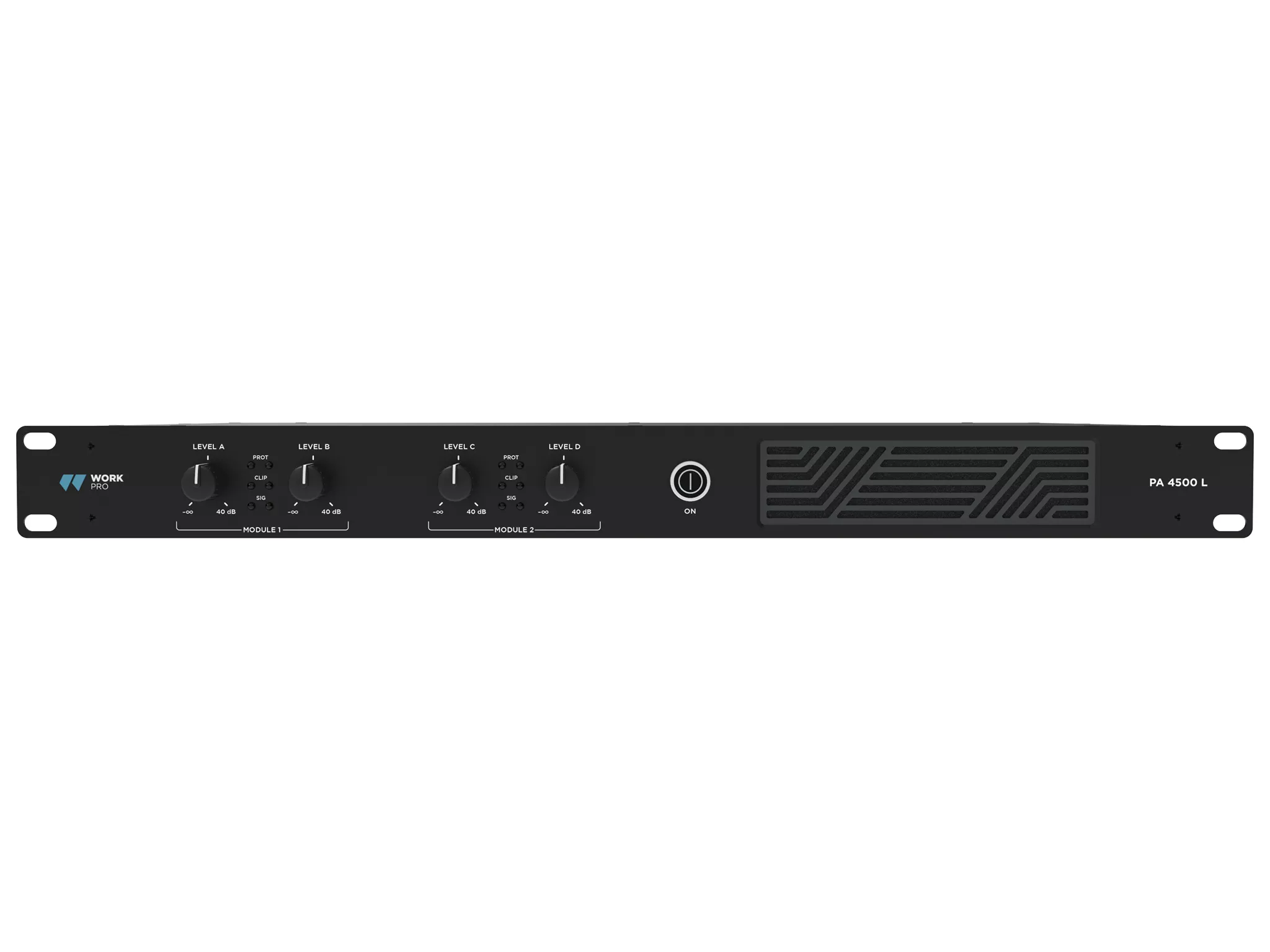

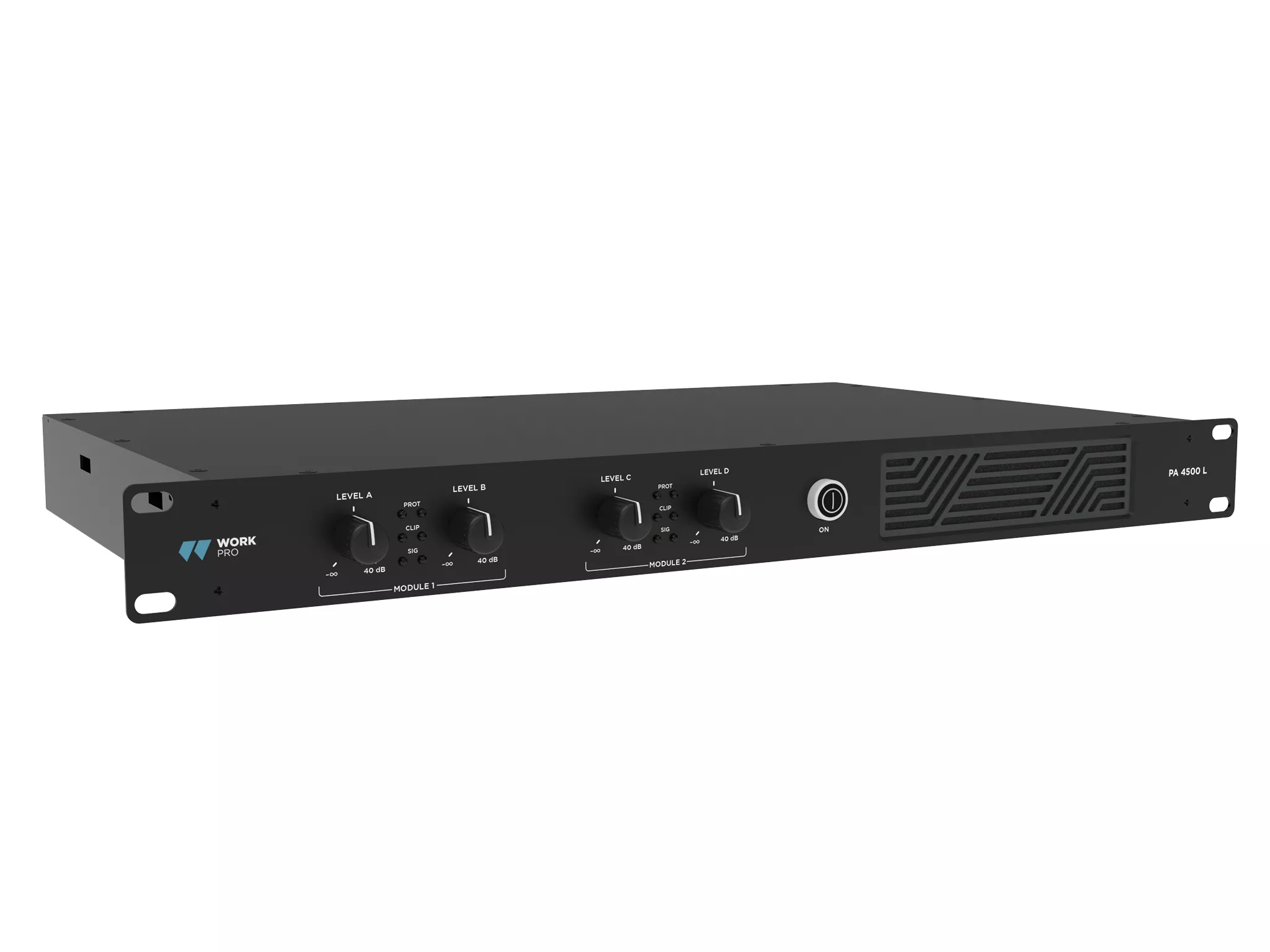

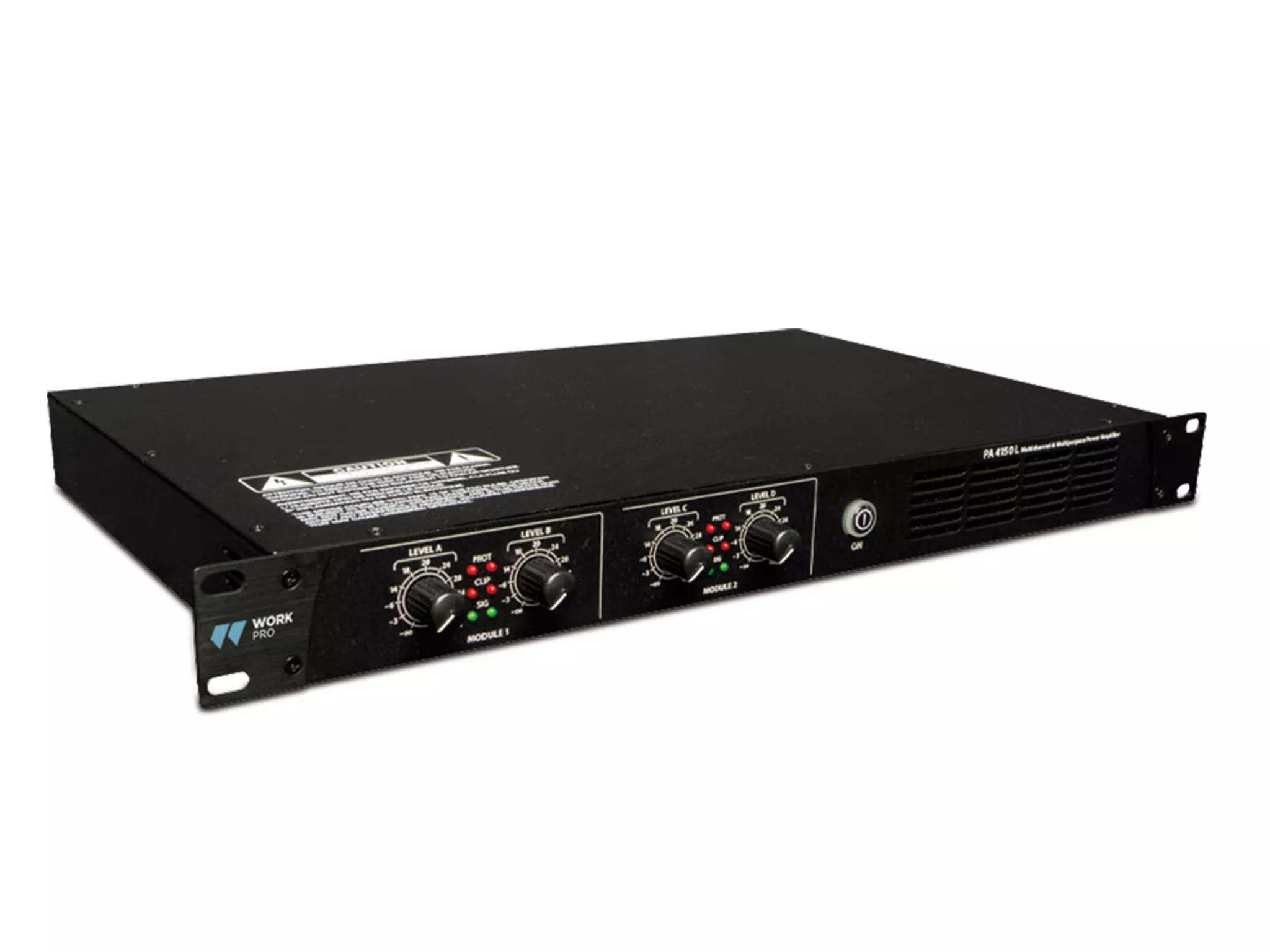

PA 4500 L amplifier offers 4 class D channels with 500 W per output. It can work both in 70V and 100V line (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip, and protect). PA 4500 L integrates various protections such as short circuit, thermal, ultrasonic and RF. Its inputs and outputs are connected by Euroblock connectors and it has dimensions of 1 HU rack 19''.
Main information
- Switch mode power supply.
- 70 / 100V operation (selectable).
- Volume control on each channel.
- 1 HU rack 19 inch.
Product main measures (m)
0.36 x
0.48 x
0.04
| Type | 70/100 V line |
| Power | 4 x 500 W |
| Input Sensitivity | 1V (±0.1V) / 1V (±0.1V) |
| Input Impedance | 20 KOhm (balanceada) 10 KOhm (desbalanceada) / 20 KOhm (balanced) 10 KOhm (unbalanced) |
| Frequency Response | 100 Hz - 15 kHz |
| Gain | 40 dB |
| THD+N | < 0.1% |
| S/N ratio | > 95 dB |
| Damping Factor | > 200 |
| Crosstalk | > 70 dB |

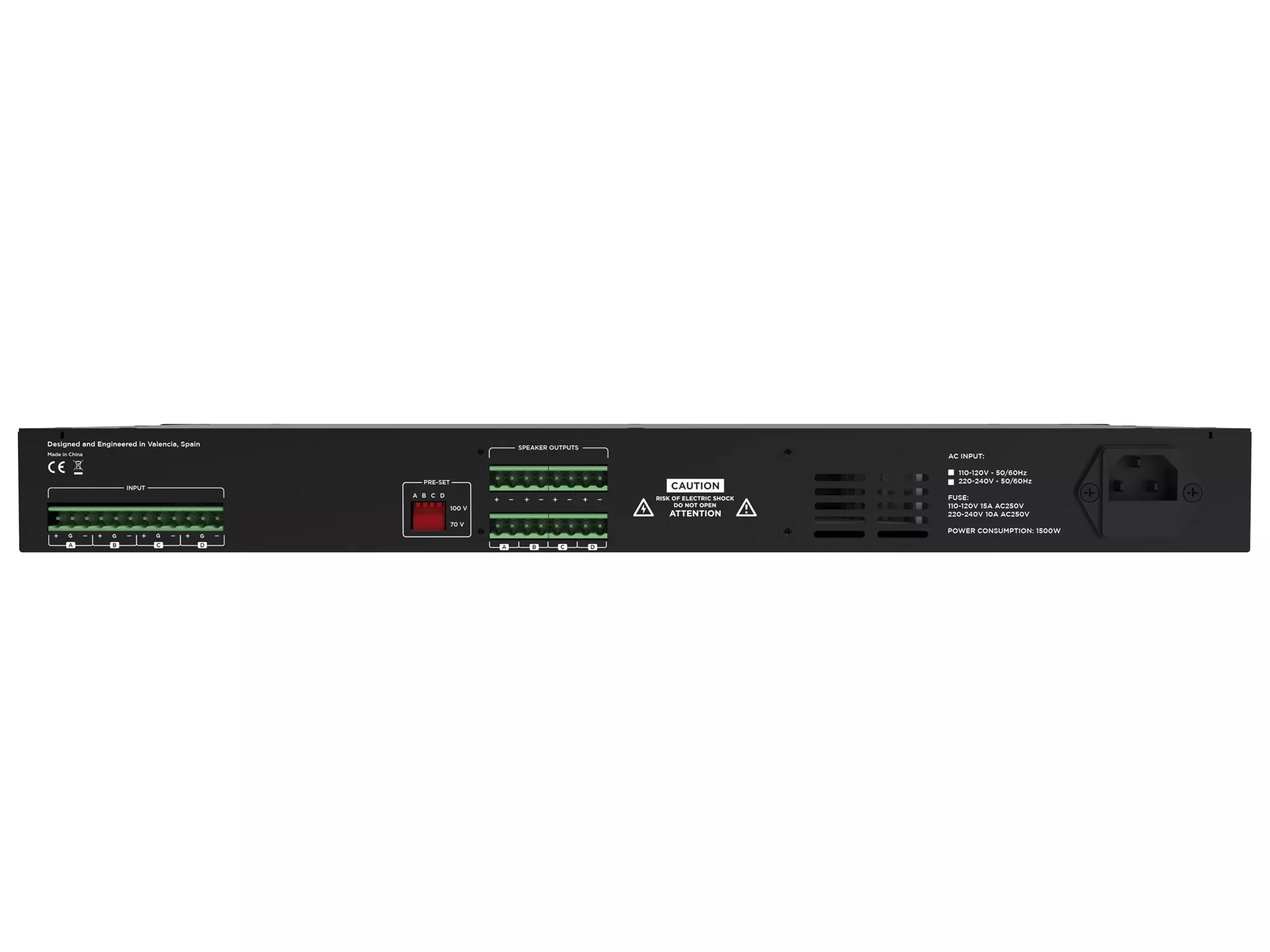

| Connectors | INPUT and OUTPUT: Euroblock |
| Controls | Independent volume per channel |
| Protections | Short circuit, open circuit, overtemperature, ultrasonic and RF |
| Power supply | AC 110-240V, 50/60 Hz |
| Consumption | 2000 W |
| Dimensions | 483 x 44 x 460 mm / 483 x 44 x 460 mm |
| Weight | 5.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.36 | 0.48 | 0.04 | 5.10 |
| Box | 0.38 | 0.55 | 0.11 | 6.84 |
| Master Carton | 0.39 | 0.56 | 0.48 | 28.78 |
