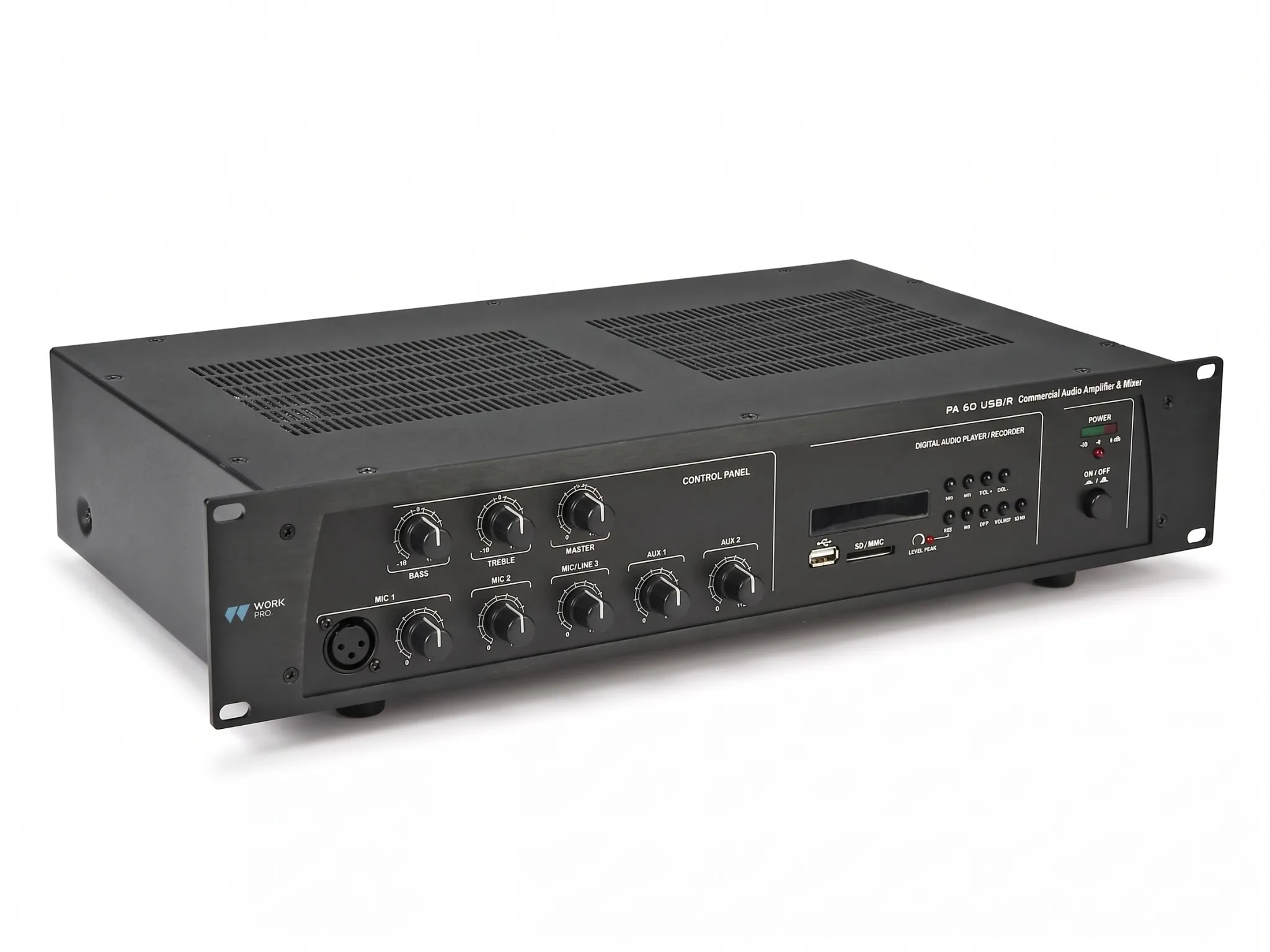

PA 60 USB / R is a 100 V 60 W line or low impedance installation amplifier with 5-input mixer, audio player / recorder on USB / SD support up to 32 GB, so it is possible to record messages and store them for use later. The mixer has independent volume control, master control and tone control (treble / bass). It has a Pre-out output to send the mixed signal to an external amplification system. It includes a push button for the siren and a Tel / Emer connection for the broadcasting of messages with priority over all entrances. In addition, it has emergency power terminals (24 V DC).
- 2 19-inch rack units.
- USB / SD / MMC recorder / player.
- Telephone / emergency connection for paging and communications functions.
- +17 V phantom power.
| Type | Low impedance (8 Ohm), Line 25/70/100 V |
| Power | 60 W @ 8 Ohm, L25/70/100V |
| Input Sensitivity | 1mV (Mic), 178 mV (Line), 200 mV (Aux1), 630 mV (Aux2), 1V (Power In), 100 mV (Teléfono)/ 1mV (Mic), 178 mV (Line), 200 mV (Aux1), 630 mV (Aux2), 1V (Power In), 100 mV (Telephone) |
| Input Impedance | 250 Ohm (Mic), 47 KOhm (Line, Aux, Power In), 600 Ohm (Teléfono)./ 250 Ohm (Mic), 47 KOhm (Line, Aux, Power In), 600 Ohm (Telephone) |
| Connectors | 4 x XLR3 (MIC), 2 pares x RCA (AUX IN), 1 par x RCA (Tape Out), Terminales (Altavoces)/ 4 x XLR3 (MIC), 2 pairs x RCA (AUX IN), 1 pair x RCA (Tape Out), Terminals (Speakers) |
| Controls | Independent gain for mic and aux inputs. Tone control for bass and treble, master control. |
| Frequency Response | 50-20000 Hz (Line), 60-15000 Hz (Mic), 200 Hz - 10 kHz (Tel) |
| THD+N | <1% @ 1KHz |
| S/N ratio | >75 dB (Line), >60 dB (MIC) |
| Phantom Power | +17 V ± 1V |
| Other functions | MP3 / WMA player (USB / SD), 2 tones (´Ding-dong´ tone for warning prior to communication), Priority channel Tel / Emergency |
| Power supply | 115/230 V AC - 50/50 Hz. 24V - 4A |
| Consumption | 200 W |
| Dimensions | 483 x 44 x 260 mm |
| Weight | 8 Kg |
