Installation Loudspeakers
ARENA 12 CX
#50ARE012
Full range 12” 600W Waterproof IP54 coaxial speaker
The ARENA 12 CX, 12'' compact coaxial loudspeaker, provides 600W @ 8 Ohm, it is designed to provide high quality sound reproduction in applications requiring extreme weather resistance. Its water-resistant polyvinyl construction, hydrophobically treated grille, moisture-sealed crossover and waterproof connector make it reliable under prolonged exposure to harsh environmental conditions.
Ideal for stadiums fairgrounds, outdoor entertainment centers, athletic fields, swimming pools background music, worships, multipurpose outdoor and indoor venues, etc.
Main information
- Customized high performance woofer & compression driver.
- Water resistant polyvinyl board with quality textura coating.
- Hidrophobically-treated Grill. - Waterproof strip connector.

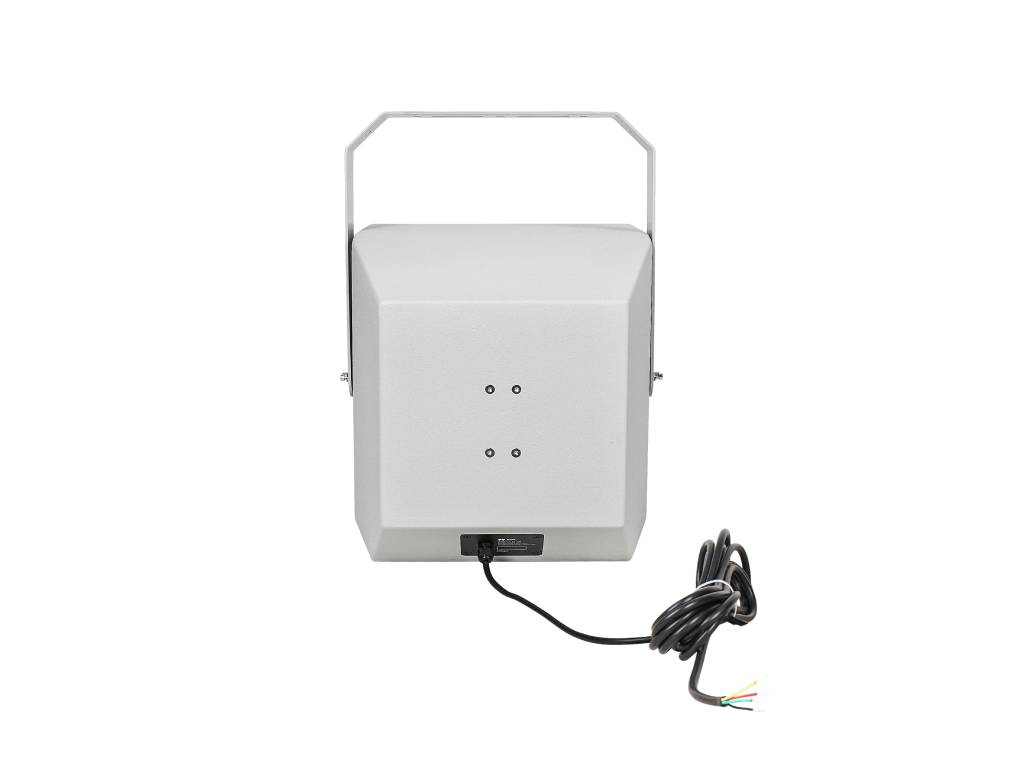

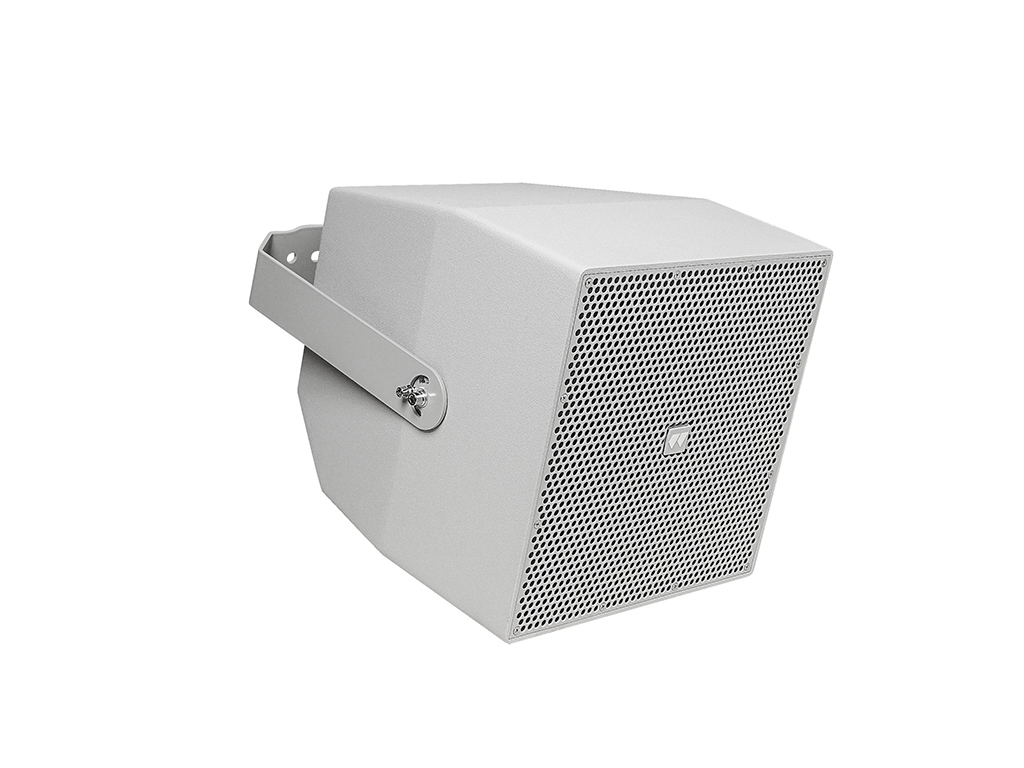

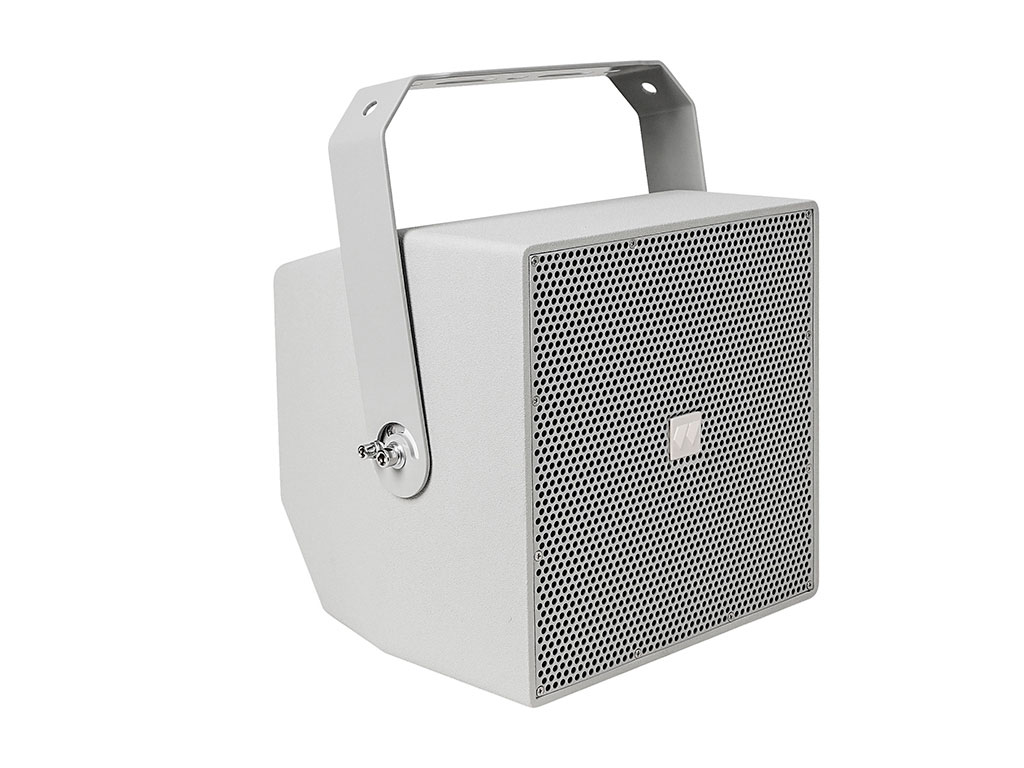

- U-bracket included for installation.
| Type | Waterproof coaxial speaker |
| Low Impedance Power | 300W RMS |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 1 x 12" |
| HF Transducer | 1 x 1-3/4" |
| Sensitivity (1W @ 1m) | 107dB |
| SPL Max | 135dB |
| Coverage Angle (H x V) | 60° x 60° |
| Frequency Range | 65Hz – 20KHz |

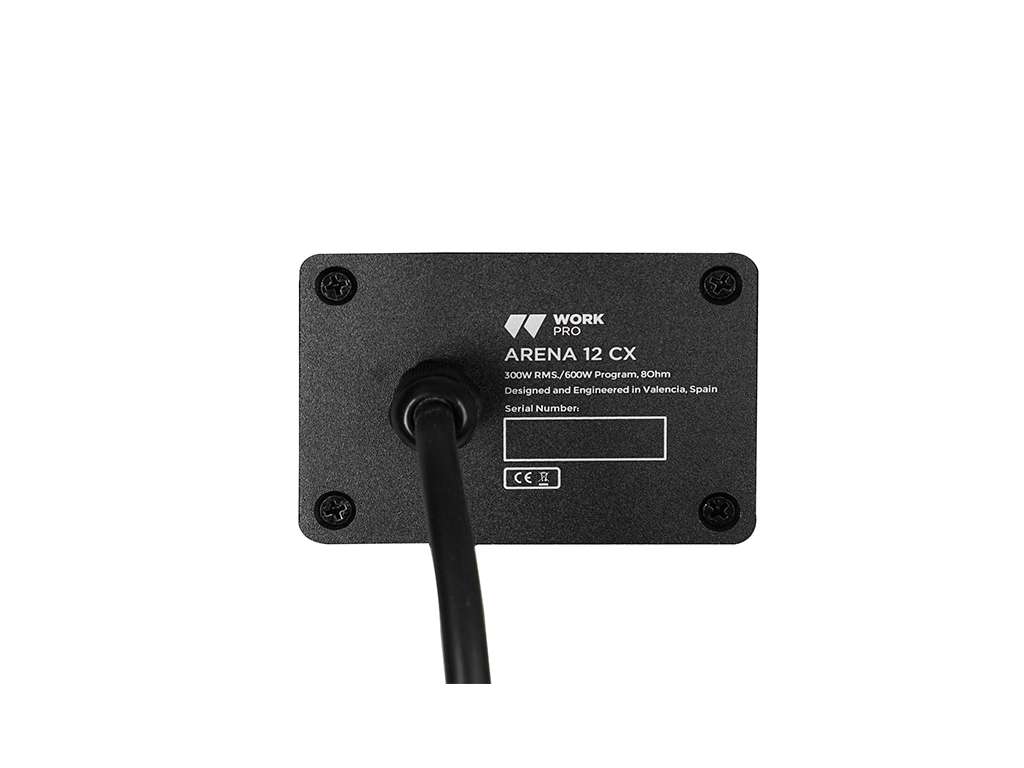

| Connections | Waterproof 4 pin terminal strip connector |
| Enclosure material | Water-resistant polyvinyl |
| Grill | Steel with anti-corrosion coat |
| Inserts / Rigging | U Bracket |
| IP Protection | IP 54 |
