Installation Loudspeakers
Athos 10R
#50ATH110
#50ATH111
Passive loudspeaker 400 W program @ 8 Ohm. 60 W @ L100V. 8'' Woofer + 1'' Driver. IP54. Price per unit.
The new ATHOS R series is updated with the aim of obtaining a product resistant to inclement weather and at the same time much more sustainable by changing its structure (previously made of fiberglass), and now in an innovative material that is more resistant to effects. adverse weather conditions (rain, extreme temperatures or solid microparticles), making the polymer with which they are built immune to these problems. Its finish simulating wood also provides aesthetic improvements to the product. The new ATHOS R series incorporates a “U”-shaped wall bracket that can use rear supports that allow movement in both horizontal and vertical axis. SPB 20 and SPB 22 brackets, sold separately, are also available.
Main information
- Suited for outdoor applications. IP 54.
- Made of polymer resistant to adverse climatic effects.
- Black or white colour.
- Bracket included.
| Type | Passive |
| Low Impedance Power | 200W RMS/ 200W RMS |
| L100V Power | 60W |
| L70V Power | 30W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | Woofer 10", Coil 2.5" |
| HF Transducer | 1" driver, polymer diaphragm |
| Sensitivity (1W @ 1m) | 98 dB |
| SPL Max | 127 dB |
| Coverage Angle (H x V) | 80º x 80º |
| Frequency Range | 80 Hz - 17 KHz (-10 dB), 90 Hz - 16.2 KHz (-6 dB) |

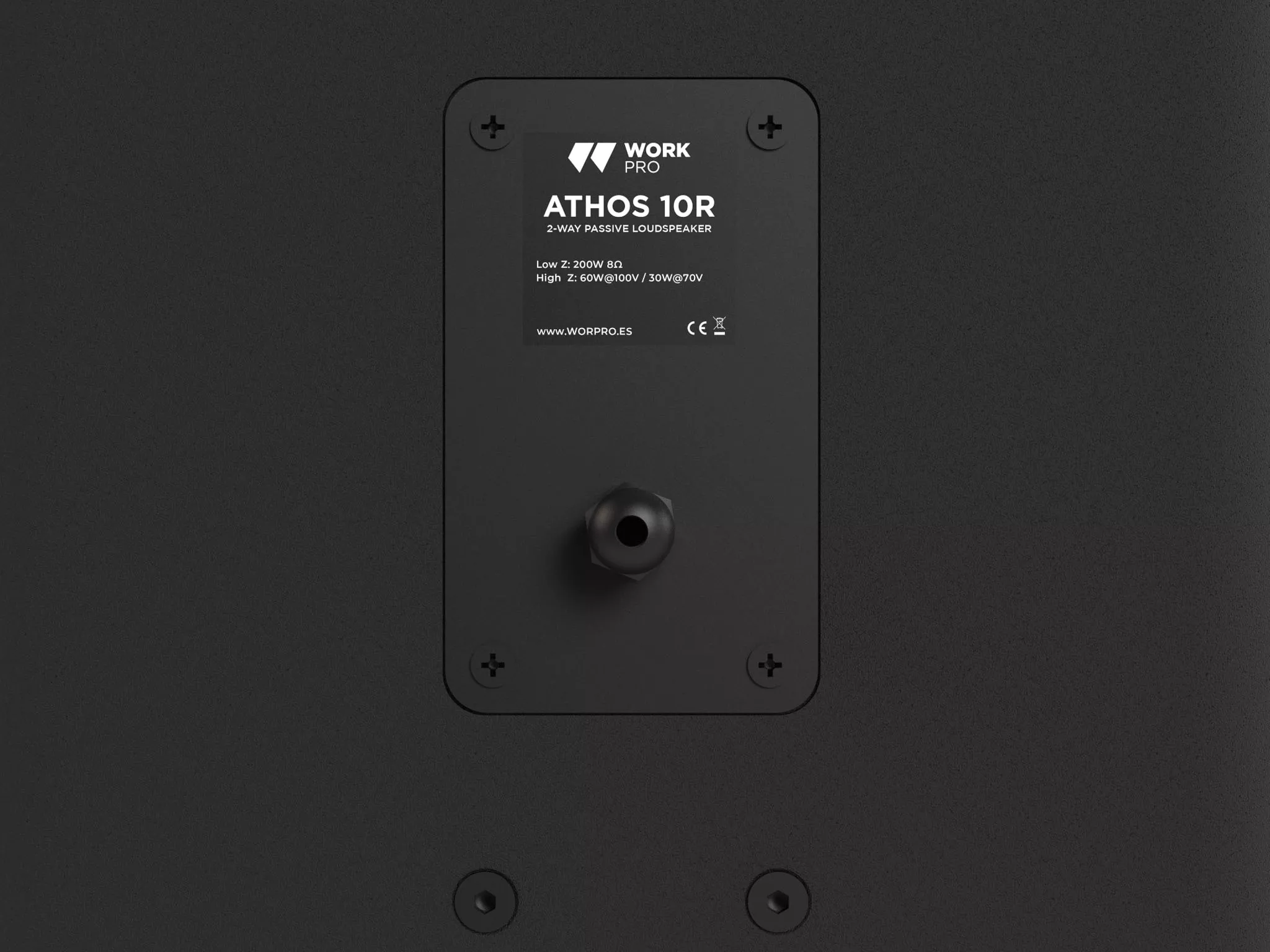

| Connections | Four poles stripped wire |
| Enclosure material | Polymer resistant to adverse climatic effects. |
| Grill | Steel, water proof fabric backing |
| Inserts / Rigging | Bracket included |
| Colour | Black or white |
| IP Protection | IP 54 |
