Audio over IP - DSP
BLR2 A PLUS MKII
#82BLD130
Blueline AoIP receiver. 1 stereo channel. 2GPI+2GPO. Amp 2x5W(PoE)-2x15W(F.A.Ext) @ 4 Ohm. PoE or external source.

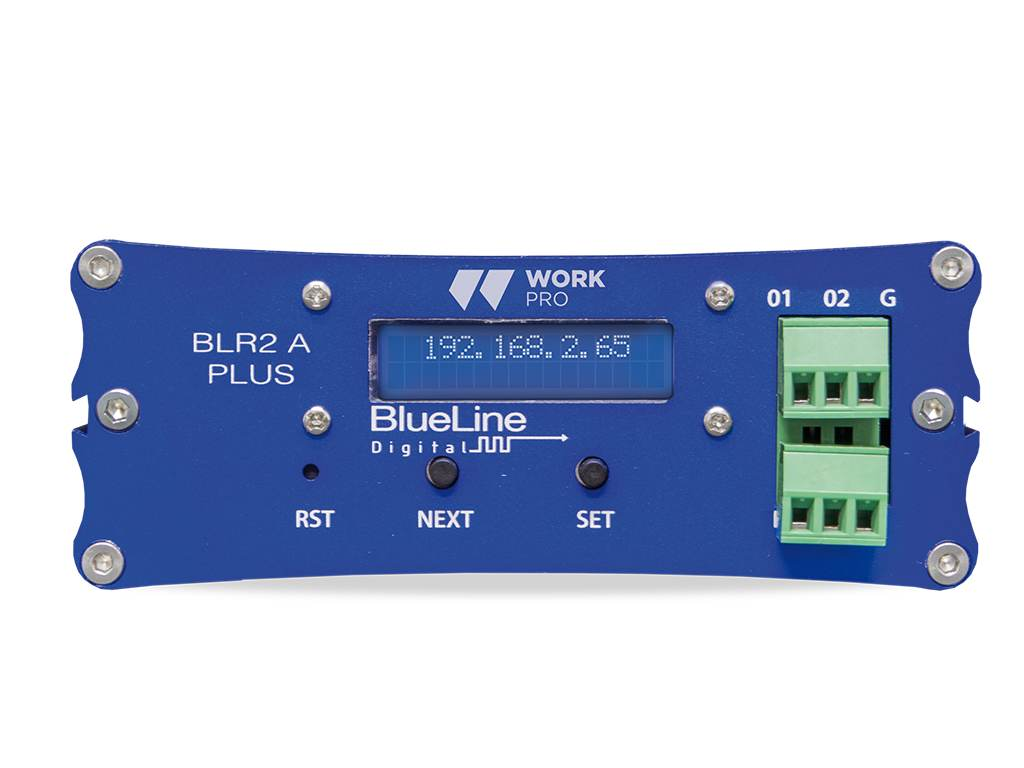

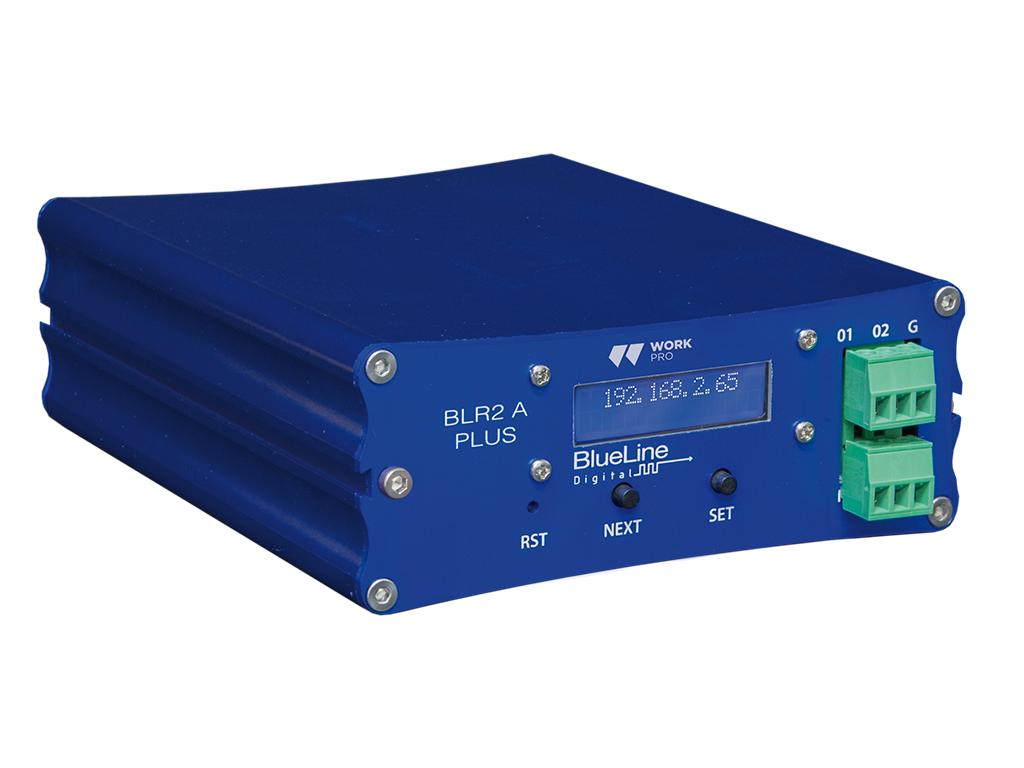

The BLR2 A PLUS MKII is a one-channel stereo audio over IP receiver with built-in low impedance amplifier. The BLR2 A PLUS MKII device is able to extract one of the channels broadcast by the streamers of the Blueline system. In addition, the BLR2 A PLUS MKII includes 2x GPIs (pull-up) and 2x GPO (open collector).
The device can be powered either by PoE or by an external power supply.
Main information
- 1 stereo channel.
- Euroblock connectors.
- Built-in amplifier.
- Configurable through Worcad 3 software.
Product main measures (m)
0.13 x
0.11 x
0.04
BLR2 A PLUS MKII - MANUAL USUARIO v1.2
BLR2 A PLUS MKII - USER MANUAL v1.2
WorkCAD3_Configurator_Manual_ES_1_3
WorkCAD3_Configurator_Manual_EN_1_3
BLUELINE NETWORK AND OSC - MANUAL USUARIO v1.2
BLUELINE NETWORK AND OSC USER MANUAL V 1_2
Server_Plugin_Manual_ES_V1_0
Server_Plugin_Manual_EN_V1_0
LEGACY_OSC_IN_WORKCAD_(RESOLUME_EX)_v_1_1
WORKCAD3 CONFIGURATOR - USER MANUAL v1.2
WORKCAD3 CONFIGURATOR - MANUAL USUARIO v1.2
| No. Channels | 1 canal estéreo (desbalanceado) o 1 canal single/mono (balanceado) / 1 stereo channel (unbalanced) or 1 single/mono channel (balanced) |

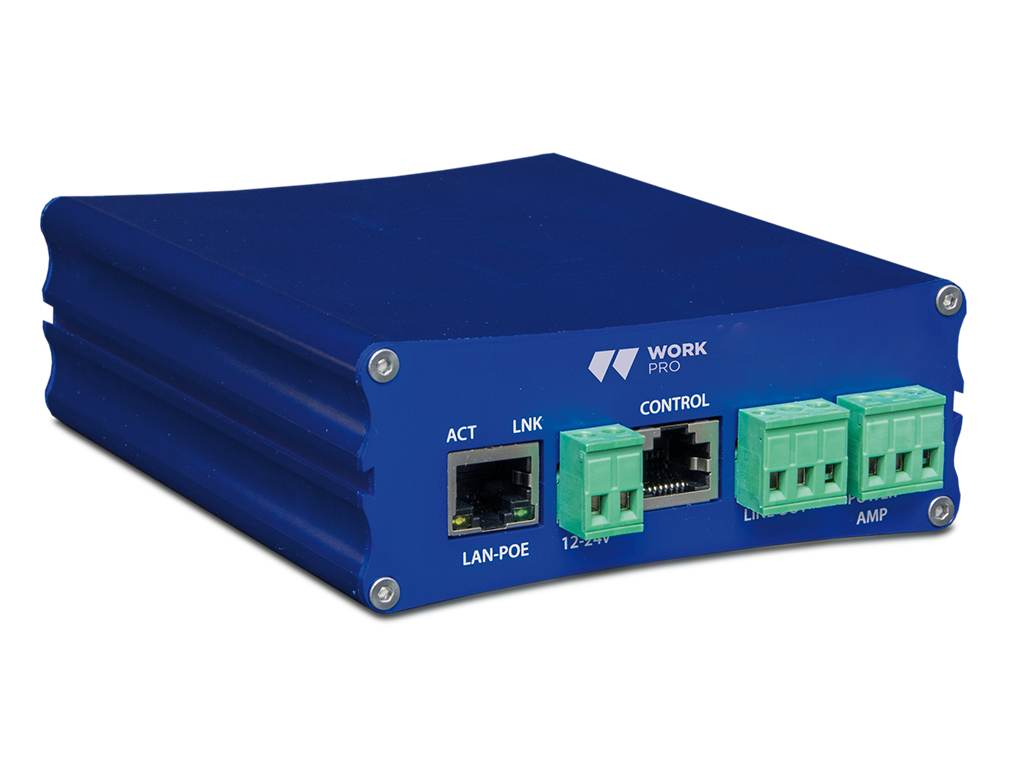

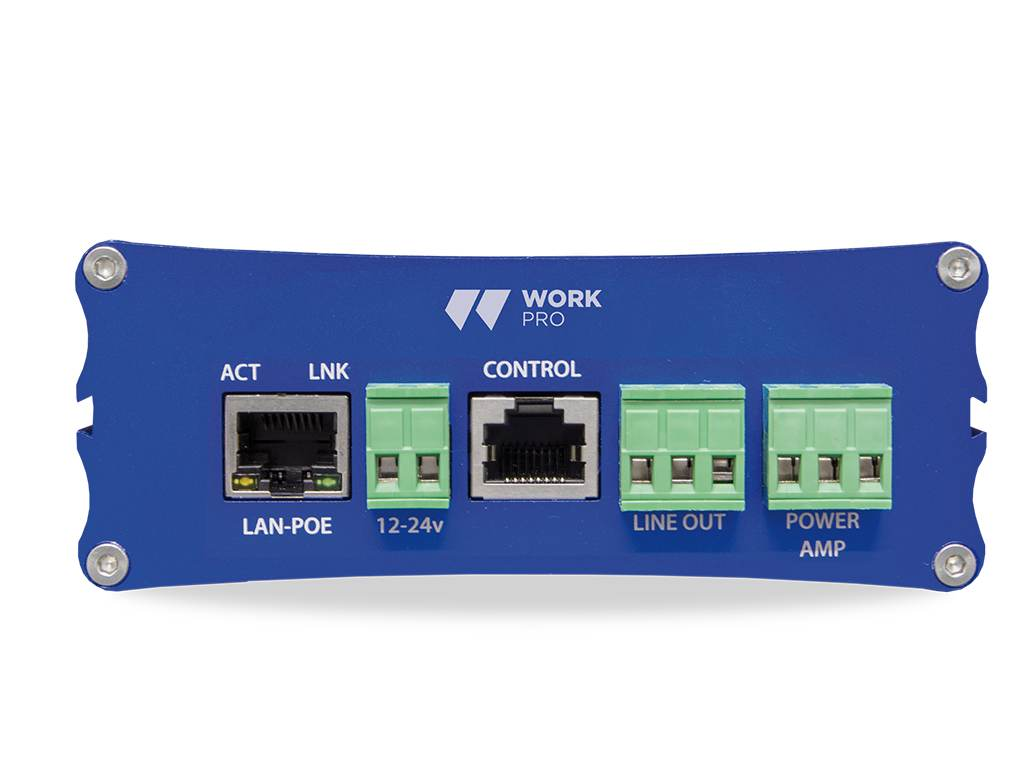

| Connections | Audio Out: Euroblock, 3 pin 5.08mm; Amp: Euroblock, 3 pin 5.08mm; Network: RJ-45 |
| Output sensitivity | -1.15 dBu (640mVrms) |
| Audio over IP | BlueLine UDP Datagrams |
| Ethernet | 100 Base TX |
| Consumption | 1.5 W / 1.5 W |
| Control protocols | OSC |
| Audio extraction modes | Stereo/Single/Mono |
| Power supply | PoE Class: Class 0 802.3af; External power supply: 12/24 Vdc (Not included) |
| Dimensions | 109 x 133.75 x 40.45 mm |
| Weight | 360 g / 360 g |
| Power (24v) | Stereo: 2 x 15W @ 4 Ohm; Bridge: 1 x 30W @ 8 Ohm |
| Power (PoE) | Stereo: 2 x 5W @ 4 Ohm; Bridge: 1 x 10W @ 8 Ohm |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.13 | 0.11 | 0.04 | 0.36 |
| Box | 11.00 | 41.00 | 13.00 | 0.46 |
