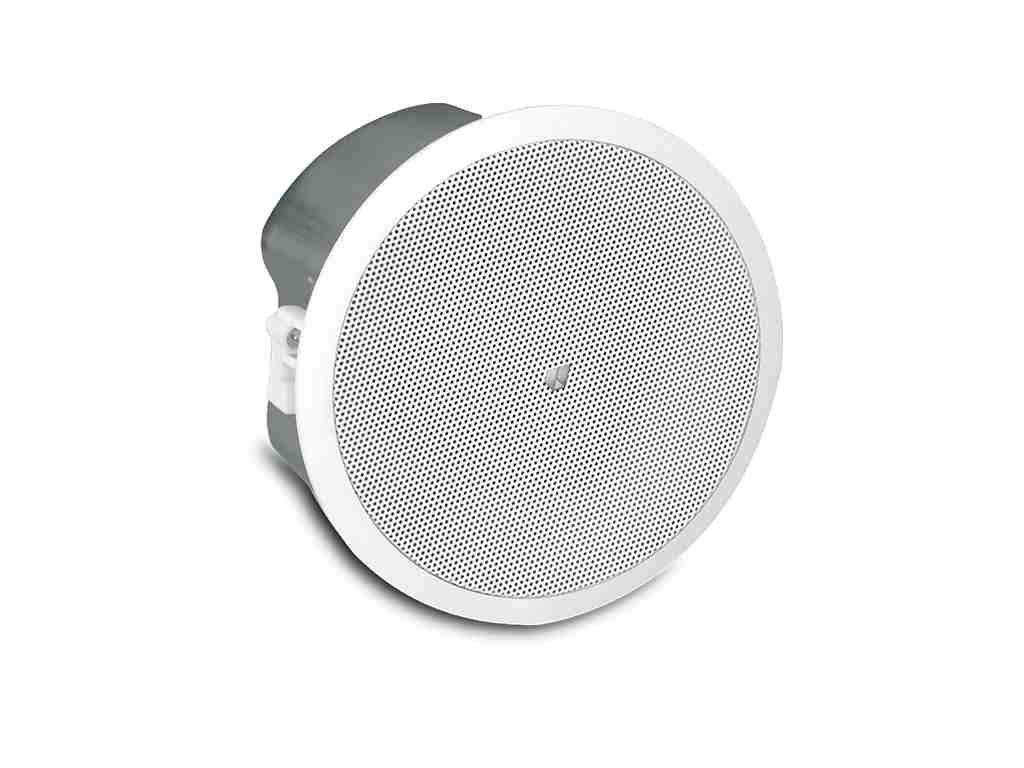

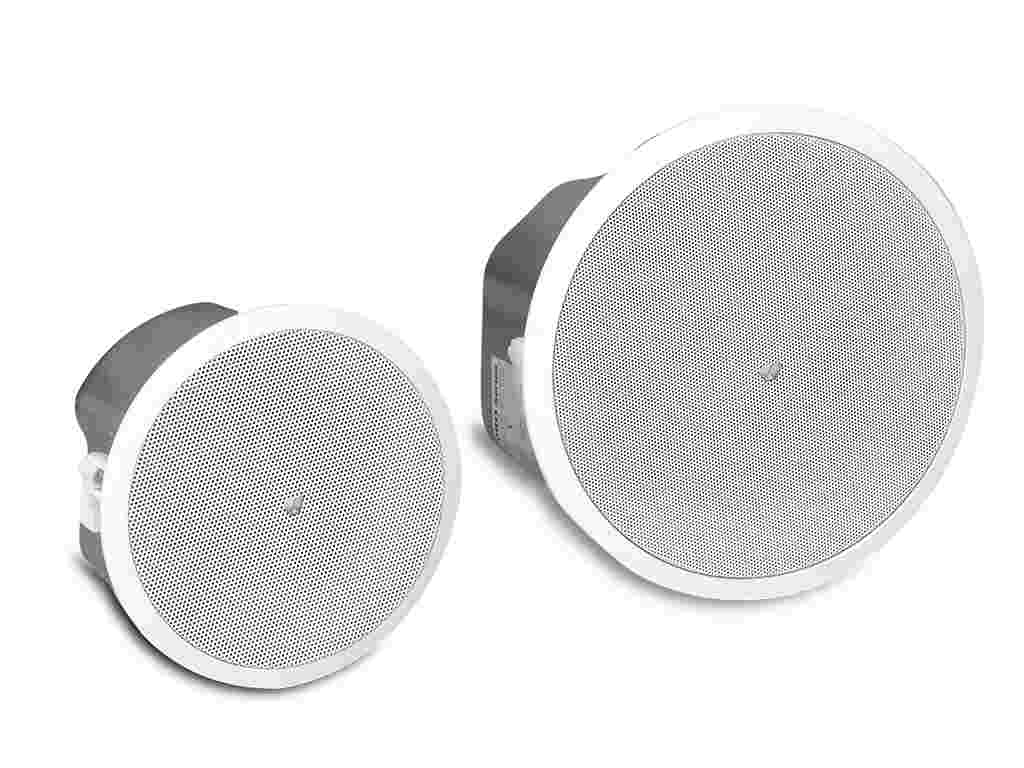

The IC 4 PRO model is part of the WORK Pro IC PRO Series which consists of three ceiling speakers with woofer and tweeter. This series is made of impact-resistant ABS plastic and has a metal grill next to a rear metal enclosure, where the crossover network and the transformer are. The bass reflex design, along with the internal volume of its cabinet and resonance tube, provide great performance in low frequencies. They are suitable for installations with high impedance voltage lines (70V, 100V) and low impedance (8 ohm). The power selector is accessible from the front of the loudspeaker and has a removable Euroblock connector, contained in a metal compartment.
- Low impedance and 70/100 V line.
- Euroblock connector.
- Bass reflex.
- Power selector on the front.
| Type | 2 vías/ Passive. 2 ways. |
| Low Impedance Power | 30 W @ 8 Ohm |
| L100V Power | 8 W (1k2 ohm) / 4 W (2k5 ohm) / 2 W (5 kohm) / 1 W (10 kohm) |
| L70V Power | 8 W (612 ohm) / 4 W (1k22 ohm)/ 2 W (2k5 ohm) / 1 W (4k9 ohm) |
| LF Transducer | Woofer 4" |
| HF Transducer | Tweeter 3/4" |
| Frequency Range | 80 Hz - 20 KHz |
| Sensitivity | 88 dB |
| Max SPL | 95 dB |
| Mounting diameter | 170 mm |
| Mounting depth | 120 m |
| Fixation | 3 pivotes rotativos/ 3 rotating pivots |
| Material | Enclosure: ABS plastic; Grille: metal |
| Colour | White (RAL 9003) |
| Dimensions | Ø185 x 130 mm |
| Weight | 2.2 Kg |
IC 4 PRO | Acoustic Simulator
Optimise your IC 4 PRO with our Acoustic Simulator
With this online tool you can quickly design your PA system, calculating how many speakers and amplifiers you need and where to place them.
