Mixers

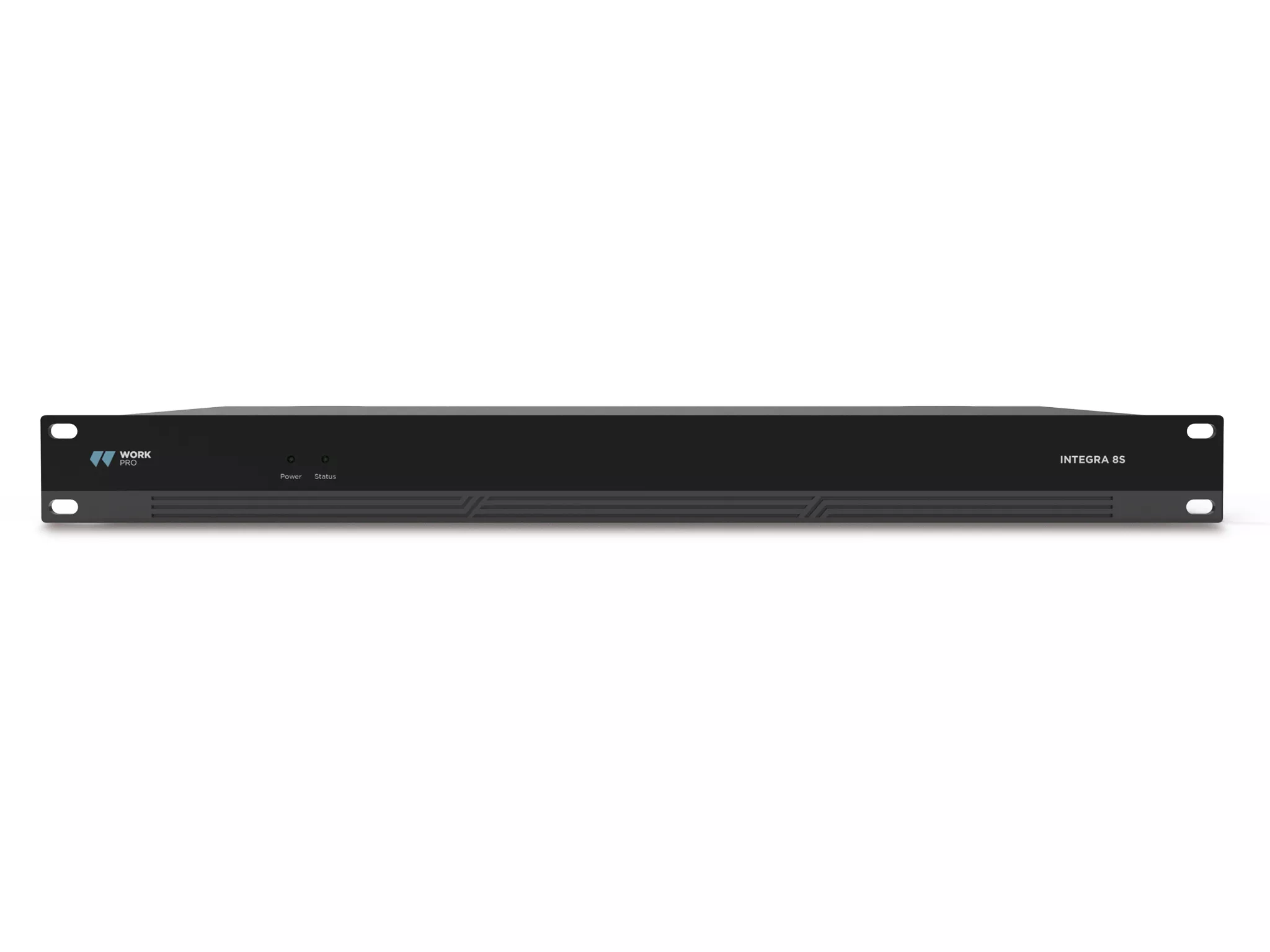

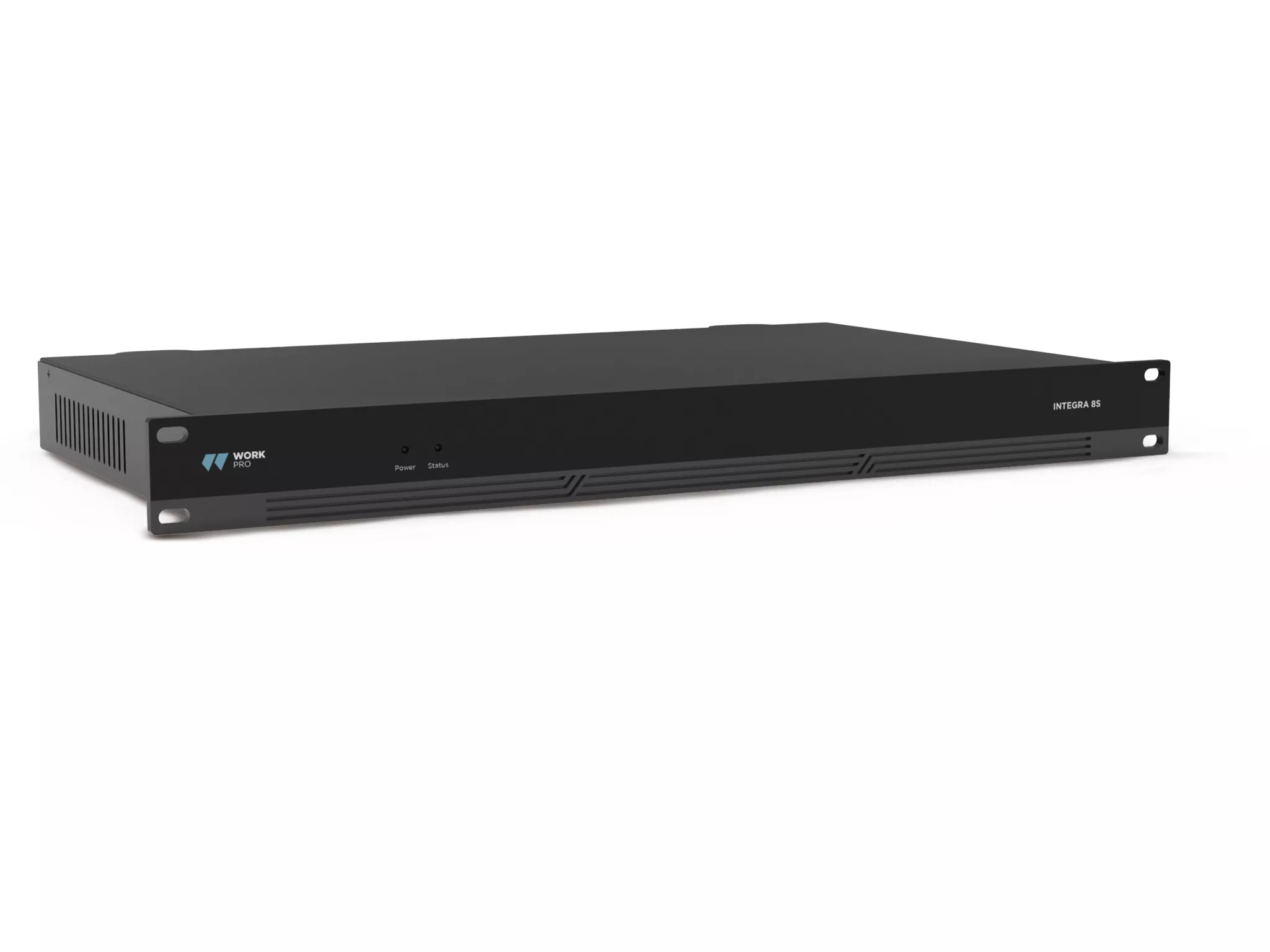

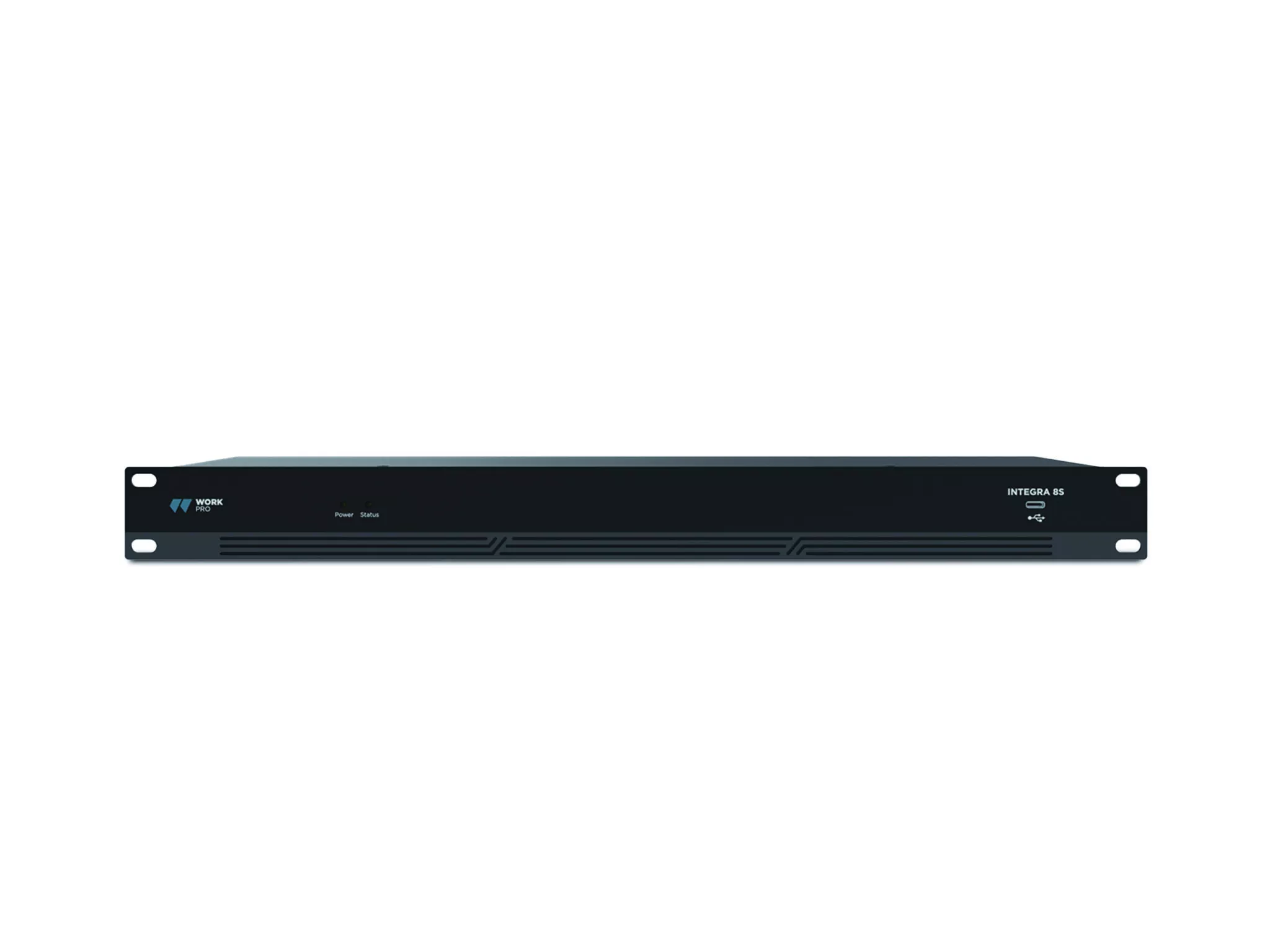

INTEGRA 8S
#58WIN008
DIGITAL AUDIO MATRIX 8 X 8 DSP
Introducing the INTEGRA 8S digital matrix, where control and creativity have never been easier. Our free and powerful native management software puts the power in your hands.
With configurable per-channel DSP architecture, adjust gain, EQ, compression, limiting and more, all with one-click ease. The visual matrix and auto-mix module give you unparalleled flexibility.
Need more? Filter bank on the inputs, independent compression/limiting on each output and an APP for mobile devices to control everything from your pocket. The INTEGRA Series: Are you ready to take your facility's audio to the next level?
Main information
- 8 X 8 analog channels
- Programmable DSP architecture per channel
- Customizable control software and APP
- Audio processor IC 24 bit / 48kHz Shark 450 MHz

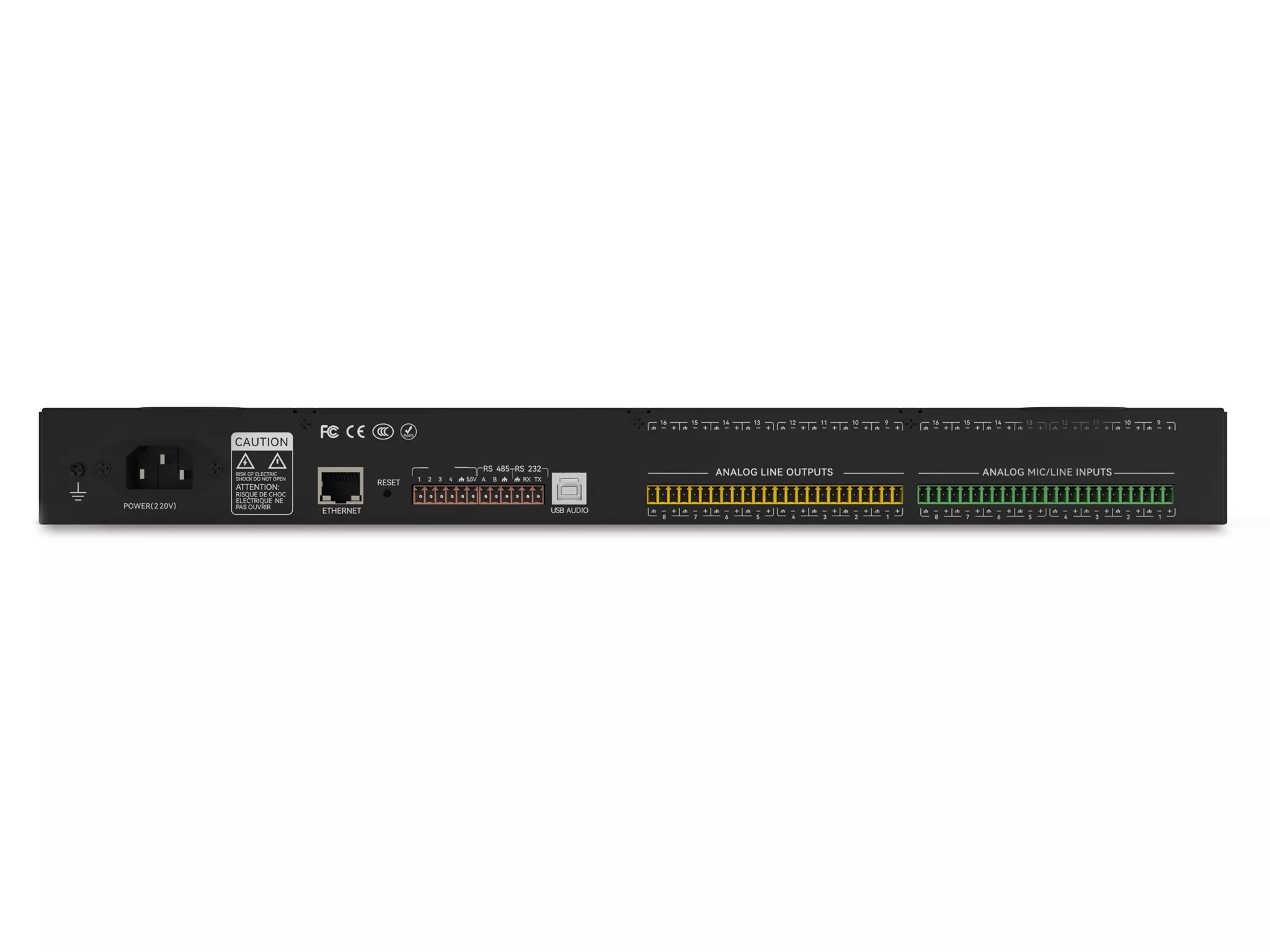

| Audio input | 8 Analog Balanced (Euroblock) |
| Processing per input channel | Expander, Compressor, Auto Gain Compensation, EQ 8 bands, Feedback |
| Audio Output | 8 Analog Balanced (Euroblock) |
| Output channel processing | Filtrer, EQ, Delay, Limiter |
| THD+N | 0.003%@4dBu |
| Maximum output level | +18dBu |
| Sampling frecuency | 24 bit / 48 kHz |
| Filter types | Bessel, Butterworth, Linkwitz-riley |
| No. Memories | 16 Presets |
| Control protocols | RS232, RS485, UDP, 4 GPIOs |
| Network Ports | RJ45 |
| Ethernet | UTP |
| Power supply | 230V 50Hz |
| Consumption | <40W |
| Dimensions | 482 x 260 x 45mm |
| Weight | 3 Kg |
| Functions | Signal matrix, Automix, 3 filters per output, Polarity inversion, Noise gate, Compressor, Delay, 5 types of EQ in 8 in/OUT parameters, Sine wave generator and Pink and White noise, Acoustic Echo Cancellation and Automatic Noise Supressor |
| Control software | Integra DSP for PC and Integra REMOTE for Tablet/Smartphone |
