Installation Loudspeakers
NEO 8
#50EBS122
#50EBS123
Passive loudspeaker 70 W @ 8 Ohm, 32 W @ L100V. 8'' Woofer + 1'' Tweeter. Sold in pairs.

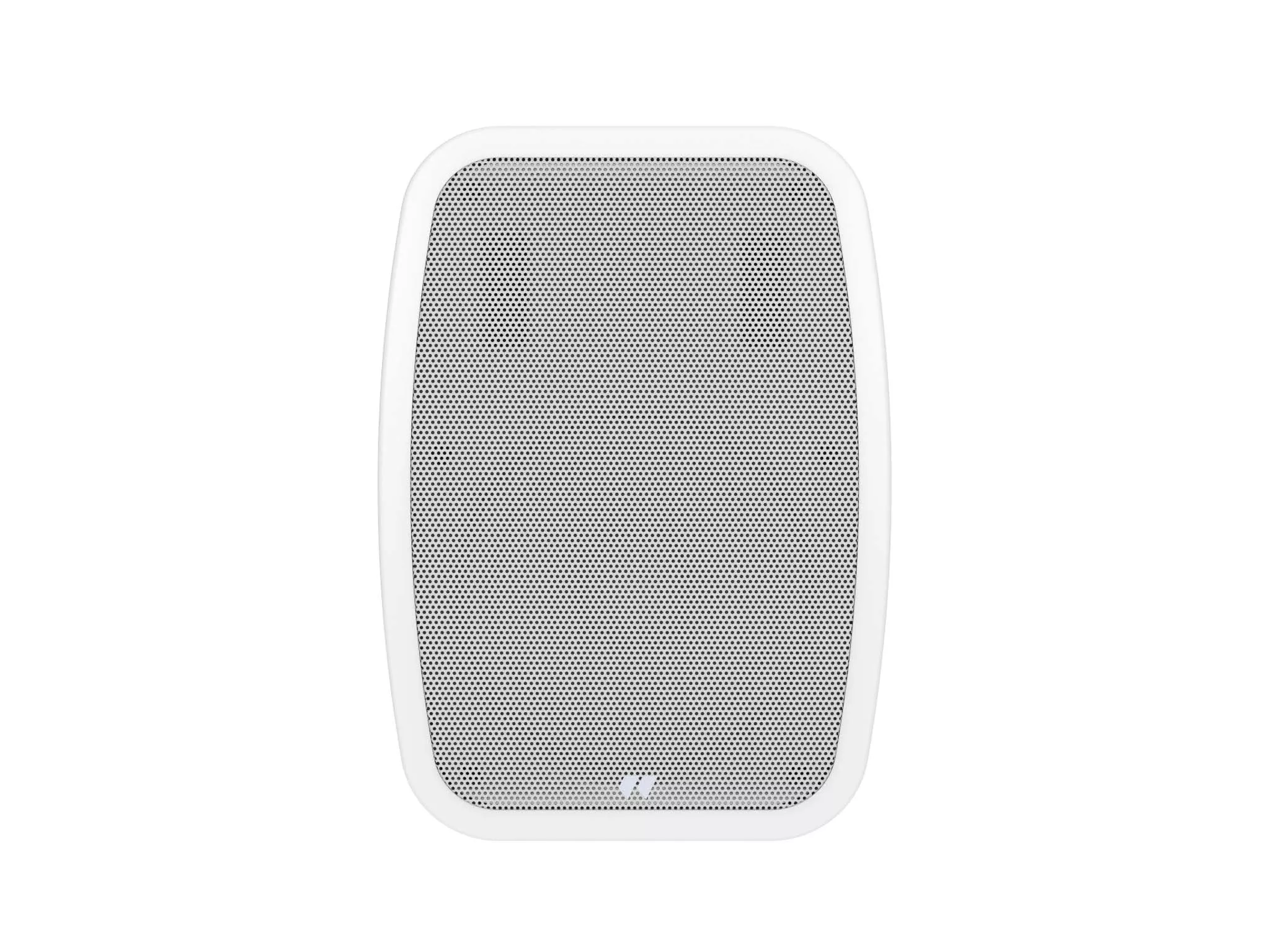

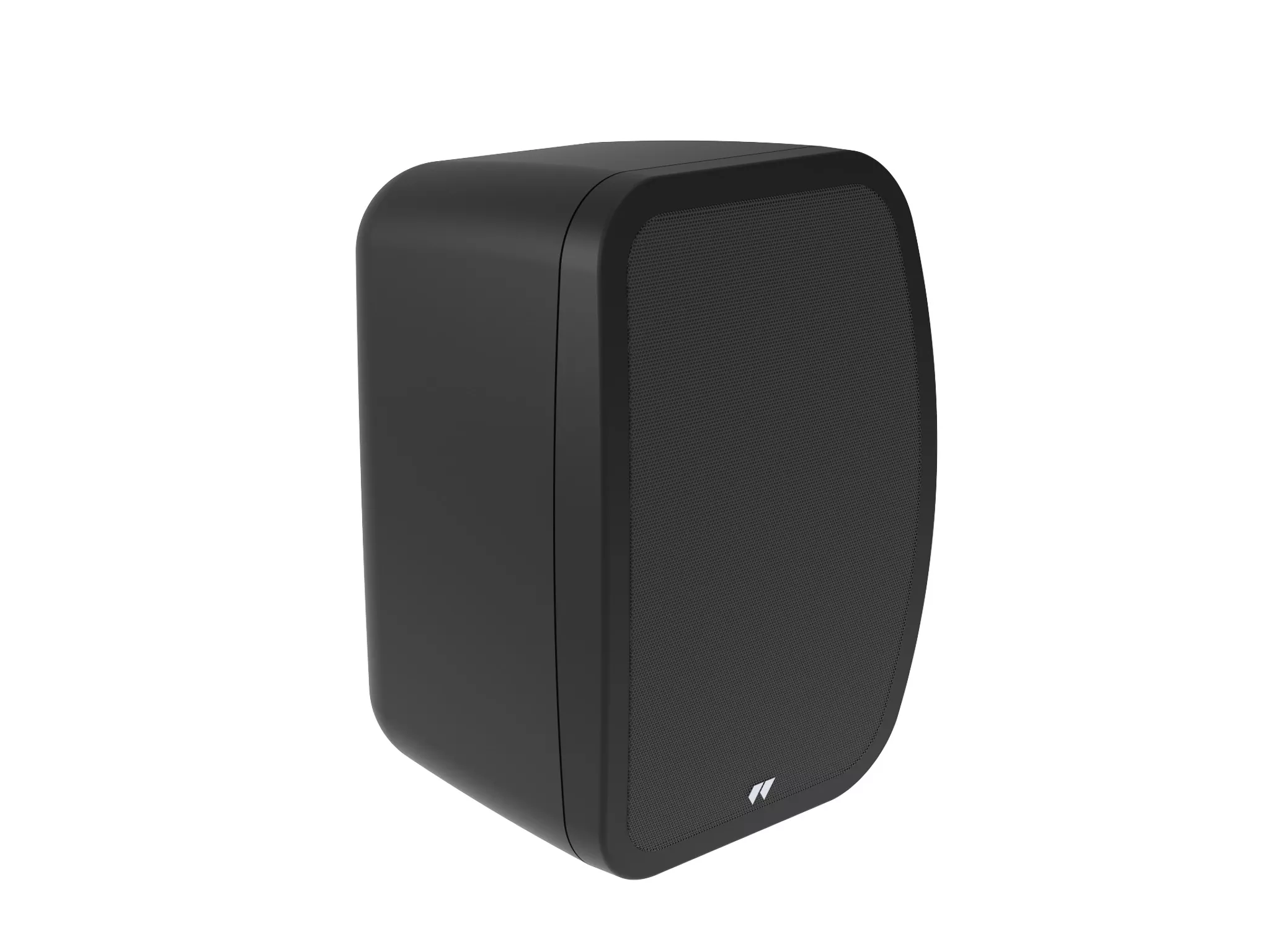

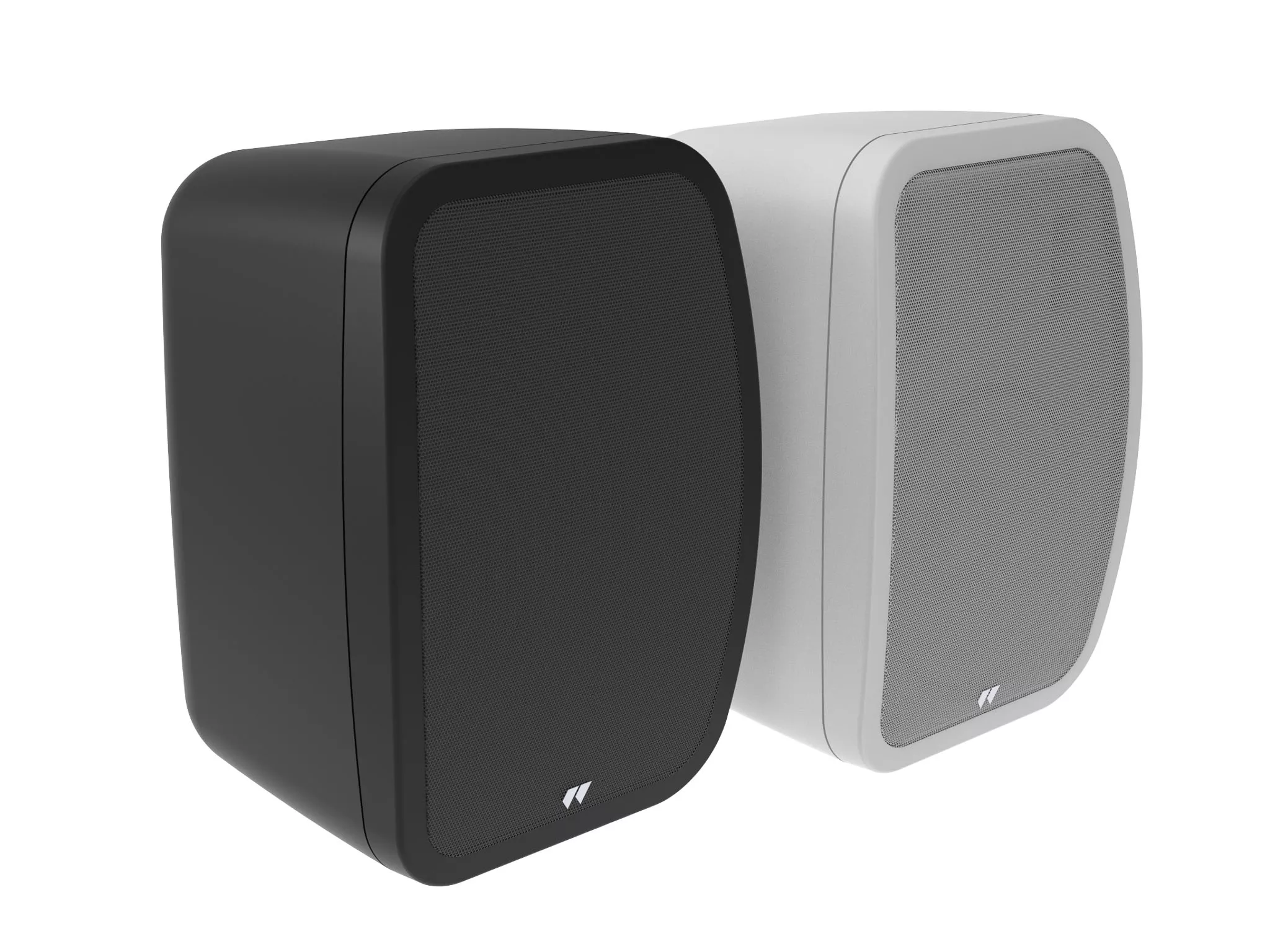

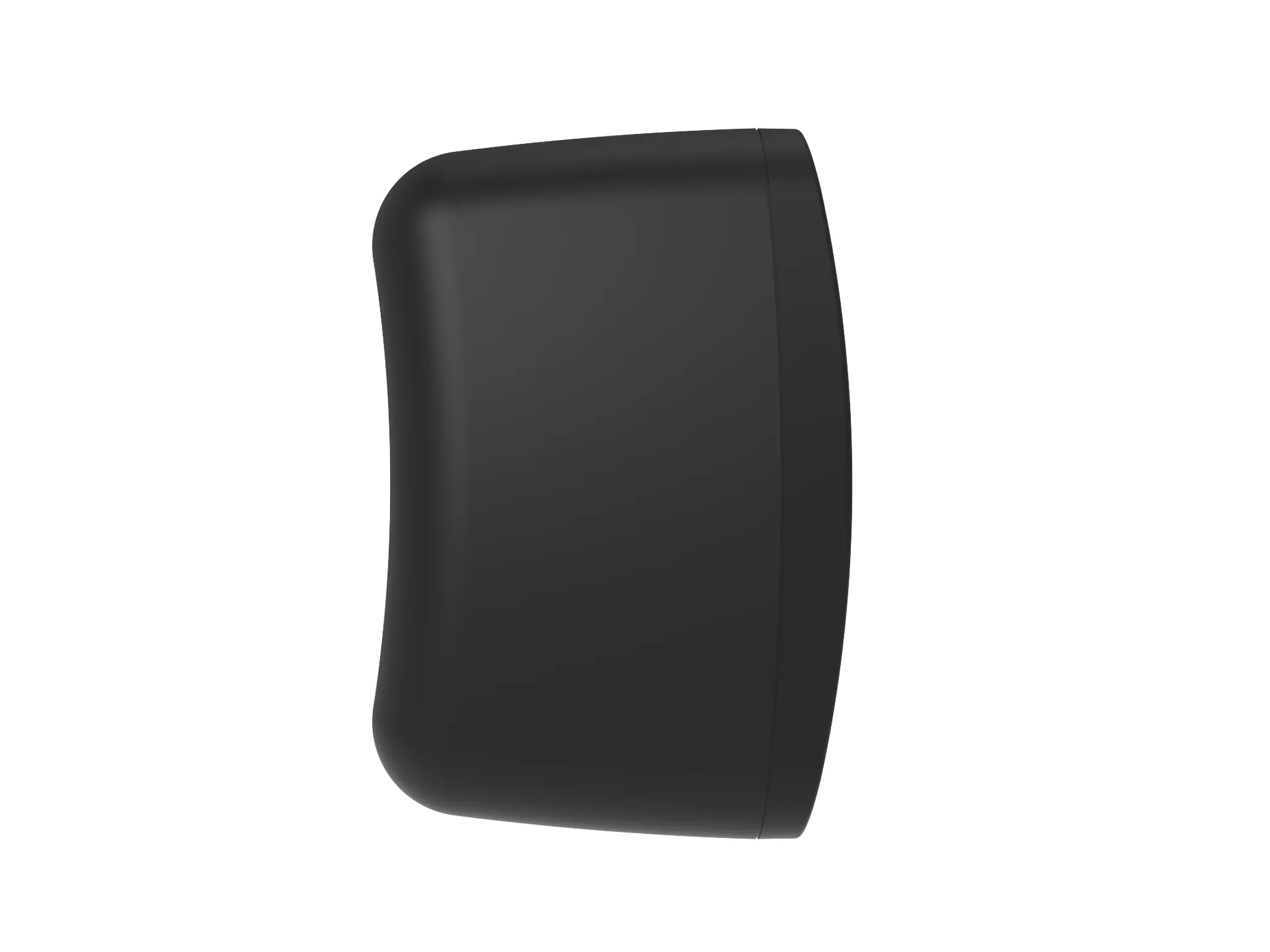

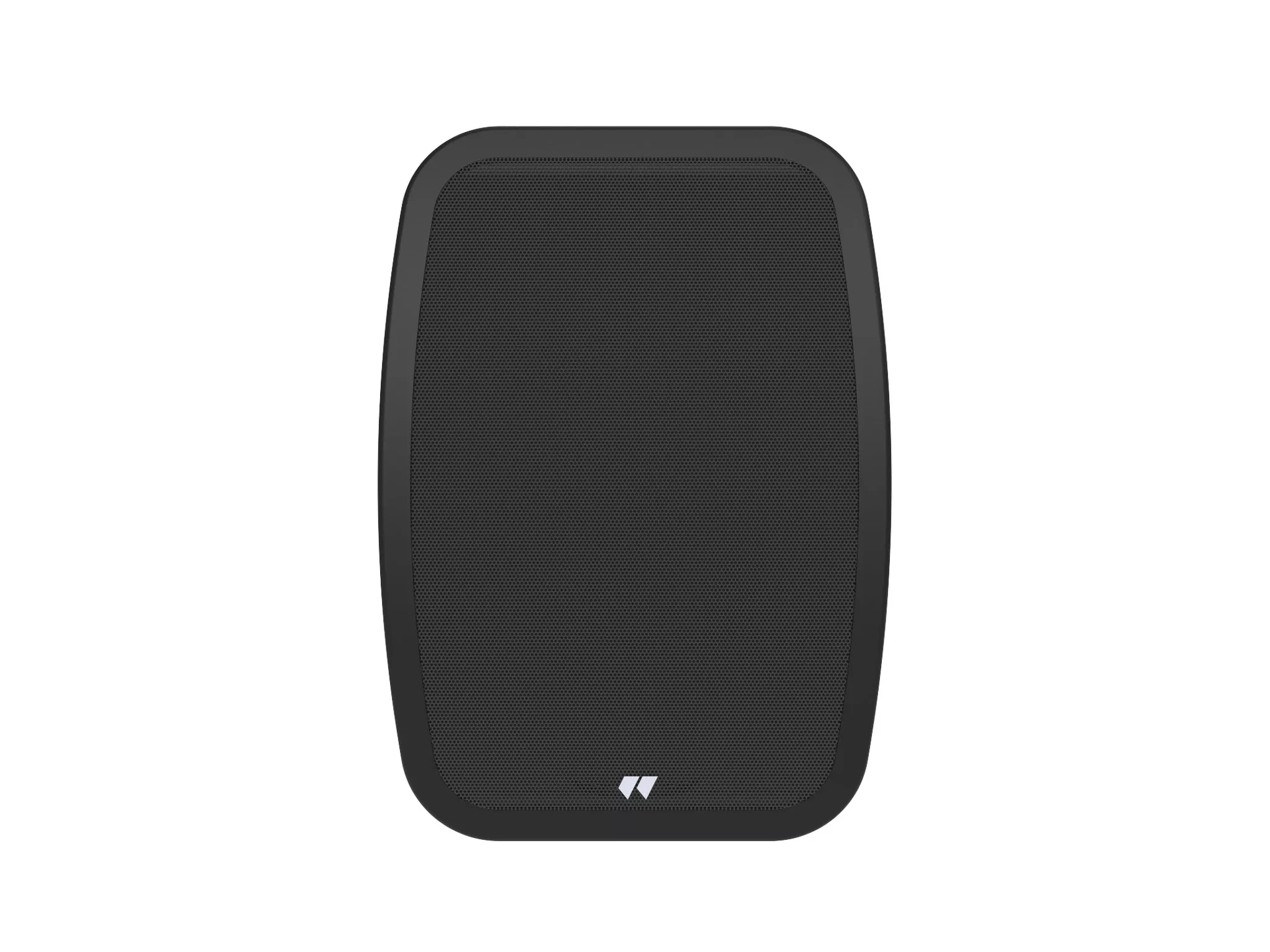

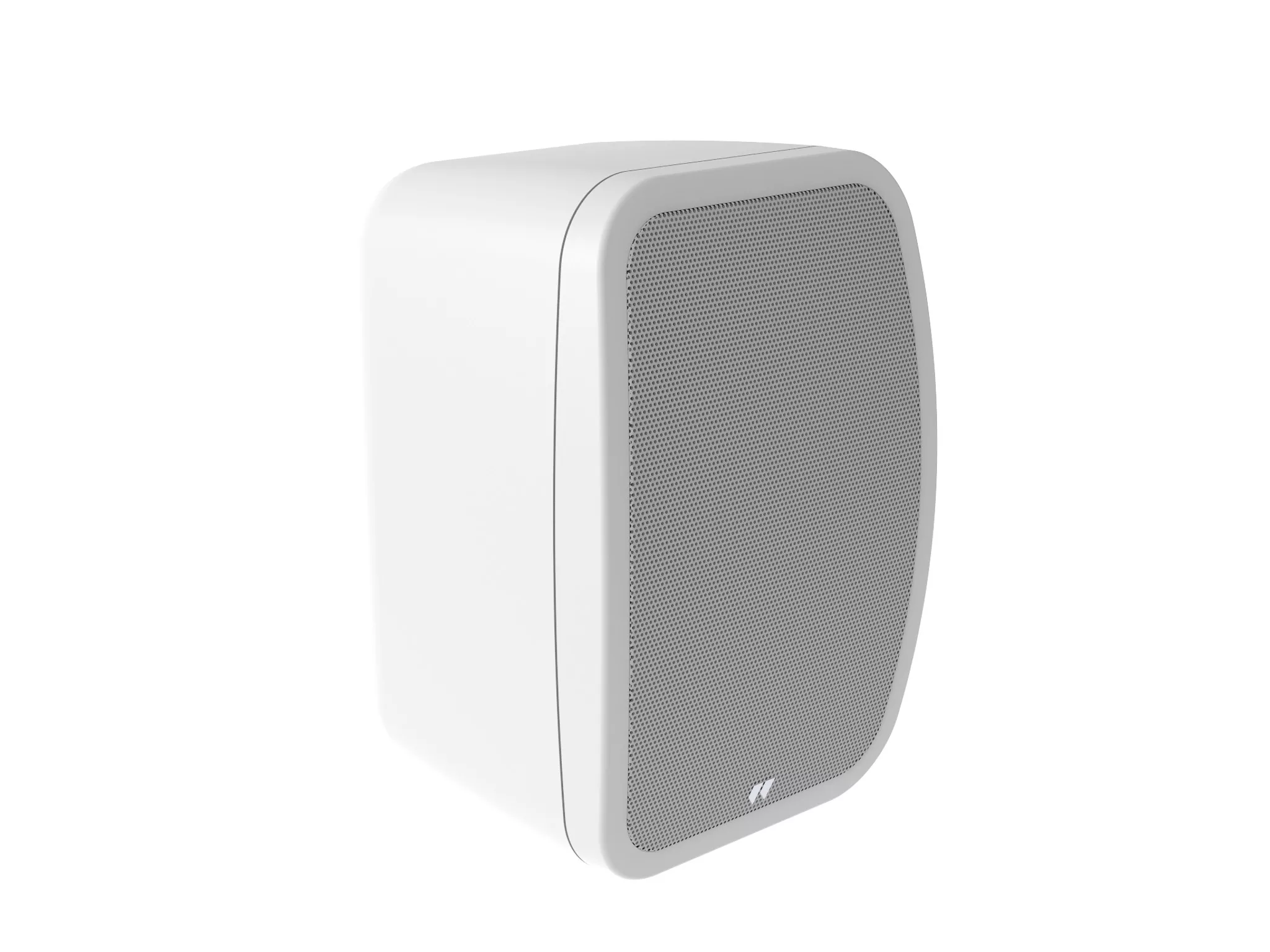

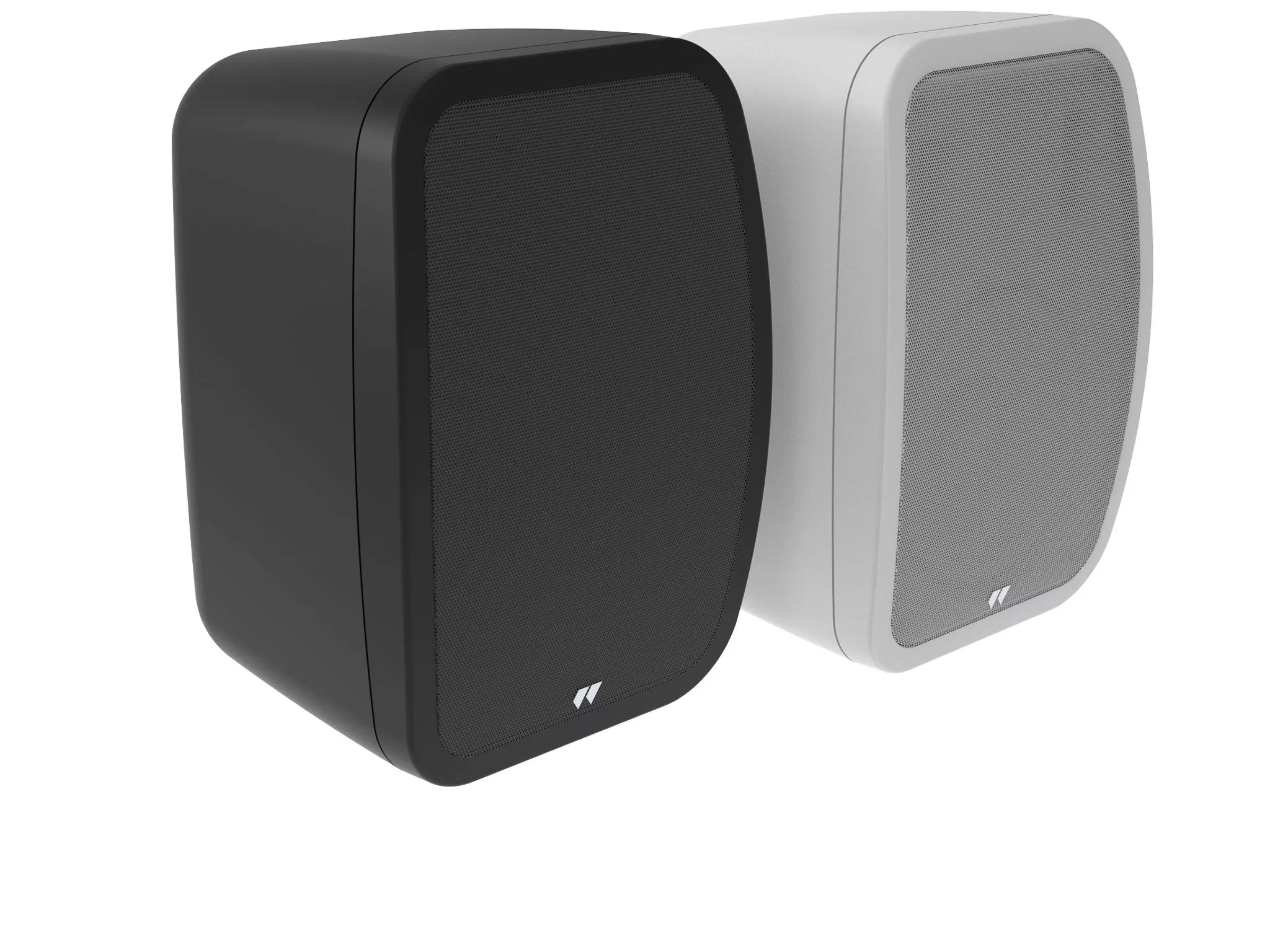

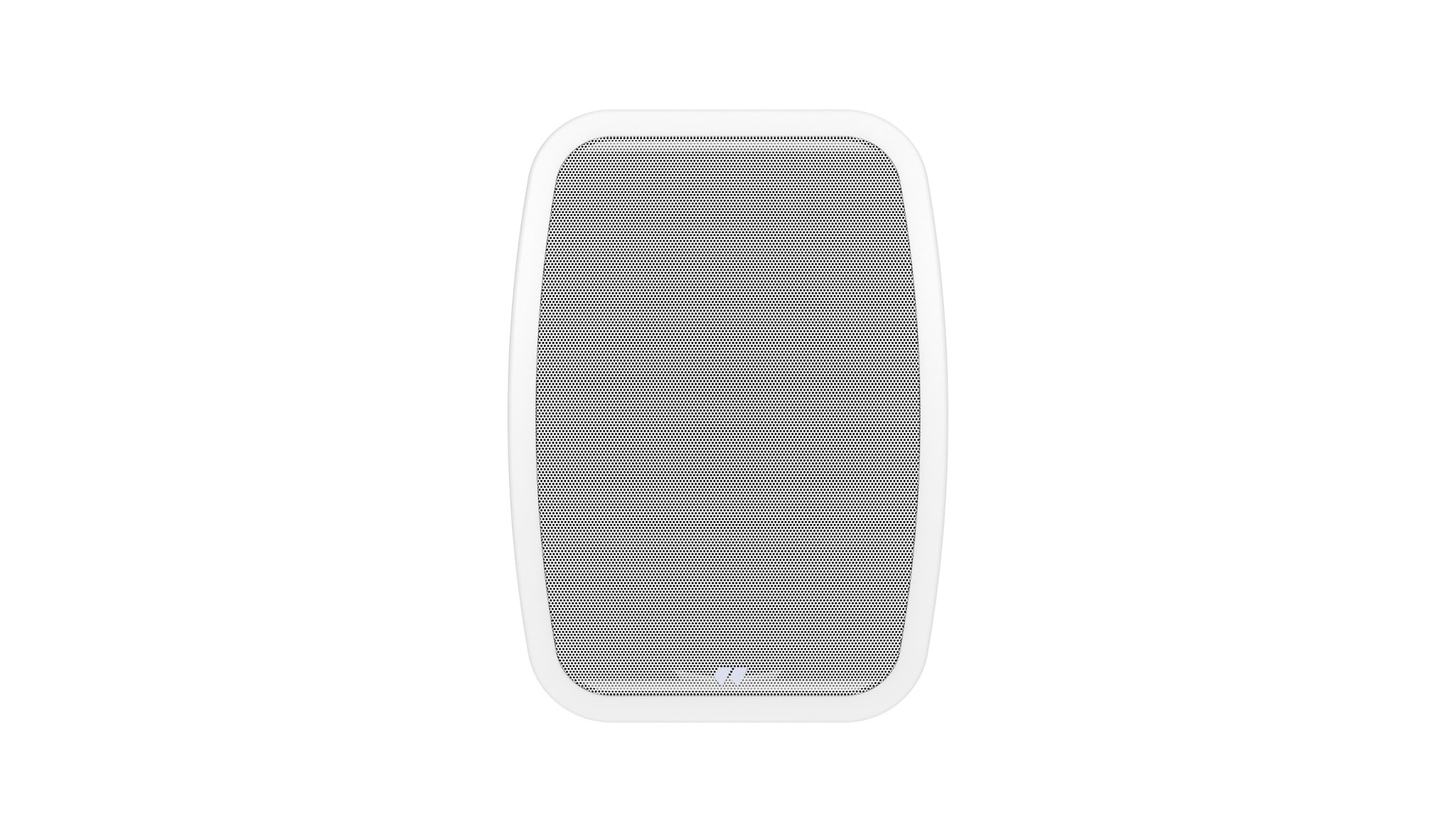

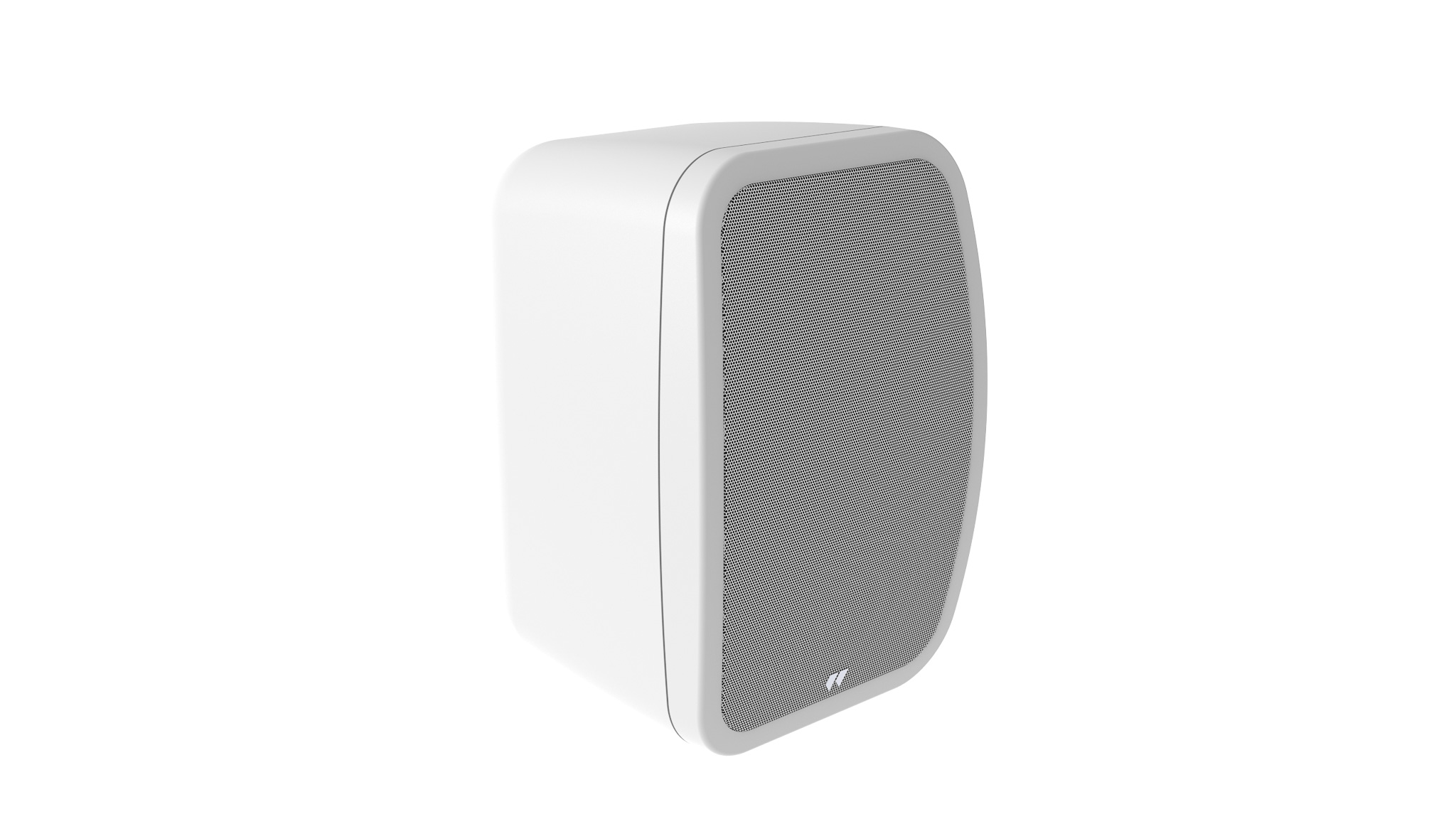

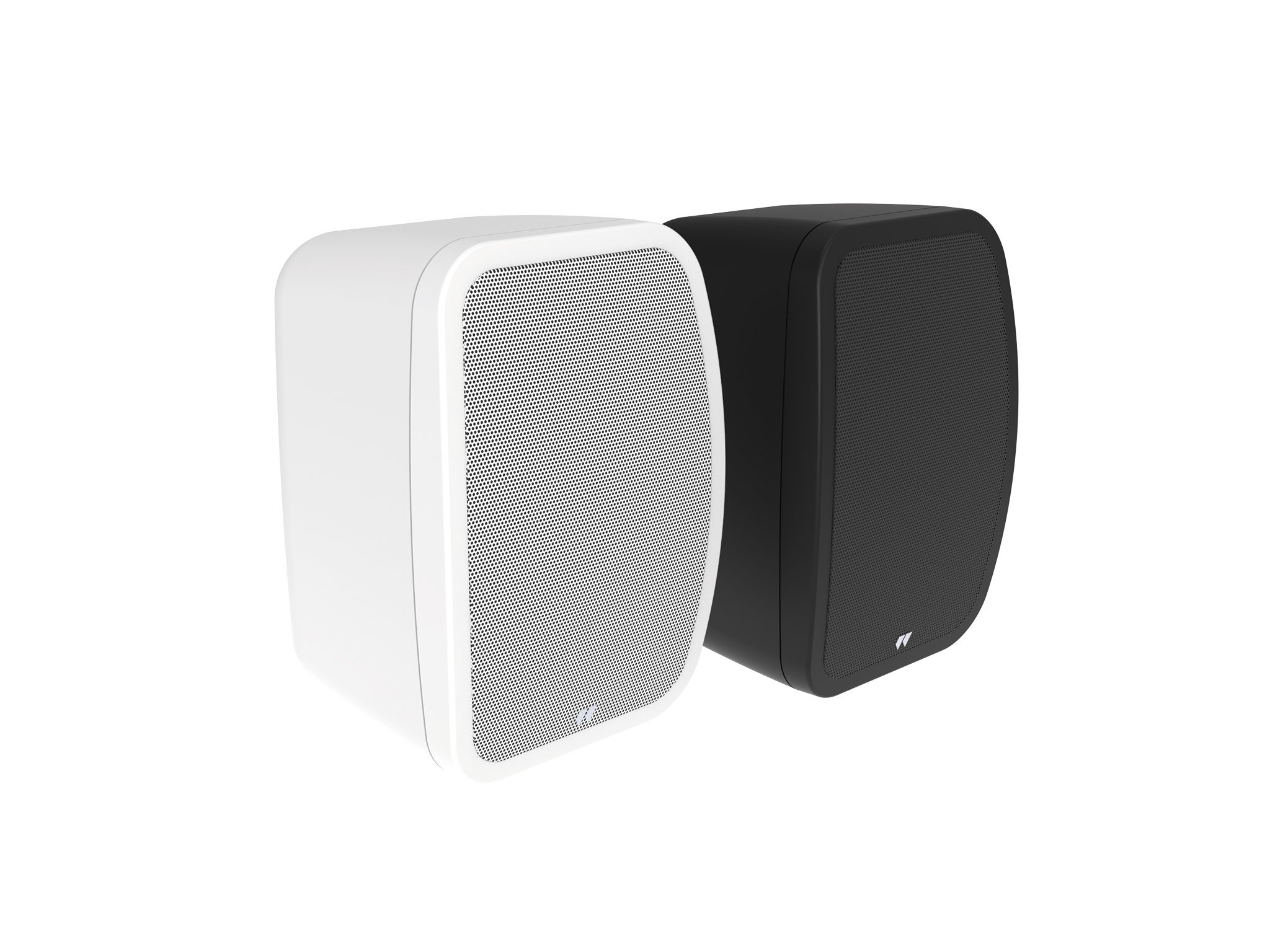

NEO 8 is a 2-way loudspeaker made of ABS plastic and white or black aluminum grille. It is made up of an 8'' speaker and a 1'' tweeter.

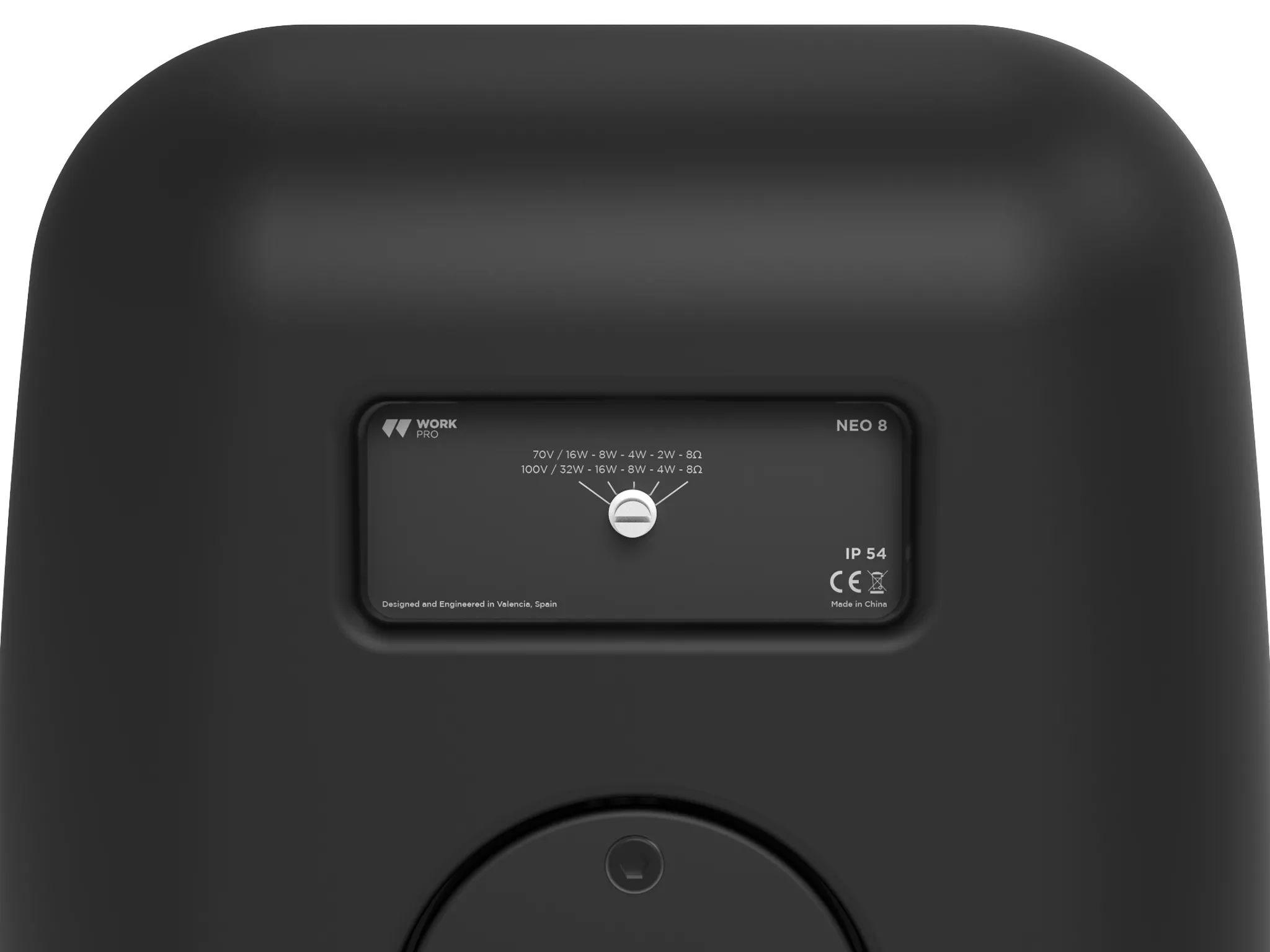

It stands out especially for the possibility of its use both in 70/100 V installations and in low impedance installations. When a loudspeaker is connected at low impedance the audio does not pass through the transformer in order to maintain a high level of quality.

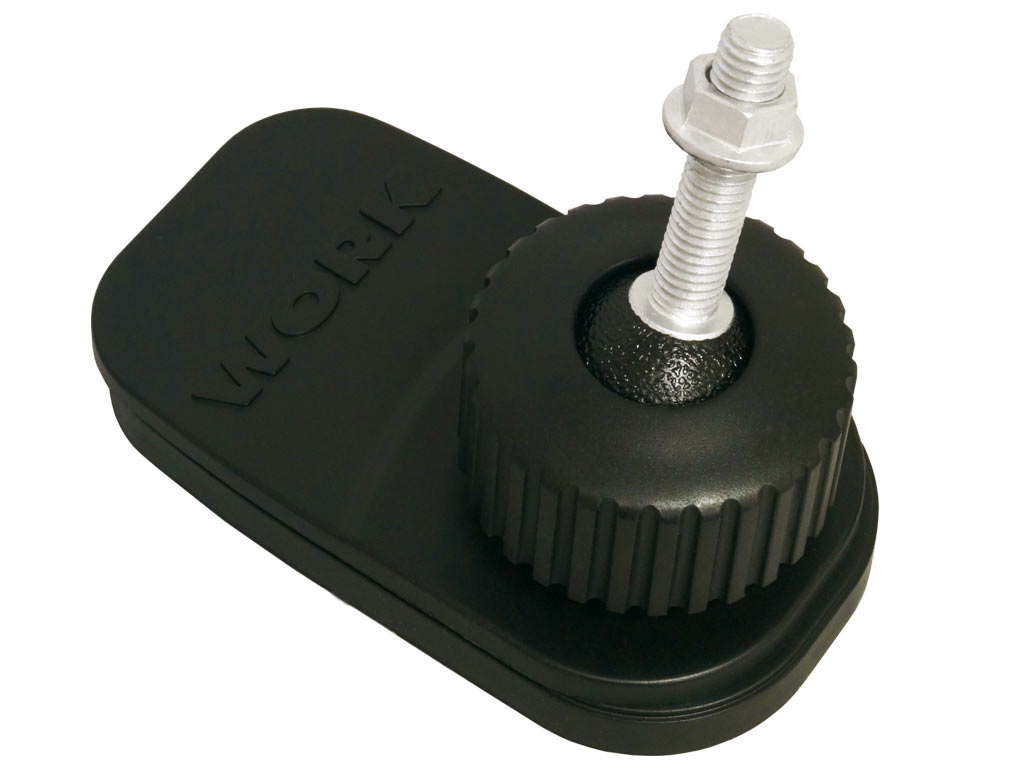

NEO 8 is also very simple and quick to install, thanks to the new bracket designed exclusively for this model, which also allows quick orientation of the box on both axes. It is sold in pairs (two passive loudspeakers).
Main information
- Suitable for high and low impedance installations.
- Wall brackets included.
- Price per couple.
- Black and white colour.
Product main measures (m)
0.24 x
0.26 x
0.37
| Type | 2 vías. Pasivo/ 2 ways. Passive |
| Low Impedance Power | 70 W @ 8 Ohm |
| L100V Power | 32 W @ 312 Ohm, 16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm |
| L70V Power | 16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm, 2 W @ 5 KOhm |
| Nominal Impedance | 8 Ohm |
| LF Transducer | Woofer 8" |
| HF Transducer | Tweeter 1" |
| Sensitivity (1W @ 1m) | 93 dB |
| SPL Max | 111 dB |
| Coverage Angle (H x V) | 120º x 90º |
| Frequency Range | 75 Hz - 20 KHz |

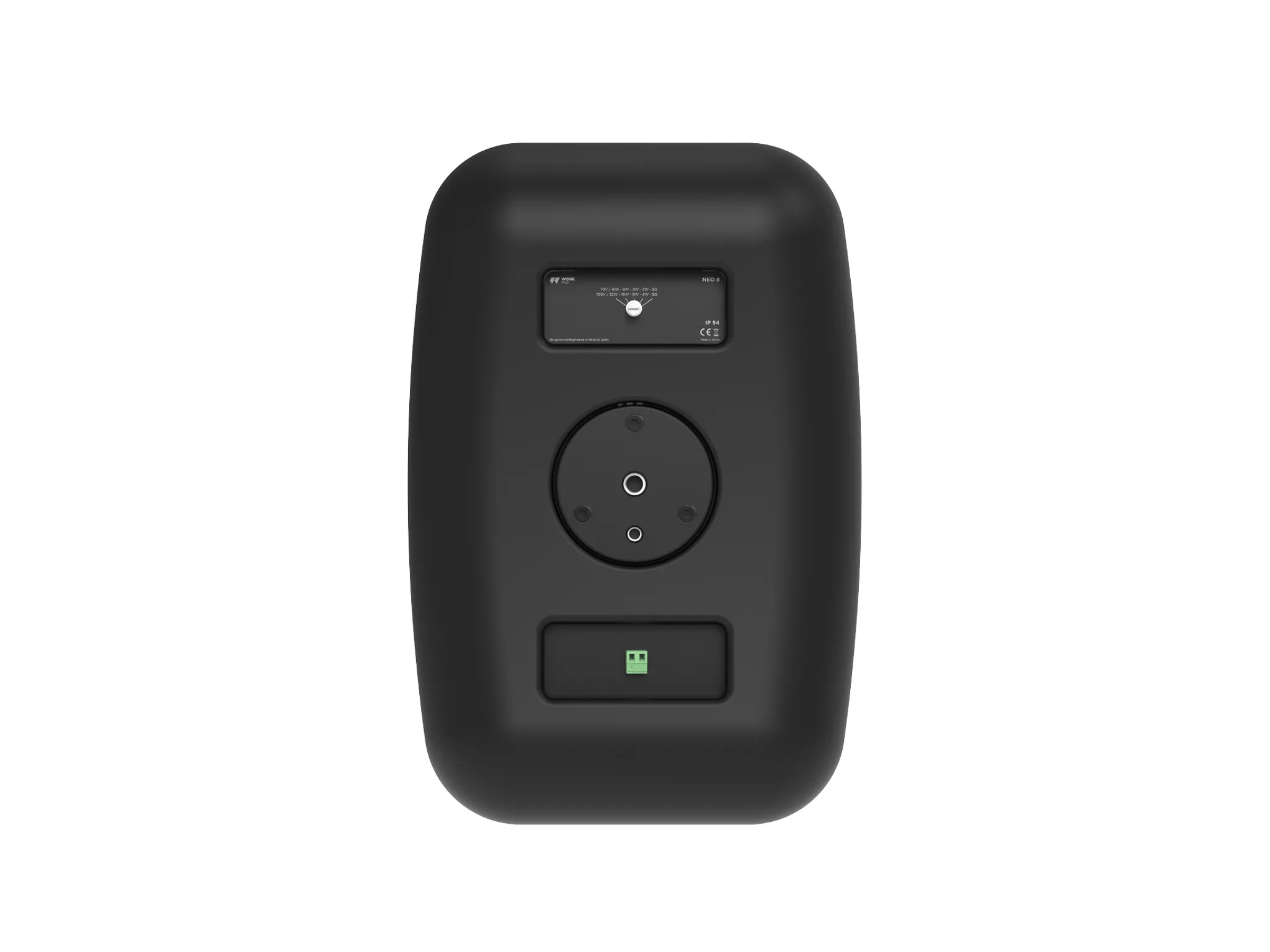

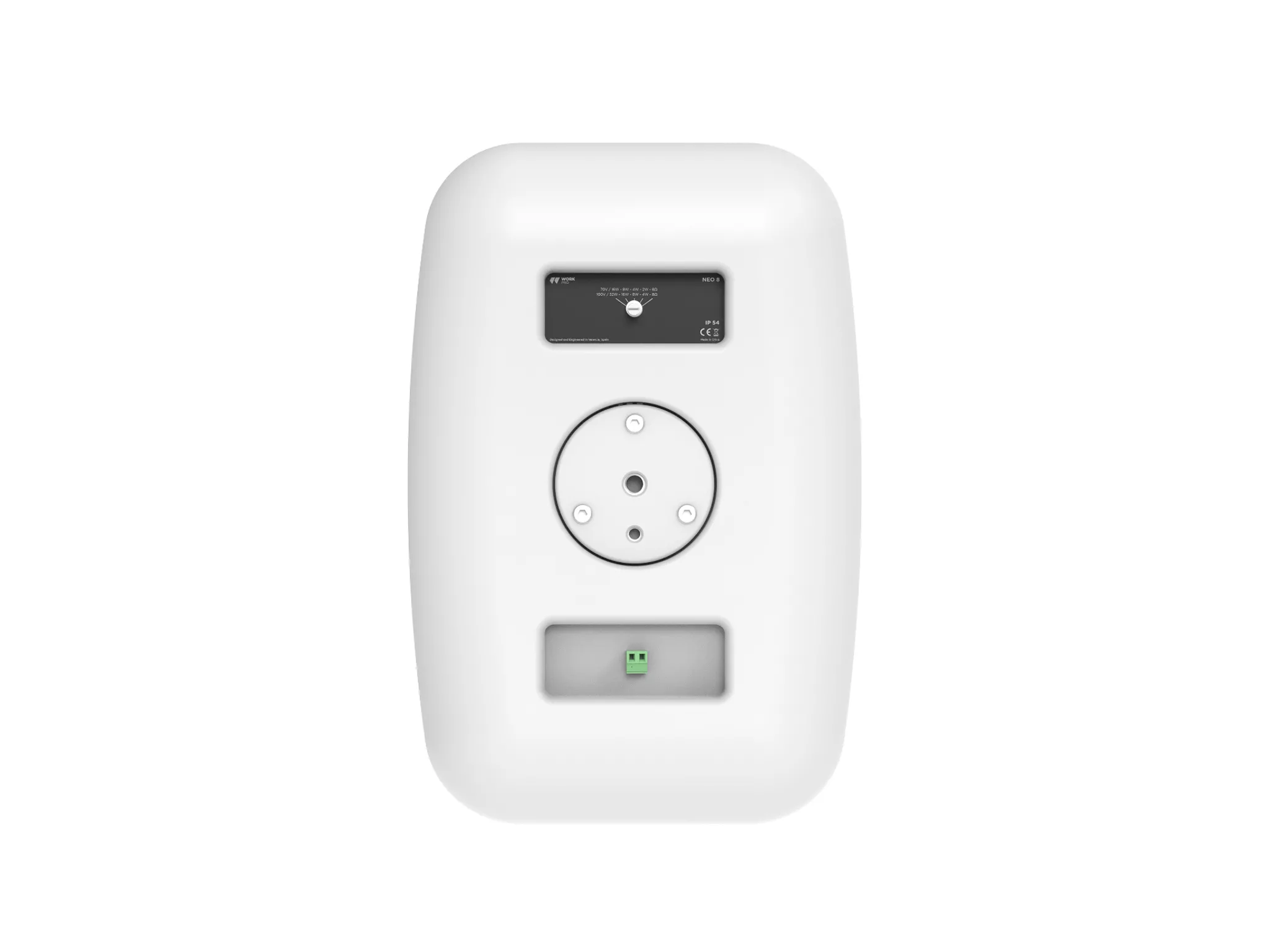

| Connections | Euroblock |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP54 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.24 | 0.26 | 0.37 | 4.95 |
| Box | 0.46 | 0.28 | 0.61 | 11.50 |
| Master Carton | 0.56 | 0.61 | 0.46 | 24.00 |
