discontinued
PA 60/2
#82MEG602
Amplifier with mixer. 60 W @ 8 Ohm, L25 / 70 / 100V. 3 Mic, 1 Line, 2 Aux, 1 Phone. Warning tones.

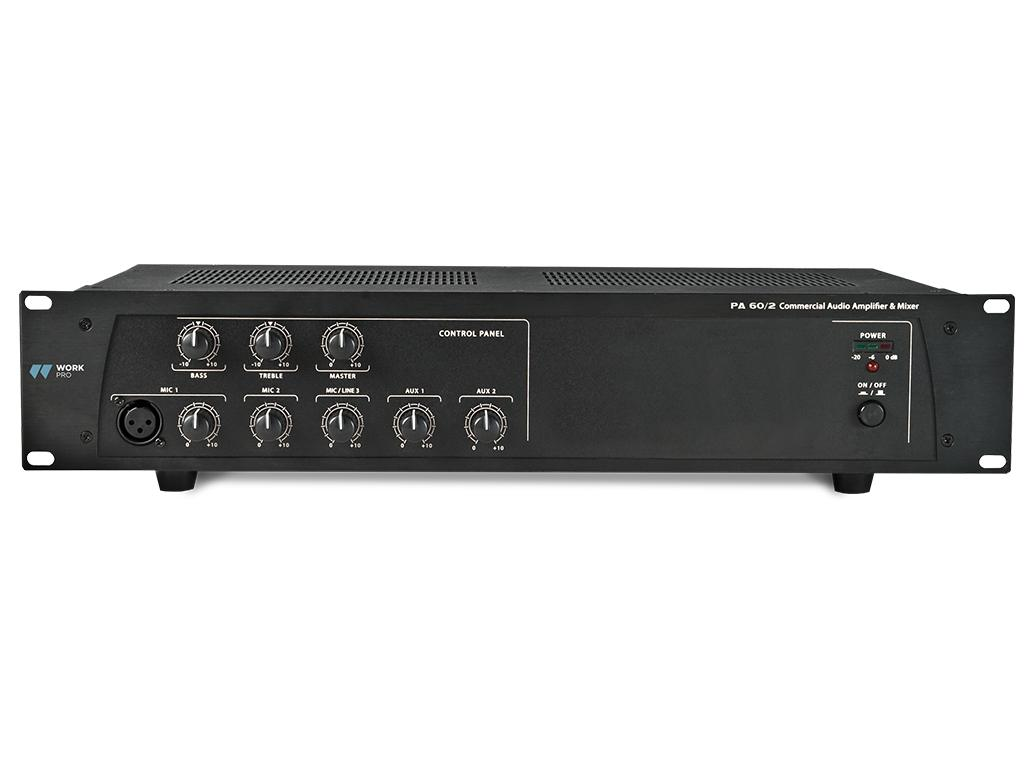

PA 60/2 is an installation amplifier with an integrated mixer. It integrates 6 input signals with its own gain control, master volume and high / low tone controllers. PA 60/2 is suitable for low impedance (8 Ohm) and high impedance (25/70/100 V line) speakers. For maximum security, they include a chime on / off switch, Tel / Emer connection for emergency communications, and 24 V dc terminals for emergency backups.
Main information
- 2 19-inch rack units.
- Terminals for emergency power.
- Telephone / emergency connection for paging and communications functions.
Product main measures (m)
0.26 x
0.48 x
0.09
| Type | Low impedance (4 Ohm), Line 25/70/100 V |
| Power | 60 W @ 8 Ohm, L25/70/100V |
| Input Sensitivity | Mic: 1 mV / 57.78 dBu, Line: 200 mV / -11.76 dBu |
| Input Impedance | Mic: 250 Ohm, Line/Aux: 47 KOhm, Pre out: 600 Ohm |

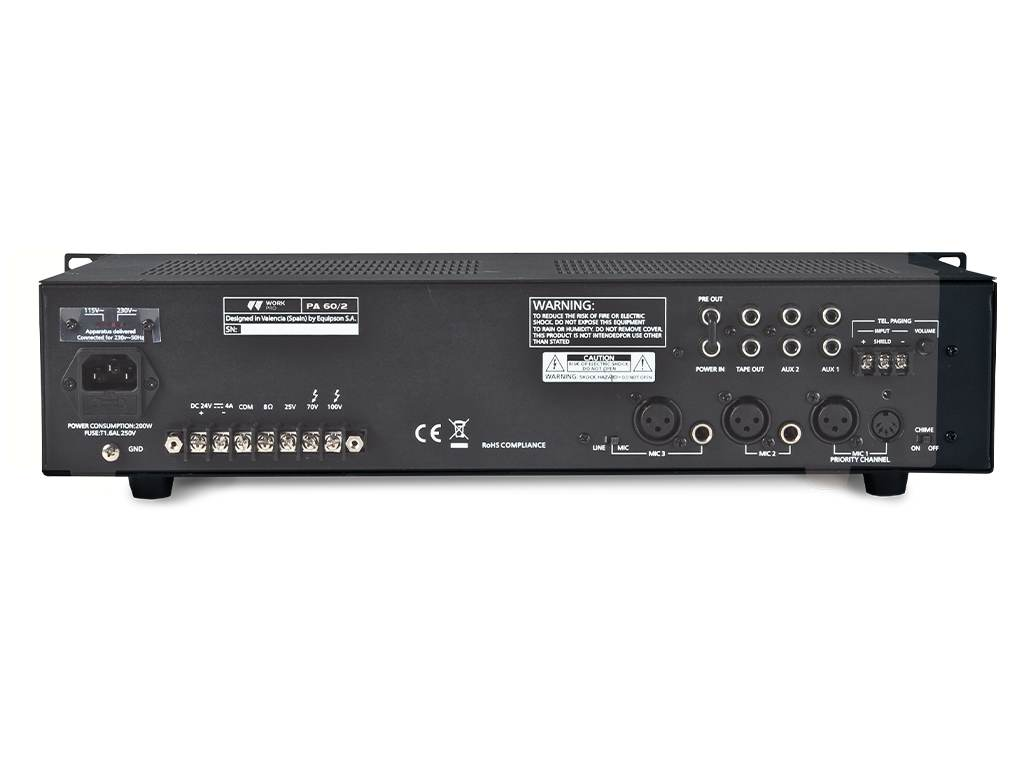

| Connectors | Mic: XLR 3 / 1/4 "Jack, Aux: RCA, Phone: Terminals, Pre out: RCA |
| Controls | Mic / Line Volume, Aux Volume, Master Volume, Tone Control (Treble, Bass) |
| Frequency Response | 50 Hz - 20 kHz +/- 3 dB |
| THD+N | Less than 5% at 1 kHz |
| S/N ratio | >75 dB (Line), > 60 dB (MIC) |
| Other functions | 2 tonos ("Ding-dong" tono para aviso previo a la comunicación)/ 2 tones (´Ding-dong´ tone for communication price notice) |
| Power supply | AC: 115 / 230 V - 50/60 Hz, DC: 24 V - 8 A |
| Consumption | 200 W |
| Dimensions | 430 x 88 x 260 mm. |
| Weight | 8 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.26 | 0.48 | 0.09 | 8.00 |
| Box | 0.55 | 0.34 | 0.17 | 9.00 |
| Master Carton | 0.57 | 0.35 | 0.36 | 18.86 |
